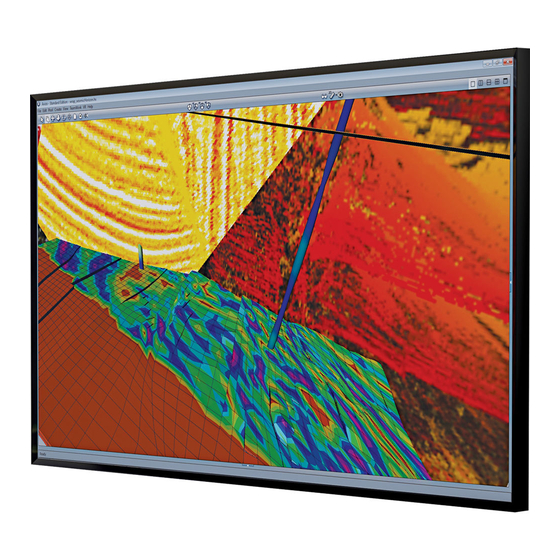

84 inch lcd panel monitor
Hide thumbs Also See for QuadHD84:
Table of Contents

Advertisement

Quick Links

Download this manual
QuadHD84
User Manual
020-000671-01

Advertisement

Table of Contents
loading

Related Manuals for Christie QuadHD84

Summary of Contents for Christie QuadHD84

  • Page 1 QuadHD84 User Manual 020-000671-01...
  • Page 2 Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose. Christie will not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or use of this material.

  • Page 3: Important Precautions

    - Electrical shock can damage the product. n As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 4 Install the display where no Electromagnetic Interference occurs. n Keep the display away from direct sunlight. - The display can be damaged. n Do not place the display on the floor. - Small children and others may trip over it. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 5 Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 6 Avoid combination of background and character with large different luminance Note: 1) Abnormal condition just means conditions except normal condition. 2) Black image or moving image is strongly recommended as a screen saver. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 7: Included Accessories

    If an accessory is missing, please contact the dealer where you purchased the display. v The accessories included may differ from the images shown below. Remote Control & Power Cord Quick Start Guide Batteries (AAA × 2) CD-ROM (User’s Manual) QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 8: Name And Function Of The Parts

    * The image shown in the user’s guide could be different from the actual image. Front View Item Description Indicate power on or sleep mode status. Power indicator - Power on: LED lights up. - Power off: LED off. Receive incoming remote control commands. IR Receiver QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 9: Rear View

    Connect to a PC’s line / audio port. Port Connect to an external device, such as a VCR, STB, or Component/ a DVD player. Video Input Ports Connect an external audio system or headphones. Stereo Audio Line Out QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 10 Connect an HDMI equipment such as a computer, QHD60 Ports camcorder, or multimedia player which are able to output 4x HDMI with individually 1080p@60Hz resolution and compose to a QHD@60Hz resolution. Connect an OPS module device. OPS Module Slot QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 11: Using The Remote Control

    1. Open the battery cover. 2. Install the batteries matching the correct polarity. • Install two 1.5V AA batteries. 3. Close the battery cover. • Dispose the used batteries in the recycle bin to prevent environmental pollution. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 12: Mounting On A Wall

    This display should be installed by at least two adult persons. Attempting to install this display by only one person may result in danger and injuries. v Refer the installation to qualified technicians. Improper installation may cause the display to fall or malfunction. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 13: Installing The Display On A Wall

    The manufacturer accepts no liability for installations not performed by a professional technician. v The mounting means should be strong enough to bear the weight of the display. v The wall mounting bracket should have UL or related approval. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 14: Connecting To External Devices

    (High-bandwidth Digital Content Protection). Some devices require HDCP in order to display HD signals. HDMI HDMI signal cable Display VCR/DVD/Set-top Box AUDIO HDMI HDMI to DVI signal cable Display VCR/DVD/Set-top Box Note: Dolby Digital is not supported. AUDIO QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 15 B. Connecting with a D-sub(VGA) Signal Input Cable Audio cable AUDIO IN RGB (PC) Display Macintosh Adapter Use only the standard Macintosh adapter. Do not use other adapter type that is compatible with different signaling system. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 16: Audio Out Connection

    Optical audio DPTICAL cable Display Audio amplifier Component Connection VCR/DVD/Set-top Box Display Pb/Cb Pr/Cr AUDIO COMPOSITE [GOOD] Component AV cable Composite (Video) Connection VCR/DVD/Set-top Box Display Pb/Cb Pr/Cr AUDIO COMPOSITE [GOOD] Composite AV cable QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 17: Usb Connection

    Connecting to External Devices USB Connection USB Flash Drive Display Ethernet Connection ETHERNET Network Ethernet (RJ-45) cable Display Power Connection Rear side of the display INPUT MENU Power outlet Power cord QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 18 This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 19: Osd Menus

    - Decrease the volume level. Volume Down - Adjust the settings (decrease the value). Turn the display on/off. Power Switch the input source. Input Display/hide the OSD (on-screen display) menu or Menu return to the previous menu. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 20: Menu Options

    Set the timer to turn the display off at the preset time. Sleep Timer Note OSD (On Screen Display) The OSD function enables you to adjust the screen status conveniently since it provides graphical presentation. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 21: Adjusting On-Screen Display (Osd) Settings

    Press the OK or u button to enter the submenu. Use the t/u button to adjust the setting/select the option. Use the OK button to confirm the setting. Press the MENU button to return to the previous menu/exit the OSD menu. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 22: Input Menu

    • You can also access the Input menu by pressing the INPUT button on Note the remote control. • The available menu options varies depending on the input source. • If the menu items are appears in gray, this indicates that those functions are not available. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 23: Picture Menu

    • Custom: User can use the user-defined settings as they wish. • Cinema: This mode is normally used in movie. Soft image can be seen in this mode. The picture is somewhat darker than other mode. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 24 Adjust the color intensity of the picture. Color Adjust the picture hue. Tint Adjust the sharpness of the edges of elements in the picture. Sharpness “Sharpness” option is not available if the input Note source is PC. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 25 • “Size & Position” menu is not available if the input source is HDMI- Note QHD60. • The available menu options varies depending on the input source. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 26 • Red Offset / Green Offset / Blue Offset: Adjust the red / green / blue offset settings to your preference. • Reset Color Temperature: Reset all Color Temperature settings to the factory default settings. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 27 • Only “Local Dimming” and “MEMC” options are available if the input source is HDMI-UHD60. Reset all Picture settings to the factory default settings. Reset Picture Settings Select OK to reset all settings. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 28: Audio Menu

    Adjust the sound balance between the left and right speakers. Balance Adjust to match the movements and the lips of the person Lip Sync talking on the screen. Turn the built-in speakers on or off. Speakers QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 29 Press the t/u button to select the option and select OK to enter the submenu. ii. Press the p/q button to adjust the setting. Reset all Audio settings to the factory default settings. Reset Audio Settings Select OK to reset all settings. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 30: Setup Menu

    “Device Search” option is only available if CEI Note function is enabled. Select the on-screen menu language. Menu Language Enable or disable the power indicator on the front of the display Power Indicator when the display is turned on. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 31 (via RS-232C) for display. Enter the ID number and select Set to confirm the setting. Display the system information of the display. System Information Select System Information to view the system information. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 32 OSD Menus Setup Menu (continue) Menu Option Description Return the display parameters on all menus to the factory Reset All default settings. Settings Select OK to reset all settings. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 33 Alt. DNS: Enter the respective network parameters. • Connect: Verify the network connection. • Check with your Information Technology Provider Note for the correct setting. • Be sure the RJ-45 cable is properly connected. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 34: Wide Menu

    • “Wide” menu is not available if the input source is 4k2k. • The option is either “Panoramic” or “Stretch” depend on input screen format: - Panoramic: Standard screen format (ex. 4:3) - Stretch: Wide screen format (ex. 16:9) QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 35: Sleep Timer

    OSD Menus Sleep Timer Set the timer to turn the display off at the preset time. You can also access the Sleep Timer menu by pressing the SLEEP Note button on the remote control. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 36: Multimedia Mode

    5. Select the media type of the file you wish to play and press the OK button. 6. Use the p/q/t/u button to browse the files, folders or menu options and press the OK button to confirm. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 37: Playback Music

    OK button to skip to the previous song. n Select Sort to specify the sorting method. n Select View to change the type of file listing. n Select Browser Photos to playback photos. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 38: Watching Videos

    Press the button to rewind the video playback. n Press the button to stop the playback. n Select Sort to specify the sorting method. n Select View to change the type of file listing. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 39: Viewing Photos

    - Shuffle: Enable/Disable the shuffle function. - Speed: Set the interval time between each slide display. - Effect: Select the transition effect between each slide displays. n Select Browser Music to playback songs. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 40: Changing Display Mode

    • The available menu options varies depending on the input source. Note • The option is either “Panoramic” or “Stretch” depend on input screen format: - Panoramic: Standard screen format (ex. 4:3) - Stretch: Wide screen format (ex. 16:9) QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 41: Troubleshooting

    Adjustment in Size & Position menu to is blue but the screen appears automatically select the optimal screen extremely dark. status that fits the current mode. If the adjustment is not satisfactory, use the Fine Tune menu. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 42: After-Image Appears On The Screen

    [1] Press MENU. Select Setup > Reset All Settings. [2] Enter the password. [3] Remove the AC power cord and wait for 10 seconds. [4] Connect the AC power cord and turn on the display. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 43: Specifications

    HDMI, HDMI QHD60, RGB (VGA), RS-232C, RJ-45, Component/ Input Composite Connector Operational Condition Temperature: 0°C to 35°C, Humidity: 20% to 90% Environmental Conditions Temperature: -20°C to 60°C, Humidity: 10% to 90% Storage Condition QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 44 60Hz 16:9 1920 x 1080 P 50Hz 1920 x 1080 P 59.94Hz 1920 x 1080 P 60Hz 16:9 1920 x 1080 P 23.98Hz 1920 x 1080 P 24Hz 1920 x 1080 P 30Hz 16.9 QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 45 1920 x 1080 I 60Hz 720 x 576 I 50Hz 720 x 576 P 50Hz 1280 x 720 P 50Hz 1920 x 1080 I 50Hz Composite Mode – Preset Mode Mode No. Resolution 480i (NTSC) QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 46: Daisy Chain Connection

    Baud Rate: 115200 a Data Length: 8 Bit a Parity Bit: None a Stop Bit: 1 Bit a Flow Control: None a Communication Code: Hex Code a Use a DB 9 Pin Cable QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 47 Switch (Remote control or Front key) Display Input to HDMI will cause the HDMI source device to be turned on. System Standby Turning off the Display will cause the HDMI Devices in the CEC net to be turned off. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)

  • Page 48: Controlling The Multiple Product

    Payload 0x40 : DVI1 0x50 : HDMI1 0x51 : HDMI2 0x52 : HDMI3 0x60 : Composite1 0x70 : YPbPr1 0x80 : Music Port 0x90 : TV1 0xA0 : HDMI- UHD60 0xB0 : OPS QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 49 (0xCC) XOR (0x33) XOR (0x01 = Set ID) XOR (0x00) XOR (0x04) XOR (0x10) XOR (0x01 = ON) XOR (0x00) XOR (0x00) = 0xEB * Full list of RS-232C / RJ-45 commands available on request. QuadHD84 User Manual 020-000671-01 Rev. 1 (10-2013)
  • Page 50 Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual(CD) in an acces- sible place for future reference. The model and serial number of the SET is located on the back and one side of the SET.
  • Page 51 Corporate offi ces Worldwide offi ces USA – Cypress Australia Eastern Europe and India Singapore ph: 714-236-8610 ph: +61 (0) 7 3624 4888 Russian Federation ph: +91 (080) 6708 9999 ph: +65 6877-8737 ph: +36 (0) 1 47 48 100 Canada –...
