Installation and Setup Guide
020-100329-15

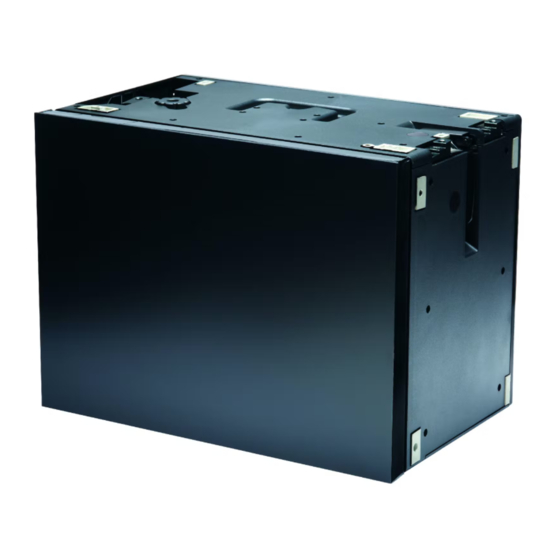

Christie MicroTiles

Advertisement

Table of Contents
loading

Related Manuals for Christie MicroTiles

Summary of Contents for Christie MicroTiles

  • Page 1 Installation and Setup Guide 020-100329-15 Christie MicroTiles...
  • Page 2 The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.

  • Page 3: Table Of Contents

    Installing the MicroTiles canvas........
  • Page 4 Powering on the MicroTiles array........

  • Page 5: Product Overview

    Front End Formatter Board (FEFB), IR sensor, internal Low Voltage Power Supply (LVPS) and cooling system. An array of MicroTiles requires at least one ECU (master ECU), acting as a main control unit and input interface for image content distribution through the array.

  • Page 6: Product Documentation

    Product documentation For installation, setup, and user information, see the product documentation available on the Christie Digital Systems USA Inc. website. Read all instructions before using or servicing this product. 1. Access the documentation from the Christie website: •...

  • Page 7: Product Labels

    Learn about the labels that may be used on the product. Labels on your product may be yellow or black and white. General hazards Hazard warnings also apply to accessories once they are installed in a Christie product that is connected to power. Fire and Shock Hazard To prevent fire or shock hazards, do not expose this product to rain or moisture.

  • Page 8: Additional Hazard Labels

    (for example, an eye loop, magnifier or microscope) from a distance of less than 220mm may pose an eye hazard. MicroTiles is a Risk Group 2 source of visible LED radiation. Important safeguards To prevent personal injury and to protect the device from damage, read and follow these safety precautions.

  • Page 9: Ac Power Precautions

    Front End Formatter Board (FEFB), IR sensor, internal Low Voltage Power Supply (LVPS) and cooling system. An array of MicroTiles requires at least one ECU (master ECU), acting as a main control unit and input interface for image content distribution through the array.

  • Page 10: Rear Projection Screen

    The screen is designed to display a sharp image formed close to the screen edge to allow for image blending from screen to screen when tiled in an array. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 11: External Control Unit

    For more complex arrays, multiple ECUs can be used. The ECU is able to communicate with all tiles in the array and with any other ECU using Christie’s proprietary HSSL interface. Each tile and ECU has a unique IP address, allowing full communication between tiles and ECUs across the network.

  • Page 12: Standard Components

    MicroTiles, contact your dealer. In most cases, servicing is performed on-site. If you have purchased MicroTiles, keep a copy of the packing slip shipped with your purchase for your records. The packing slip contains the serial numbers for each tile. The serial number can also be found on the license label located on the back of the tiles, as well as on the front chassis.

  • Page 13: Y-Cords And Line Cords For D100 And E100

    Russia. It does not include line cords. Regional line cords are shipped separately by Christie for the display unit (D100) and the ECU (E100), for the regions listed in the table. This list is subject to change and is for reference only.

  • Page 14: Optional Accessories

    Sample ordering quantities for a 9x9 array This is a sample bill of materials for a floor mounted 9x9 MicroTiles array, which consists of 81 tiles and three ECUs. Part number Part description Qty.
  • Page 15 108-384106-XX C5 Line Cord for ECUs One per ECU Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 16: Installation And Setup

    Power up each tile to ensure it is functioning. Check the LED on the back of the tile. A green light indicates power is enabled. • Do not remove the lens guard from the MicroTiles or dust cap from the lens until the canvas construction is complete. Cable and ECU layout and design Before an array is constructed, it is important to plan the design layout of the canvas to make sure that ECU placement and the cabling layout supports the overall canvas design objectives.
  • Page 17 5mm hex key (not provided) • Light seal trim • Line cords for Display Units • Line cords for ECU Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 18: Installing The Microtiles Canvas

    Installation and Setup Installing the MicroTiles canvas Perform the following tasks when installing the MicroTiles canvas. 1. Apply the light seal trim (on page 18). 2. Mount leveling feet to the base structure (Optional) (on page 18). 3. Assemble the first row of tiles (on page 19).

  • Page 19: Assembling The First Row Of Tiles

    Ensure all latches are open before assembling the array. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 20 1. Open the latch on the top of the first tile. 2. Attach the first tile in the array to a left and center leveling foot. 3. Insert the three vertical screws that are shipped with the MicroTiles into the three positions indicated in the image above (C).
  • Page 21 21. (Optional) Fasten the grilles to the leveling feet. 22. Add the second row of tiles. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 22: Adding Additional Rows Of Tiles

    10. It is recommended that screens are installed during the installation in order to check seam gaps, rather than waiting until the array is completely constructed. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 23: Unpacking The Screens

    Installation and Setup 11. Anchor the MicroTiles using the rear mounting points or bolting the leveling feet into the base structure so the weight of each tile is individually supported. A mounting bracket can be purchased from Christie (P/N: 123-107109-xx). For details, see Christie MicroTiles Specification and Application Guide (P/N: 020-100334-xx).
  • Page 24 Notice. If not avoided, the following could result in property damage. • Excessive force or repeated screen removal may damage the screen. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 25: Connecting The Cables Between The Ecus And Microtiles

    5. To remove the screen, carefully pull on the screen removal tool. Connecting the cables between the ECUs and MicroTiles Connect the cables row by row when an array is set up near a wall. When setting up an array where the back is exposed, first set up the entire array and then connect the cables.

  • Page 26: Connecting Sources

    99% of the heat generated is exhausted out the back and should be accounted for at the rear of the array. A sufficiently sized unobstructed space must be left at the back of all MicroTiles arrays to allow for air flow and cooling, to make sure that the intake air of each tile is within the operating range of 5-40°C (41-104°F) for the display unit.

  • Page 27: Displaying Content On The Canvas

    All firmware can be updated through this port. This interface supports 10BaseT and 100BaseT. A web client interface is available through this port and is used as the primary human interface for remote PC based control of a MicroTiles installation. There are two methods of connecting through this port: •...

  • Page 28: Connecting To Power

    WebUI to control the video content. Connecting to power For each MicroTiles array, Christie provides the necessary line cords required for proper power distribution in your country of origin. Warning! If not avoided, the following could result in death or serious injury.

  • Page 29: Installing The Power Connection Security Clip

    If connecting the 90° connection to the tile, ensure the clip locks from the left side. • If using the standard connector, ensure the clip locks from the right side. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 30: Installing The Y-Power Cord Retention Clip

    To install, snap the clip onto the joint between two Y-power cords. Powering on the MicroTiles array To turn on the display, connect the MicroTiles array to a power source. Warning! If not avoided, the following could result in death or serious injury.

  • Page 31: Powering Off The Microtiles Array

    2. Move the power bar switch to the OFF position or disconnect the power plug from the outlet. Disassembling a MicroTiles array Perform the following steps when disassembling the MicroTiles canvas. 1. Power down the array and disconnect all power cables and display port cables.

  • Page 32: Configuring The Array

    Configuring the array MicroTiles can be controlled remotely, typically at a controller such as a PC, through a web user interface (WebUI) on an Ethernet network. If there are concerns about network security, run the WebUI on a local area network only and install a firewall.

  • Page 33: Creating A Subarray

    3. To change the width and height of the subarray use the scroll bars to adjust the X/Y Offsets. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 34: Prioritizing The Ecus In The Array

    All blue colored tiles indicate they have been manually mapped and non-mapped tiles are gray. All manually mapped tiles are displayed in the Manually Mapped Tiles table. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 35: Viewing The Array As A Wire Map

    The left column identifies the coordinates of the output tile and, and the right column is the input tile. 3. To save the wire map as a .cvs file, click Export. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 36: Creating A Custom Video Resolution

    Ensure the date and time match your location. 1. Select Configuration > Date and Time. The date displayed in the MicroTiles System Date and Time field is processed from the ECU, while the date in the New Time field is updated to the time on the computer.

  • Page 37: Powering All Tiles On Or Off Through The Webui

    1. Select Configuration > Save & Restore > Restore Factory Settings. 2. Click Restore. 3. In the confirmation dialog, type CONFIRM in all capital letters and click OK. Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 38 Configuring the array All defaults are restored. 4. (Optional) Restore the ECU and tile settings from a backup (on page 37). Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 39: Microtiles Specifications

    Learn the power requirements for MicroTiles. Display unit Value Input rating 100-240 Vac, 1.3 - 0.54 A, 50/60 Hz. Maximum nine MicroTiles on a single circuit (10 A total) Power consumption per tile 70 W (typical) Heat load per tile 239 BTUs/hr (typical)

  • Page 40: Environmental Specifications

    IEC 62471:2006 (First Edition) Electro-magnetic compatibility Emissions • FCC CFR47, Part 15, Subpart B, Class A - Unintentional Radiators Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 41: Environmental

    (01/2016) on the control of pollution caused by electronic information products, hazardous substances concentration limits (GB/T 26572 - 2011), and the applicable product marking requirement (SJ/T 11364 - 2014). Christie MicroTiles Installation and Setup Guide 020-100329-15 Rev. 1 (05-2018) Copyright 2018 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 42 Corporate offi ces Worldwide offi ces Christie Digital Systems USA, Inc. Australia Germany Republic of South Africa United Kingdom Cypress ph: +61 (0) 7 3624 4888 ph: +49 2161 664540 ph: +27 (0)11 510 0094 ph: +44 (0) 118 977 8000...
