Summary of Contents for Sima COBRA-60

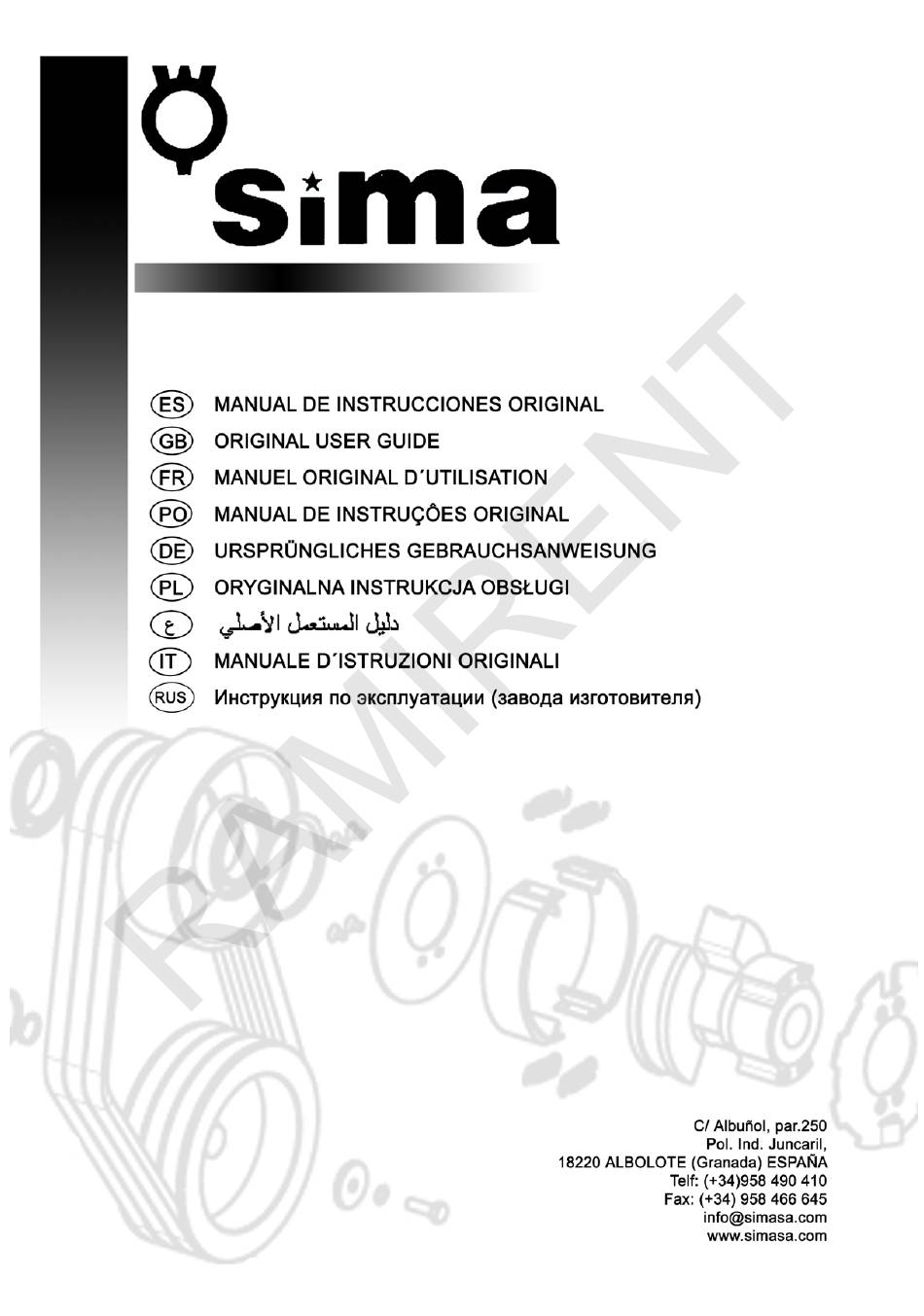

- Page 1 COBRA-60...
- Page 2 ENGLISH...
-
Page 3: Table Of Contents
7.3 DIESEL AND PETROL ENGINES ..................9 7.4 ENGINE SAFETY RECOMMENDATIONS ................. 9 7.5 STARTING AND STOPPING USING MOTOR 13HP (COBRA-60/G13H) ........10 7.6 STARTING AND STOPPING USING MOTOR 20HP (COBRA-60/G20H) ........10 7.7 STARTING AND STOPPING USING DIESEL ENGINE (COBRA-60/G16R) ........10 8. -
Page 4: General Information

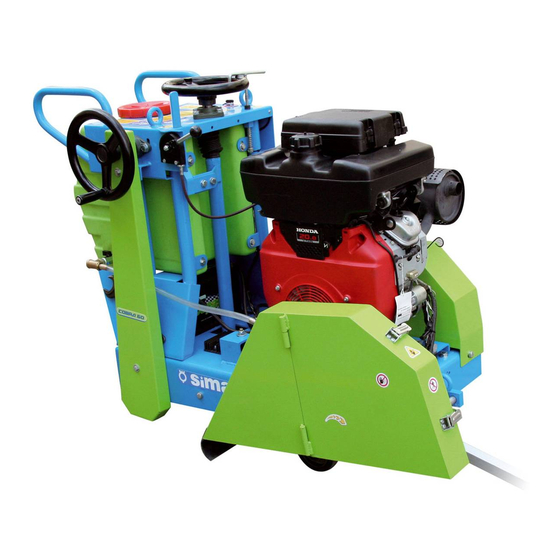

2. DESCRIPTION OF THE MACHINES The floor saws SIMA S.A., model COBRA 60, are designed and manufactured to cut onto flat surfaces asphalt, concrete, terrazzo, granite or ceramics. High-speed diamond blades are used and advancement is manual. The joint cutter COBRA 60 model 60 provides a side-wheel transmission to the drive wheels for easy push of the machine and making the cut more easily and with less effort. -
Page 5: Pictograms
ENGLISH A graduated scale indicating the cutting depth. • 2.1 PICTOGRAMS Pictograms included in the machine entail the following: READ USE HELMET AND EYE AND EAR INSTRUCTIONS DEFENDERS MANUAL USE SAFETY FOOTWEAR USE SAFETY GLOVES 3. TRANSPORT For short distances, the floor saw COBRA 50 can be transported onto its own wheels. Raise the blade fully and move the saw manually. -
Page 6: Assembling The Elevation Wheel
The SIMA Joint Cutters should be used by people who are familiar with its operation. • Make sure the machine will be use in perfect technical condition and fully operational. -
Page 7: Management Of The Machine
ENGLISH • Before connecting or starting the equipment make sure that nobody is in their area of risk. • Starting the equipment according to the manufacturer's instructions. • Check the rotation direction is correct. • Visually inspect all connections: bolts, nuts, welds, corrosion, cracks, receipts, etc. 5.2 MANAGEMENT OF THE MACHINE •... -
Page 8: Projection Of Fragments Or Particles
ENGLISH • Use the tools in good condition and only for jobs that were designed (do not keep in your pockets). • Do not store sharp tools with cutting edges uncovered. • Cleaning and maintenance will be done with the machine stopped with no possibility of movement or operation. •... -
Page 9: Noise And Vibration
NOTE: Must follow all safety recommendations showed in this manual and comply with regulations for the prevention of occupational risks in each place. Be environmentally friendly. SIMA SA is not responsible for any consequences that may result in misuses when cutting with Cobra 60 models. -
Page 10: Starting And Stopping Using Motor 13Hp (Cobra-60/G13H)
• Do not refuel with the engine running or smoke during operation, try to do it in well ventilated places. For further details, consult the engine manual. 7.5 STARTING AND STOPPING USING MOTOR 13HP (COBRA-60/G13H) Proceed as follows: • Raise the blade some centimetres from the ground. -
Page 11: Cutting Materials
ENGLISH • Place the ignition key in A position (left position) and start the engine by turning it to position C (right position). Once the engine started place the key in position B (intermediate position). Do not keep the key in position A or disconnect the battery with the engine running. -
Page 12: Replacing The Belts
Note that within the group of diamond disks are different types depending on the material being cut. Always choose the most appropriate for you. For all the above, we recommend using SIMA ORIGINAL BLADES always fulfilling the technical and safety requirements and are offered in a range that covers all needs and facilitates the correct choice. -
Page 13: Solutions To Most Frequent Anomalies
ENGLISH 10. SOLUTIONS TO MOST FREQUENT ANOMALIES ANOMALIA POSIBLE CAUSA SOLUCION Low oil level alarm is ON Top up as necessary Fuel cock closed Open fuel cock The engine will not start Motor switch is in OFF position Turn switch to ON position Machine emergency stop switch is Release the button turning it upwards pressed... -
Page 14: Technical Characteristics
ENGLISH 11. TECHNICAL CHARACTERISTICS COBRA 60 G13H COBRA 60 G20H COBRA 60 D16R DATOS RUGGERINI MD190 MOTOR HONDA GX390 HONDA GX620 COMBUSTIBLE PETROL PETROL DIESEL START Manual Electrical Electrical 20HP/14,9KW 15,5HP/11,4KW MAXIMAL POWER 13HP/9,6KW R.P.M. MOTOR 3600 3600 3600 ADVANCE OF THE CUTTING Manual/Wheel Manual/Wheel Manual/Wheel... -
Page 15: Electrial Schemes
ENGLISH 12. ELECTRIAL SCHEMES ESQUEMA ELECTRICO COBRA-60-D16R ESQUEMA ELECTRICO COBRA-60-G20H... - Page 16 ENGLISH ESQUEMA ELECTRICO COBRA-60-G13H...
-
Page 17: Warranty
Repairs under warranty made by SERVÍ-SIMA are subject to some strict condition to guaranty a high quality and service. SIMA S. A. guarantees all its products against any manufacturing defect; to take into account the conditions stated in the attached document “WARRANTY CONDITIONS”. The latter would cease in case of failure to comply with the established payment terms. - Page 18 ENGLISH...
- Page 19 ENGLISH...
- Page 20 ENGLISH...
-
Page 21: Warranty Certificate
WARRANTY CONDITIONS 1.) SIMA, S.A. fully guarantees all its products against defects in design, taking responsibility in the repairs or the faulty equipment for a period of ONE year from the original date of purchase. The date of purchase must appear on the warranty voucher enclosed. - Page 22 WARRANTY CONDITIONS 1.) SIMA, S.A. fully guarantees all its products against defects in design, taking responsibility in the repairs or the faulty equipment for a period of ONE year from the original date of purchase. The date of purchase must appear on the warranty voucher enclosed.
- Page 25 SOCIEDAD INDUSTRIAL DE MAQUINARIA ANDALUZA, S.A. POL. IND. JUNCARIL, C/ALBUÑOL, PARC. 250 18220 ALBOLOTE (GRANADA) TEL.: 34 - 958-49 04 10 – Fax: 34 - 958-46 66 45 MANUFACTURER OF LIGHT MACHINERY FOR CONSTRUCTION SPAIN...
