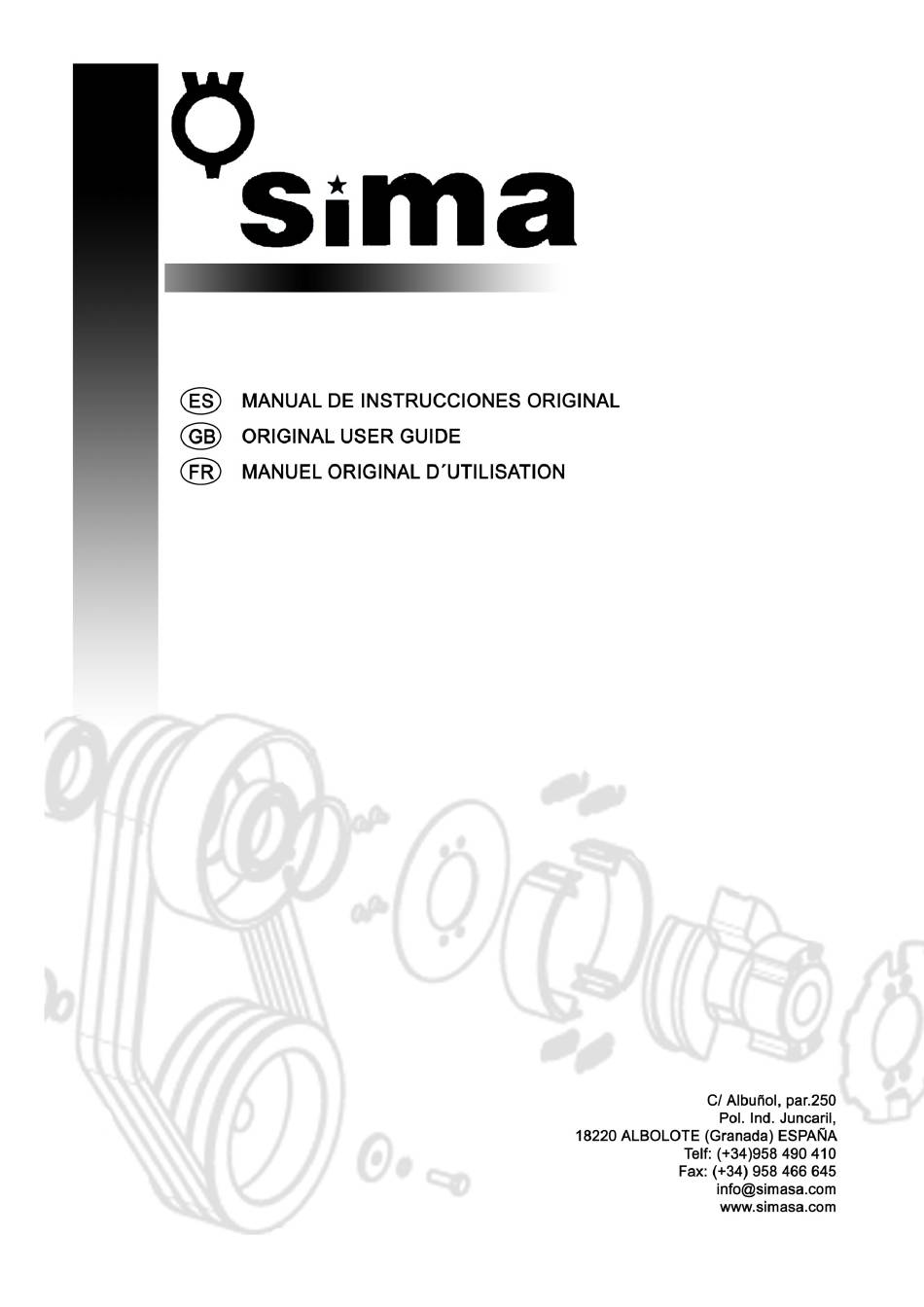

  • Page 1 COBRA 30 PRO COBRA 35 PRO...
  • Page 2 ENGLISH...

  • Page 3: Ce" Conformity Declaration

    UNE-EN 1050; UNE-EN 953 The licensed engineer responsible for the development of the machine Eugenio Fernández Martín Technical Supervisor SIMA S.A. Polígono Industrial Juncaril, C/ Albuñol, Parcela 250 - 18220 Albolote, Granada (ESPAÑA) Albolote 26.09.2012 signed: Javier García Marina Managing Director...

  • Page 4: Table Of Contents

    ENGLISH INDEX E-1 ........................ 1 “CE” CONFORMITY DECLARATION ..............3 1. GENERAL INFORMATION................5 2. GENERAL DESCRIPTION OF THE MACHINE ..........5 2.1 PICTOGRAMS......................6 3. TRANSPORTATION..................6 4. SETUP INSTRUCTIONS ................7 4.1 HOW THE MACHINE ARRIVES TO YOU ................7 4.2 MOUNTING TANK.

  • Page 5: General Information

    IMPORTANT: READ AND UNDERSTAND THIS SET OF INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THE MACHINE SIMA S.A. thanks you for purchasing the COBRA floor saw. This instruction manual gives you all necessary information to; get the machine started, use the machine, maintain the machine, and if required, repair the machine.

  • Page 6: Pictograms

    ENGLISH 2.1 PICTOGRAMS. The pictograms on the machine have the following meaning: IT IS ESSENTIAL TO READ THE INSTRUCTION MANUAL. THE USE OF HARD HAT, SAFETY GOGGLES AND AUDIO PROTECTION IS ESSENTIAL. THE USE OF GLOVES IS ESSENTIAL. SAFETY SHOES MUST BE WORN. DANGER, CUTTING AREA.

  • Page 7: Setup Instructions

    ENGLISH 4. SETUP INSTRUCTIONS 4.1 HOW THE MACHINE ARRIVES TO YOU On opening up the packaging you will find the following: • Body of the machine with the handle unfitted. The handle. • cooling tank • Bag containing documentation and instruction manuals. 4.2 MOUNTING TANK.

  • Page 8: Raising/ Lowering To Cut

    ENGLISH 4.4 RAISING/ LOWERING TO CUT. The machine raises and lowers using a gas shock absorber. This is activated by the lever located on the handle bar. RAISING THE MACHINE UP Press the lever down all the way with your thumb.

  • Page 9: Adjusting The Rear Axle

    ENGLISH 4.6 ADJUSTING THE REAR AXLE The rear axle can be moved left and right., This is to allow the machine to avoid obstacles in the road while maintaining a straight cut. How to change the position of the axle. Loosen the quick release handle.

  • Page 10: Safety Reccomendations For The Engine

    ENGLISH 5. SAFETY RECCOMENDATIONS FOR THE ENGINE • Fill the petrol tank in a well-ventilated place and do not overfill. • Avoid inhaling any fumes as you fill the tank. • Avoid spilling fuel as it can be dangerous and flammable. •...

  • Page 11: Instructions For Starting Up The Machine

    ENGLISH 6. INSTRUCTIONS FOR STARTING UP THE MACHINE. 6.1 WATER TANK. The COBRA expansion joint saw has a water tank cooling system that cools the blade while the machine is in use. While filling the tank close the valve. 6.2 OPTIONAL ADD-ON TANK. Optional extra water tank can be supply.

  • Page 12: Using The Machine Connecting/Disconnecting

    ENGLISH 6.3 USING THE MACHINE CONNECTING/DISCONNECTING. Starting the engine: • Man oeuvre the machine so that the blade is a few centimeters from the floor surface. • Turn the engine switch to ON • Open the fuel valve. • Open the choke. (Not necessary if the engine is warm or conditions are hot) •...

  • Page 13: Safety Reccomendations

    • Don´t use a pressure hose to clean the machine. • At the end of the days use make sure the engine is completely switched off. SIMA S.A. is not responsible for inappropriate use of this machine 7. MAINTENANCE. Maintenance should be carried out by technicians that are experience in these types of machines.

  • Page 14: Tightening Or Changing Transmission Belts

    • Cover the machine in waterproof material when not in use. • All modifications to the machine and use of unofficial spare parts are prohibited. SIMA S.A will not be held responsible for any accidents or incidents caused by modifications made to the machine.

  • Page 15: Technical Specifications

    ENGLISH Add oil until the correct level is Low oil level alarm is activated reached Motor won ´t start Fuel feed is closed Open the valve Motor switch in ´off ´position Turn ´on´ Insufficient acceleration Put accelerator on higher setting Loosen belts Tighten belts Blade slows or stops while cutting...

  • Page 16: Performance

    ENGLISH 8.1 PERFORMANCE Performance will vary depending on surfaces tested, type of blade used and the operator. 9. GUARANTEE...

  • Page 17: Spare Parts

    SIMA, S.A. manufacturer of construction machinery, has a network of service centers, SERVÍ-SIMA. All repairs carried out by agents in our network SERVÍ-SIMA, are subject to guidelines which will guarantee their quality. SIMA. S.A. guarantees all ítems against manufacturing defects, bound by the conditions set out in our CONDITIONS OF GUARANTEE.
  • Page 18 8.) With regard to guarantee claims for motors during the 1 year period they should either be sent to SIMA or to an authorised repair agent for the engine in question.
  • Page 19 ENGLISH...
  • Page 20 8.) With regard to guarantee claims for motors during the 1 year period they should either be sent to SIMA or to an authorised repair agent for the engine in question.
  • Page 21 ENGLISH...
