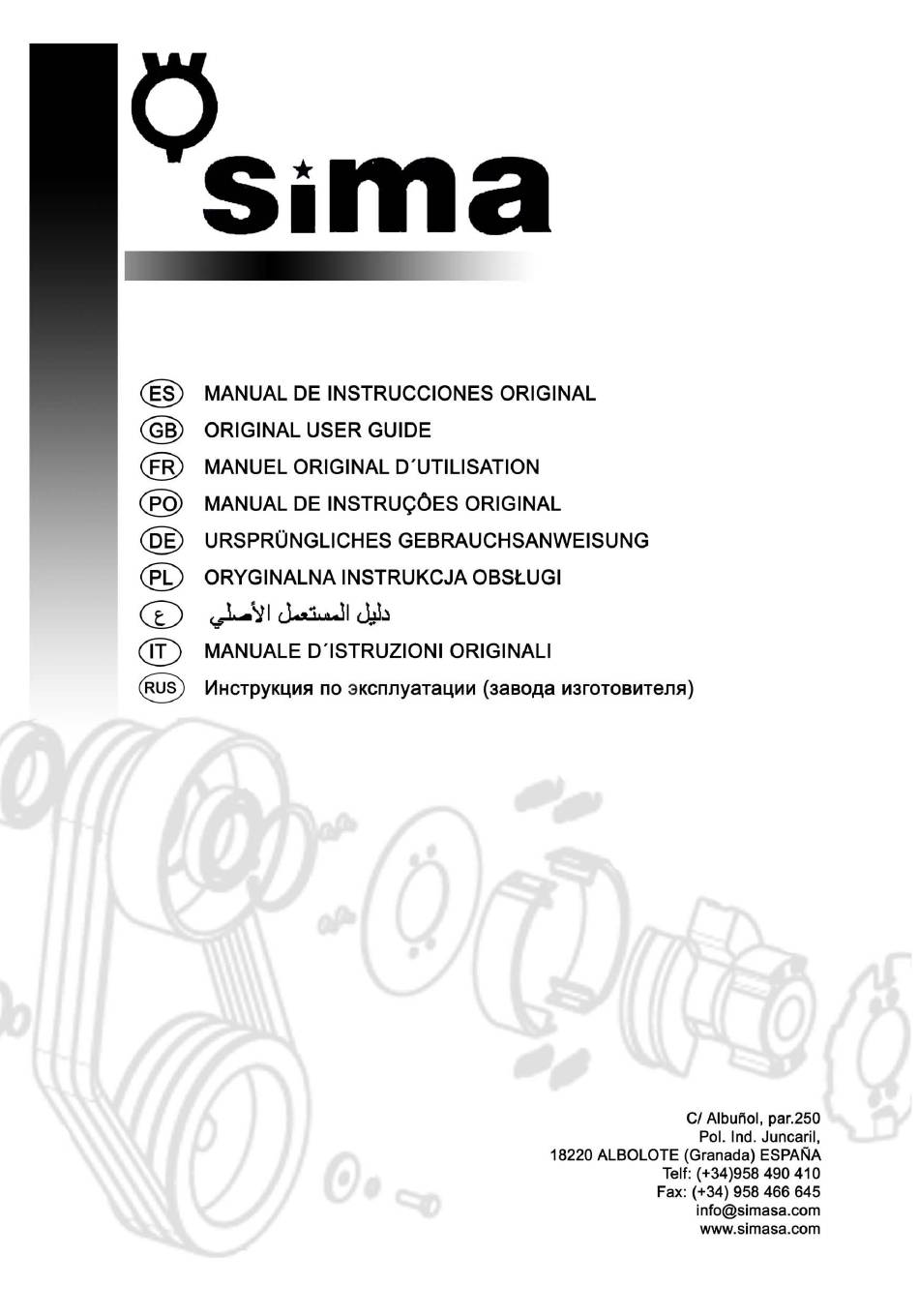

- Page 1 BALI 700 MKNO...
- Page 2 ENGLISH...
-
Page 3: Table Of Contents
ENGLISH INDEX 1. GENERAL INFORMATION ................4 2. GENERAL DESCRIPTION OF THE MACHINE ..........4 2.1 PICTOGRAMS ........................5 3. TRANSPORTATION ..................6 4. ELECTRICAL PLUGGING AND ADJUSTING THE BLADE ROTATION SENSE ..6 5. ELECTRICAL EQUIPMENT ................7 6. SAFETY RECOMMENDATIONS ..............8 7. -
Page 4: General Information
WARNING: Pease read and understand perfectly the present instruction before using the machine. SIMA S.A. thanks you for your trust in our products and for purchasing the TABLE SAW model BALI. This manual provides you with the necessary instructions to start, use, maintain and in your case, repair of the present machine. -
Page 5: Pictograms
ENGLISH 2.1 PICTOGRAMS The pictograms on the machine have the following meaning: USE SAFETY BOOTS • USE HELMET AND EYE AND AUDITIVE PROTECTION • READ INSTRUCTIONS MANUAL • USE SAFETY GLOVES. • • SOUND POWER LEVEL ISSUED BY THE MACHINE SOUND POWER LEVEL ISSUED BY THE MACHINE . -
Page 6: Transportation
ENGLISH 3. TRANSPORTATION After unpacking the machine, it can be move it into the work place manually by two people. It is recommended to empty the water from the tray before moving the machine to avoid splashing or spillage. It is also necessary to block the car to avoid unexpected slip during transport. Check also that they are fully tightened the screws holding the legs to the tray to avoid dislodging the raising machine. -
Page 7: Electrical Equipment
5. ELECTRICAL EQUIPMENT The electrical equipment of the BALI MKNO cutting tables manufactured by SIMA, S.A. has an IP54 protection degree. The power supply on this machine has a low minimal tension coil to avoid any unexpected starting-up of the machine. -
Page 8: Safety Recommendations
ENGLISH 6. SAFETY RECOMMENDATIONS machines with electric motor should always connected to a standard electrical box that has a circuit breaker and a Residual-current device in accordance with the characteristics of the engine ( see table). WARNING: Always use earth plug before starting-up the machine. -
Page 9: Parts Of The Machine
ENGLISH 7. PARTS OF THE MACHINE Quick release handle. Spring. Switch. Blade protection. Legs Handle. Cooling sustem. Motor. Block stopper. Trolley Water tray. Chasis. Leg stopper. Anti splash curtain. Transport wheels... -
Page 10: Mounting And Dismounting The Cutting Blade
For all the above, we recommend always using SIMA Original blades that meet the technical requirements and safety requirements and are offered in a range that covers all the needs and facilitates the correct choice. -
Page 11: Starting And Using The Machine
ENGLISH 9. STARTING AND USING THE MACHINE 9.1 BUILDING THE MACHINE Use the cardboard accessory to support the head while you fix it in place Depending on the size of blade you will use, fix the head in one position or another. Install the spring. -
Page 12: Filling The Tray With Water
ENGLISH Install the ruler on the cutting surface. 10. Install the tool holder. 11. Mount the blade. 9.2 FILLING THE TRAY WITH WATER BALI MKNO cutters are designed to work with water-cooled diamond chains, so that a significant part of its structure is a tray designed to serve as a reservoir of cooling water which is pumped in closed circuit to the blade. -
Page 13: Position Of The Machine And The Operator, Connection And Disconnection
ENGLISH 9.3 POSITION OF THE MACHINE AND THE OPERATOR, CONNECTION AND DISCONNECTION The machine needs to be installed in well illuminated, stable and plane surface, free from any obstacles. Before starting-up the machine, we should have gone through all necessary safety measures (electrical connection, stability, protections, etc….) as mentioned in the previous chapters. -
Page 14: Changing The Cutting Height
ENGLISH 9.4 CHANGING THE CUTTING HEIGHT. To change the cutting height use the handle. Loosen easy lock handle. Raise or lower cutitng head. Tighten easy lock handle. Make sure blade protection is horizontal. Warning, make sure the blade is never touching the cutting platform... -
Page 15: Maintenance
Take into account the safety recommendations mentioned in this manual. It is prohibited to independently make any change in some parts, components or characteristics of the machine. SIMA, S. A. shall in no case be responsible for the consequences that may derive from a breach of these recommendations. -
Page 16: Solutions To Most Frequent Anomalies
ENGLISH 12. SOLUTIONS TO MOST FREQUENT ANOMALIES ANOMALY POSSIBLE CAUSE SOLUTION Check the power supply in the switch board. Check the position of the thermal magnet and the differential in the switch Power supply fault board. Make sure the extension cable is in Motor does not a good state and well plugged in both start up... -
Page 17: Technical Characteristics
ENGLISH 13. TECHNICAL CHARACTERISTICS Code 0101002200 0101002201 0101002204 0101002205 0101002206 Voltage motor (V) / Phase 230 / Monf 230 / Monf 230-400 / Trif 230-400 / Trif. 230 / Trif Frequency (Hz) / Plug 50 / 3P 60 / 3P 50 / 4P 50 / 5P 60 / 4P... -
Page 18: Warranty
SIMA S.A. reserves its right to bring modifications and changes to its products without prior notice. 15. SPARE PARTS The spare parts for the cutting table, SPADA MKNO model , manufactured by SIMA, S.A. are to be found in the spare parts plan and may be download through our website www.simasa.com (B2B). -
Page 19: Circuit Diagrams
ENGLISH 3. CIRCUIT DIAGRAMS 2P+T 3P+T 3P+N+T... - Page 20 ENGLISH...
