Summary of Contents for Sima HANDY 350

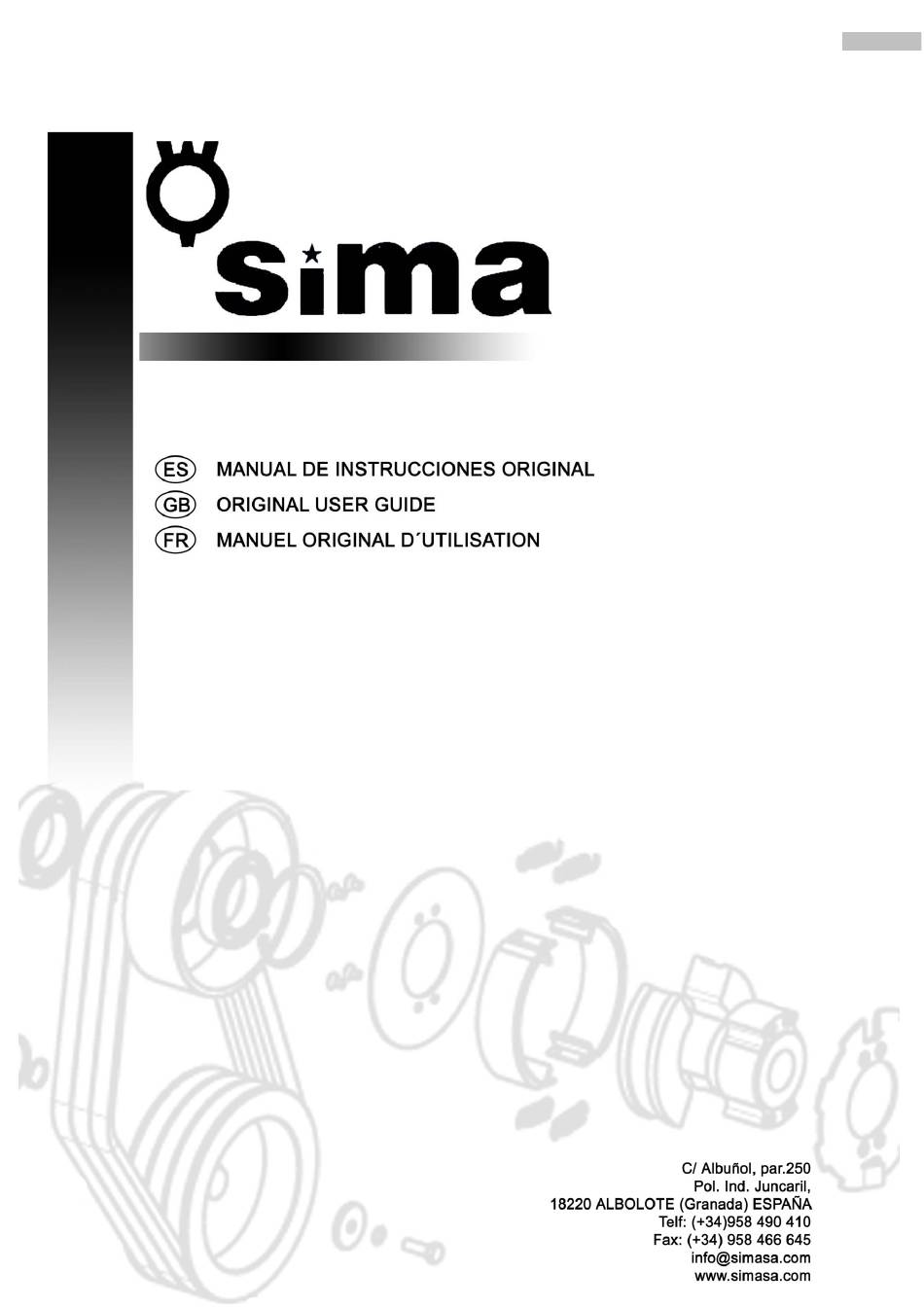

  • Page 1 ENGLISH HANDY 350...
  • Page 2 ENGLISH...

  • Page 3: Table Of Contents

    ENGLISH ÍNDICE ........................3  1.  GENERAL INFORMATION ................5  2.  GENERAL DESCRIPTION OF THE MACHINE..........5  PICTOGRAMS ......................6     3  TRANSPORTATION ................... 6  4  ELECTRICAL PLUGING AND ADJUSTING THE DISK DIRECTION OF ROTATION..................... 7  5  ELECTRICAL SCHEME................7  6 ...
  • Page 4 ENGLISH...

  • Page 5: General Information

    2. GENERAL DESCRIPTION OF THE MACHINE. SIMA cutting table saws are designed and manufactured to be used at building sites for cutting masonry materials, stone and any mineral and compound building materials with at least one bearing side (tile, terrazzo, brick, marble, granite, concrete or ceramics shingle, stoneware...) The cutting tool is a diamond blade powered by an electric motor.

  • Page 6: Pictograms

    ENGLISH 2.1 PICTOGRAMS The pictograms included in the machine entail the following meaning:  USE SAFETY BOOTS  USE HELMET AND EYE AND AUDITIVE PROTECTION  READ INSTRUCTIONSMANUAL  USE SAFETY GLOVES.  SOUND POWER LEVEL ISSUED BY THE MACHINE. Machine connected to 110V.

  • Page 7: Electrical Pluging And Adjusting The Disk Direction Of Rotation

    ENGLISH 4 ELECTRICAL PLUGING AND ADJUSTING THE DISK DIRECTION OF ROTATION. Upon receipt of the machine, make sure the network electrical tension is adequate before plugging the machine. The electrical tension is to be found on the voltage indication next to the switch of the machine. WARNING: Never plug the machine to the main supply without making sure that the power tension is compatible with the machine specifications.

  • Page 8: Safety Recommendations

    Warning: You must follow all safety recommendations outlined in this manual and comply with regulations for the prevention of occupational hazards of each place. SIMA, S.A. is not responsible for the potential consequences of inadequate use of the table saws.

  • Page 9: Machine Parts

    ENGLISH 7 MACHINE PARTS Handle Start switch. Blade guard. Motor. Blade. Rolling cart Rolling cart locking bolt. Adjustable legs. Anti-overturn system. 10. Chassis. 11. Vacuum cleaner feed. 12. Tools 13. Height adjustment lock handle. 14. Water feed pipe.

  • Page 10: Cutting Blade Assembly And Disassambly

    SIMA always recommends to use original SIMA blades that comply with the norms in their technical and safety features. SIMA offers a wide range to cover all most extended types of cutting, therefore ensuring the right choice. 8.1 MOUNTING OR REPLACING A BLADE.

  • Page 11: Starting-Up And Using Instructions

    ENGLISH 9 STARTING-UP AND USING INSTRUCTIONS. 9.1 POSITION OF THE MACHINE AND THE OPERATOR; CONNECTION AND DISCONNECTION The machine must be installed on an even and stable Surface, free from obstacles and well lightened. Before getting the machine started we need to check all the necessary elements (electrical connection, stability, protective elements) as described in the previous sections.

  • Page 12: Front Cutting

    ENGLISH 9.3 FRONT CUTTING. First, block the cutting head by tightening up the crank. Then, push the cart with the piece to cut on top until it gets close to the running blade. Keep pushing accordingly to the material hardness and the cutting depth.

  • Page 13: Maintenance

    Take into account the safety recommendations mentioned in this manual. It is prohibited to independently make any change in some parts, components or characteristics of the machine. SIMA, S. A. shall in no case be responsible for the consequences that may derive from a breach of these recommendations.
  • Page 14 ENGLISH...

  • Page 15: Trouble Shooting

    ENGLISH 11 TROUBLE SHOOTING ANOMALY POSSIBLE CAUSE SOLUTION Check the power supply in the switch board. Check the position of the thermal magnet and the differential in the switch board. Power failiure Make sure the extension cable is in a good state and well plugged in both ends.

  • Page 16: Technical Features

    ENGLISH 12 TECHNICAL FEATURES Feature 110V V 230V V 50/60Hz 50/60Hz 1,5 Kw Motor Power 1,5Kw 2,2 Kw 110V~ 230V~ Motor Voltage 2800 R.P.M. Motor turns per minute Cooling pump Amps 110V~ 230V~ Cooling pump voltage 350 mm 350 mm Máximun Blade diameter 25,4 mm 25,4 mm...

  • Page 17: Warranty

    ENGLISH 13 WARRANTY The manufacturer, operates a technical service. Repairs done under guarantee by net are subject to highly demanding rules, in order to ensure the highest quality and the best service. The manufacturer guarantees all its products for any manufacturing defect, according to the conditions stated in the attached document “Warranty conditions”.

  • Page 18: Electrical Connections Diagram

    ENGLISH 18 ELECTRICAL CONNECTIONS DIAGRAM.
  • Page 19 ENGLISH SOCIEDAD INDUSTRIAL DE MAQUINARIA ANDALUZA, S.A. POL. IND. JUNCARIL, C/ALBUÑOL, PARC. 250 18220 ALBOLOTE (GRANADA) Telf.: 34 - 958-49 04 10 – Fax: 34 - 958-46 66 45 FABRICACIÓN DE MAQUINARIA PARA LA CONSTRUCCIÓN SPAIN...
