3. INSTALLATION

WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the appliance, write
down the information bellow from the
rating plate. The rating plate is on the
bottom of the appliance.
Serial number ...........................
3.2 Built-in appliance
Only use the built-in appliances after you
assemble the appliance into correct
built-in units and work surfaces that align
to the standards.
3.3 Connection cable
• The appliance is supplied with a
connection cable.
• To replace the damaged mains cable
use the following (or higher) mains
cable type: H05V2V2-F T min 90°C.
Speak to your local Service Centre.

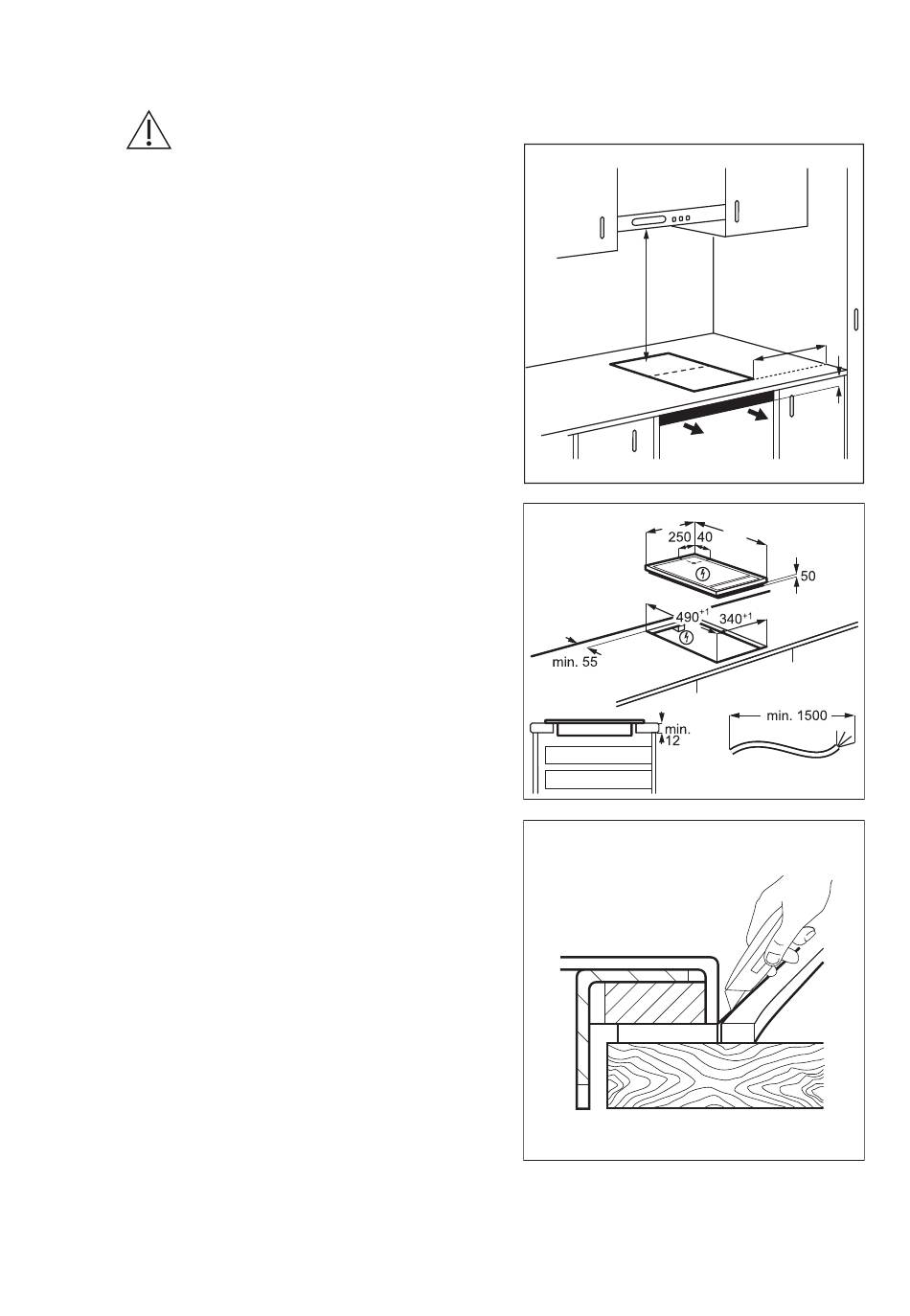

3.4 Attaching the seal - On-top
installation
1. Clean the worktop around the cut
out area.
2. Attach the supplied 2x6mm seal
stripe to the lower edge of the
appliance, along the outer edge of
the glass ceramic. Do not stretch it.
Make sure that the ends of the seal
stripe are located in the middle of
one side of the appliance.
3. Add some millimetres to the length
when you cut the seal stripe.
4. Join the two ends of the seal stripe
together.
3.5 Assembly
min.
500mm
360
ENGLISH 7
min.
50mm
min.
2mm
520
