Task Force Tips HURRICANE Instructions For Installation, Safe Operation And Maintenance page 35

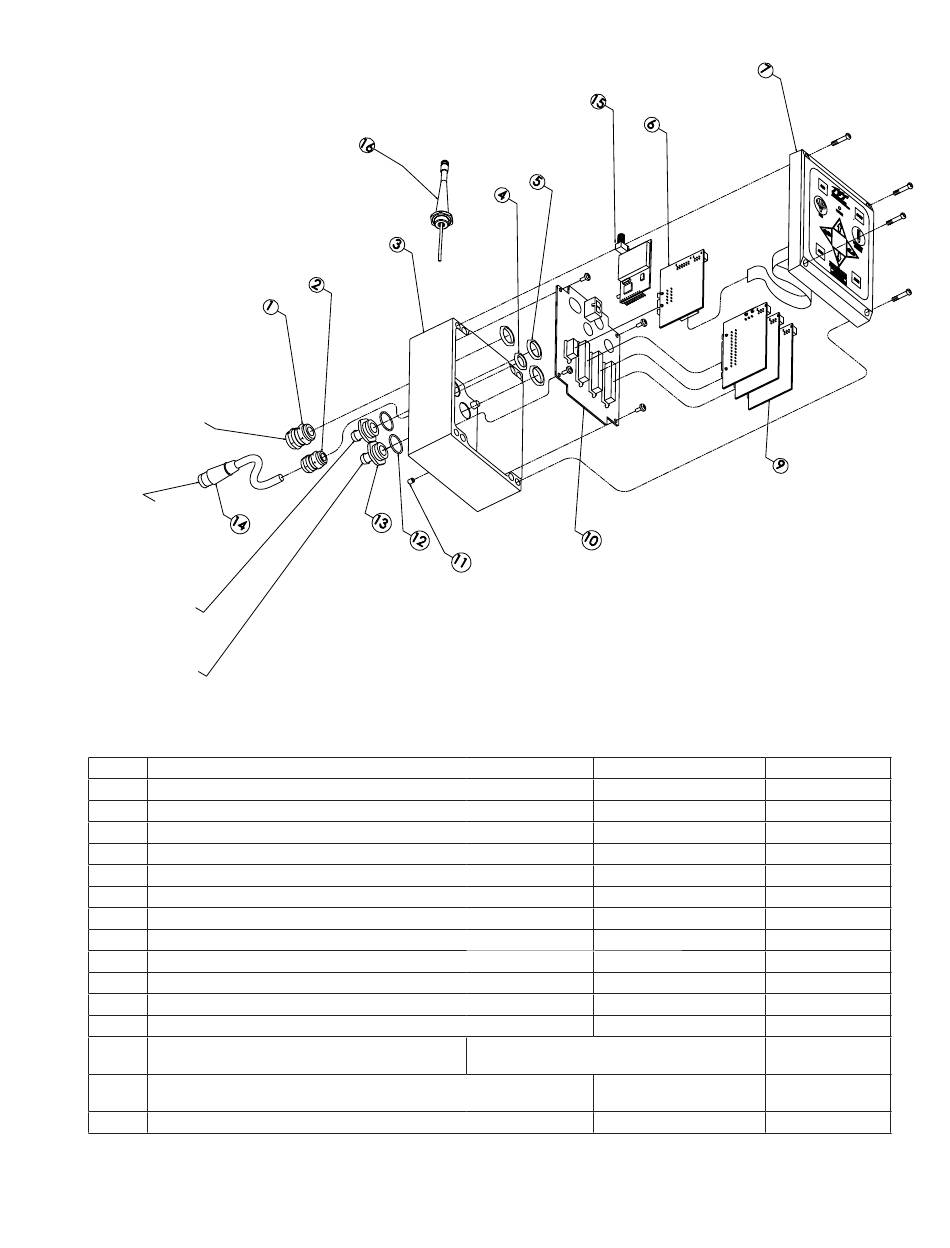

9.8 MONITOR CONTROL BOX ASSEMBLY
TO
POWER
CABLE
TO TFT
ERP NOZZLE
MALE PLUG
TO HORIZONTAL
GEAR MOTOR
TO VERTICAL
GEAR MOTOR
# DESCRIPTION
1 CABLE FITTING PG11
2 CABLE FITTING PG9
3 ENCLOSURE - BOX
4 LOCKNUT - PG9
5 LOCKNUT - PG11
6 BOARD - COMMUNICATION
7 ENCLOSURE - LID WITH MEMBRANE SWITCH
9 BOARD - MOTOR CONTROL
10 BOARD - MAIN
11 V10-32 x 1/4 SET SCREW
12 O-RING-018
13 CONDUIT HOSE FITTING
14 FEMALE PLUG - 6 POLE
FOR HURRICANE RC NOZZLE CONNECTION
15 BOARD-OEM 900 MHZ RF MODULE
(included with part YE-RF-900)
16 ANTENNA W/FITTING
©Copyright Task Force Tips, Inc. 2008-2014
10.0" TOTAL LENGTH USED
5.0" EXPOSED CABLE (not including plug)
35
QTY PART #
1 Y5205
1 Y5245
1 Y5115
1 Y5246
3 Y5206
1 Y5110-B
1 Y5800-LID
3 Y5100
1 Y5105
1 VT10Y32SS250
2 VO-018
2 Y5213
Y5475
1 Y5710
1 Y5881
LIX-300 April 29, 2014 Rev18
