SHOWN

WITHOUT

INLET FITTING

( SEE FIG 3.4F

FOR

ADDITIONAL

HEIGHTS )

©Copyright Task Force Tips, Inc. 2008-2014

15.43

[ 392MM ]

5.50

[ 140 MM ]

hurricane rc

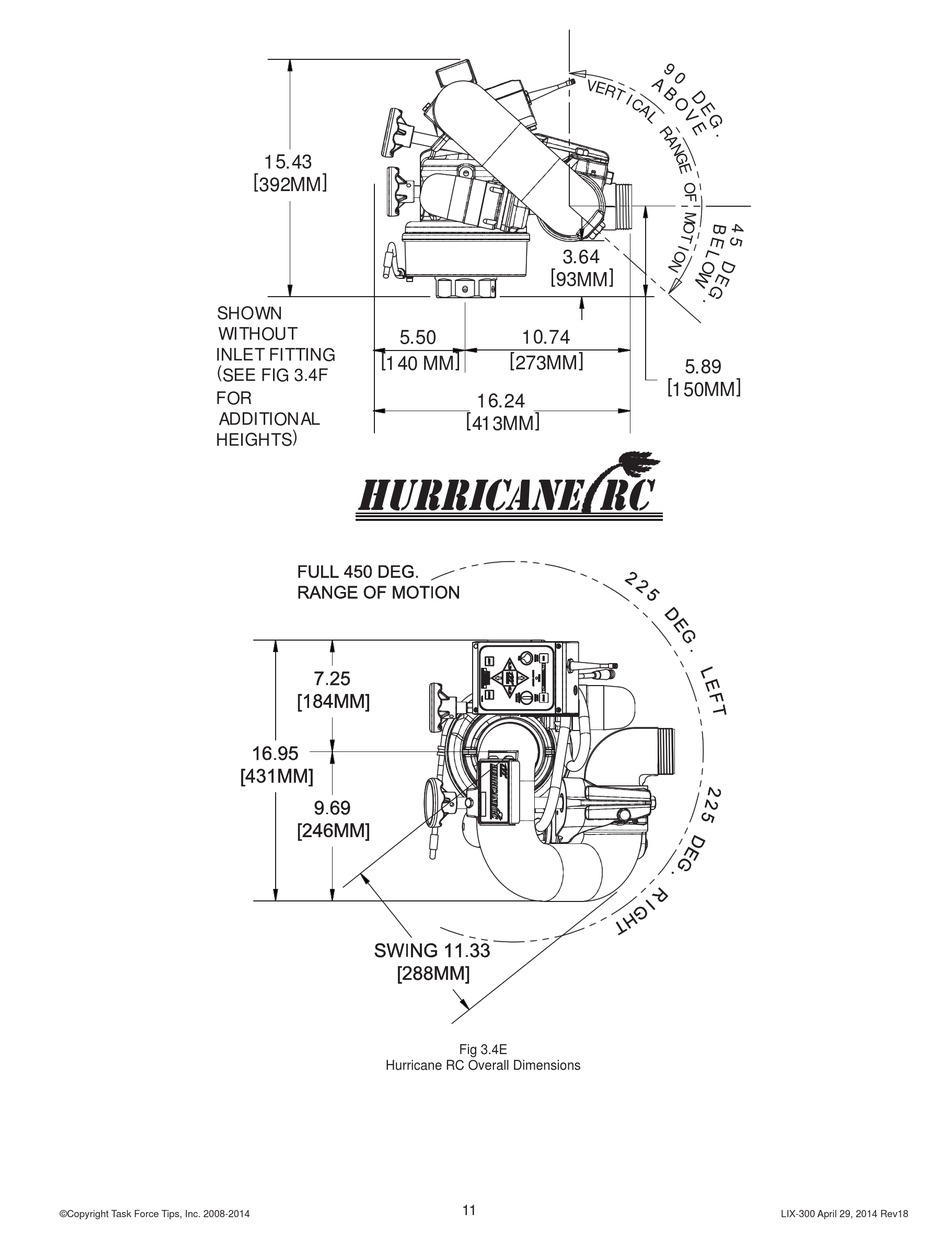

Hurricane RC Overall Dimensions

3.64

[ 93MM ]

10.74

[ 273MM ]

16.24

[ 413MM ]

Fig 3.4E

11

5.89

[ 150MM ]

LIX-300 April 29, 2014 Rev18
