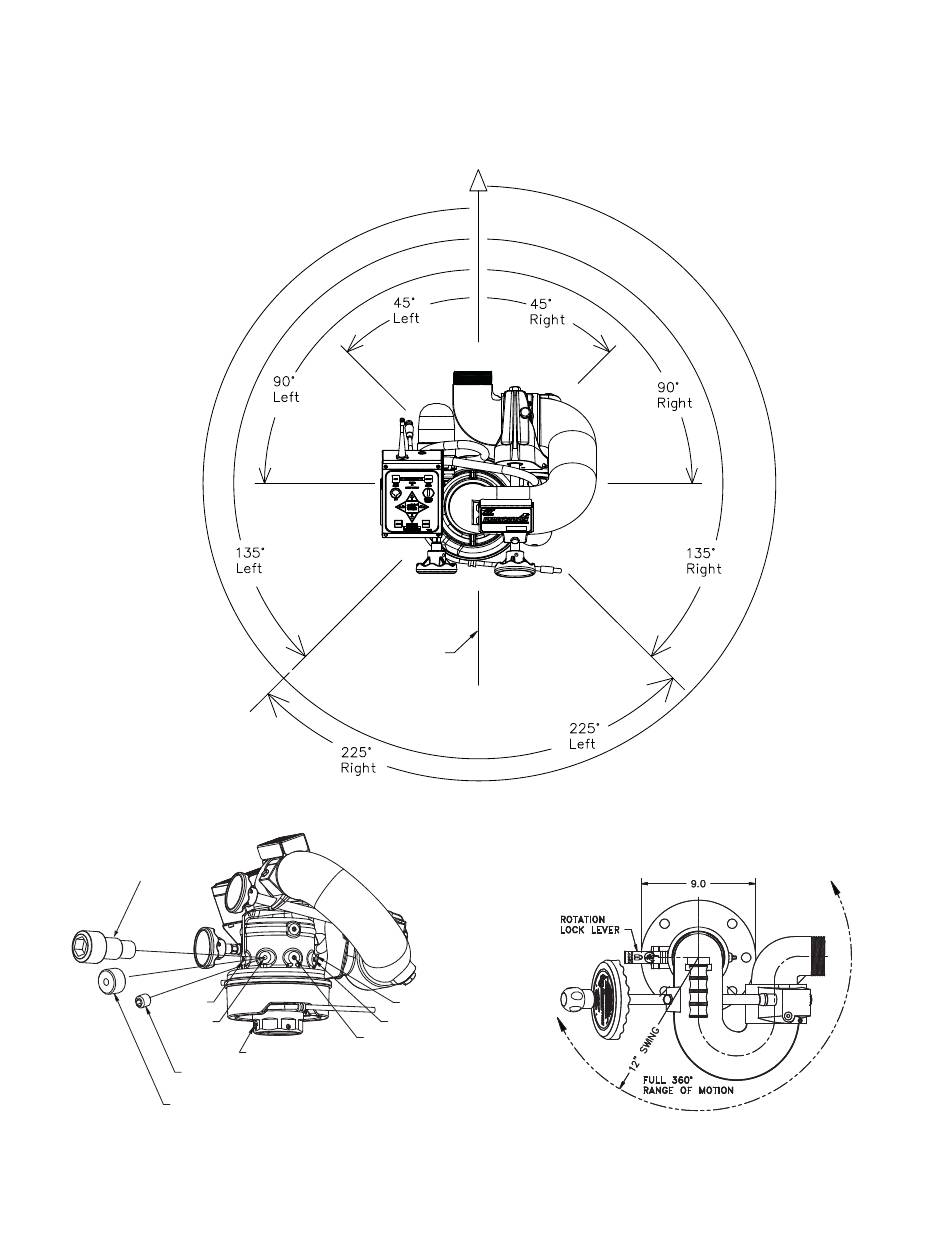

4.2.2 HORIZONTAL ROTATION TRAVEL STOPS

The range of Horizontal (left-right) travel for the Hurricane RC monitor is limited to 450 degrees or 225 degrees from either side of
a nozzle discharge position. Horizontal (left-right) travel stop bolts may be installed in the monitor to limit travel as shown in fi gure
4.2.2A and 4.2.2B. Note that left and right are relative to the "Straight Back Reference Mark" shown in fi gure 4.2.2A, and refer to the
operator's position behind the monitor, opposite the nozzle's discharge direction. Also, Figure 4.2.2A shows the range of travel for
the various stop bolt locations along with installation notes as shown in Figure 4.2.2B. Horizontal travel for the Hurricane is shown
in fi gure 4.2.2C.
REMOVE SETSCREW AND
INSTALL STOP BOLT TO OBTAIN
DESIRED TRAVEL LIMITS.
45° RIGHT
90° RIGHT
SET SCREW
#VT37-24SS375
ADJUSTMENT DISK, Y3146
INSTALL ON THIS SIDE OF STOP BOLT TO
REDUCE TRAVEL TO LEFT BY APPROX. 8°
FOR EACH DISK INSTALLED. INSTALL DISKS
ON OTHER SIDE TO REDUCE TRAVEL TO RIGHT.
Horizontal Travel Stop Bolt Locations
©Copyright Task Force Tips, Inc. 2008-2014
LOCATION OF
STRAIGHT BACK
REFERENCE MARK
Horizontal Travel Limits
45° LEFT
90° LEFT
135° LEFT AND RIGHT
(ONLY ONE STOP BOLT
STRAIGHT BACK
NEEDED FOR THIS
REFERENCE MARK
TRAVEL LIMIT)
Fig 4.2.2B
Fig 4.2.2A
Hurricane Horizontal Travel
15
Fig 4.2.2C
LIX-300 April 29, 2014 Rev18
