6.0"
[152mm]
15.7"
[398mm]
9.7"
[246mm]
16.5" [418mm]
WITHOUT
INLET FITTING
(SEE FIG 3.4H FOR
ADDITIONAL
HEIGHTS)
4.4"
[111mm]
14.0"
[357mm]
14.5" [367mm]
WITHOUT
INLET FITTING
(SEE FIG 3.4H FOR
ADDITIONAL
HEIGHTS)
©Copyright Task Force Tips, Inc. 2008-2014
5.7"
[144mm]
10.4"
[265mm]
21.7"
[551mm]

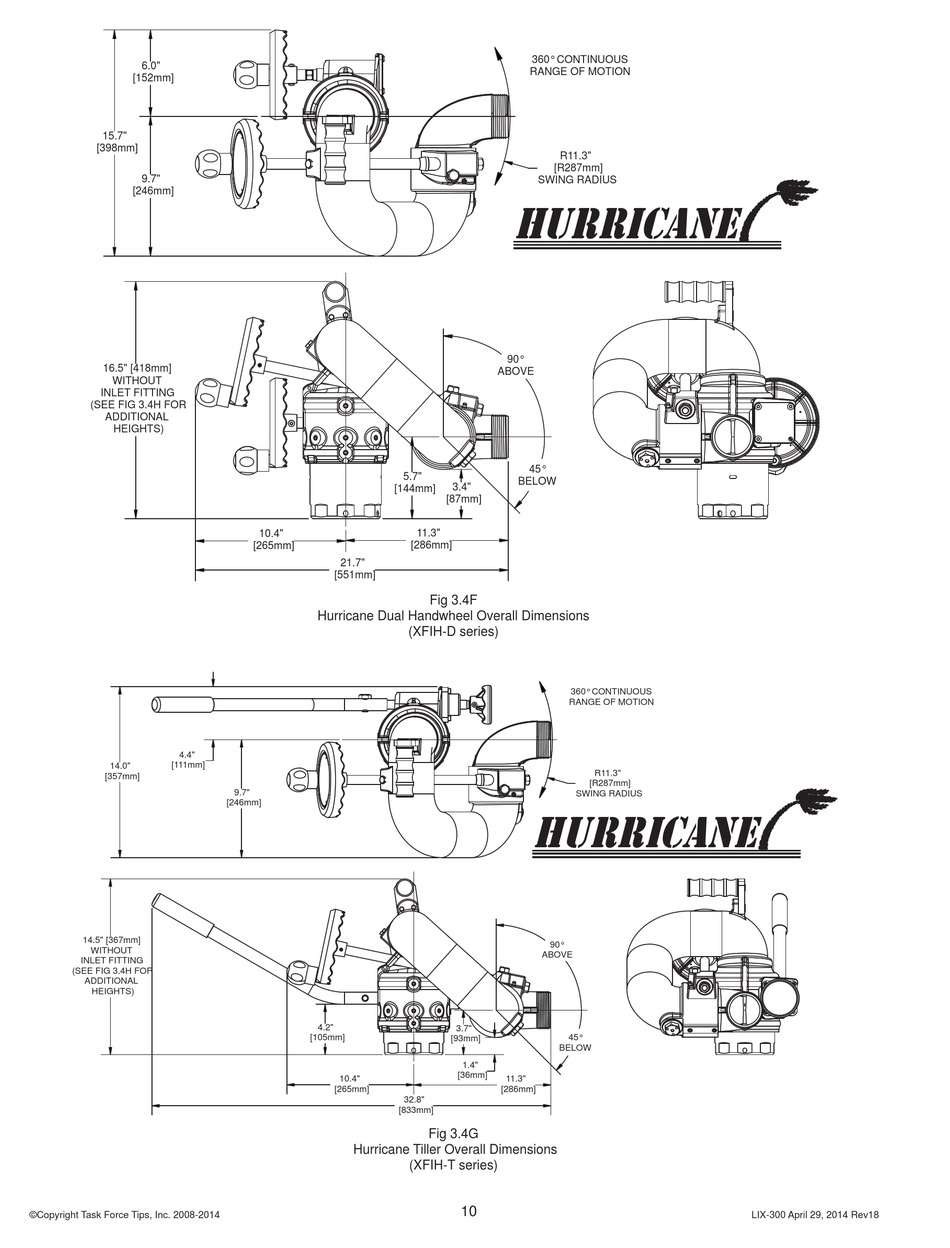

Hurricane Dual Handwheel Overall Dimensions
9.7"
[246mm]
4.2"
[105mm]
10.4"
[265mm]
[833mm]
Hurricane Tiller Overall Dimensions
360° CONTINUOUS
RANGE OF MOTION
R11.3"
[R287mm]
SWING RADIUS
hurricane
90°
ABOVE
45°
BELOW
3.4"
[87mm]
11.3"
[286mm]
Fig 3.4F
(XFIH-D series)
360° CONTINUOUS
RANGE OF MOTION
SWING RADIUS
hurricane
90°
ABOVE
3.7"
45°
[93mm]
BELOW
1.4"
[36mm]
11.3"
[286mm]
32.8"
Fig 3.4G
(XFIH-T series)
