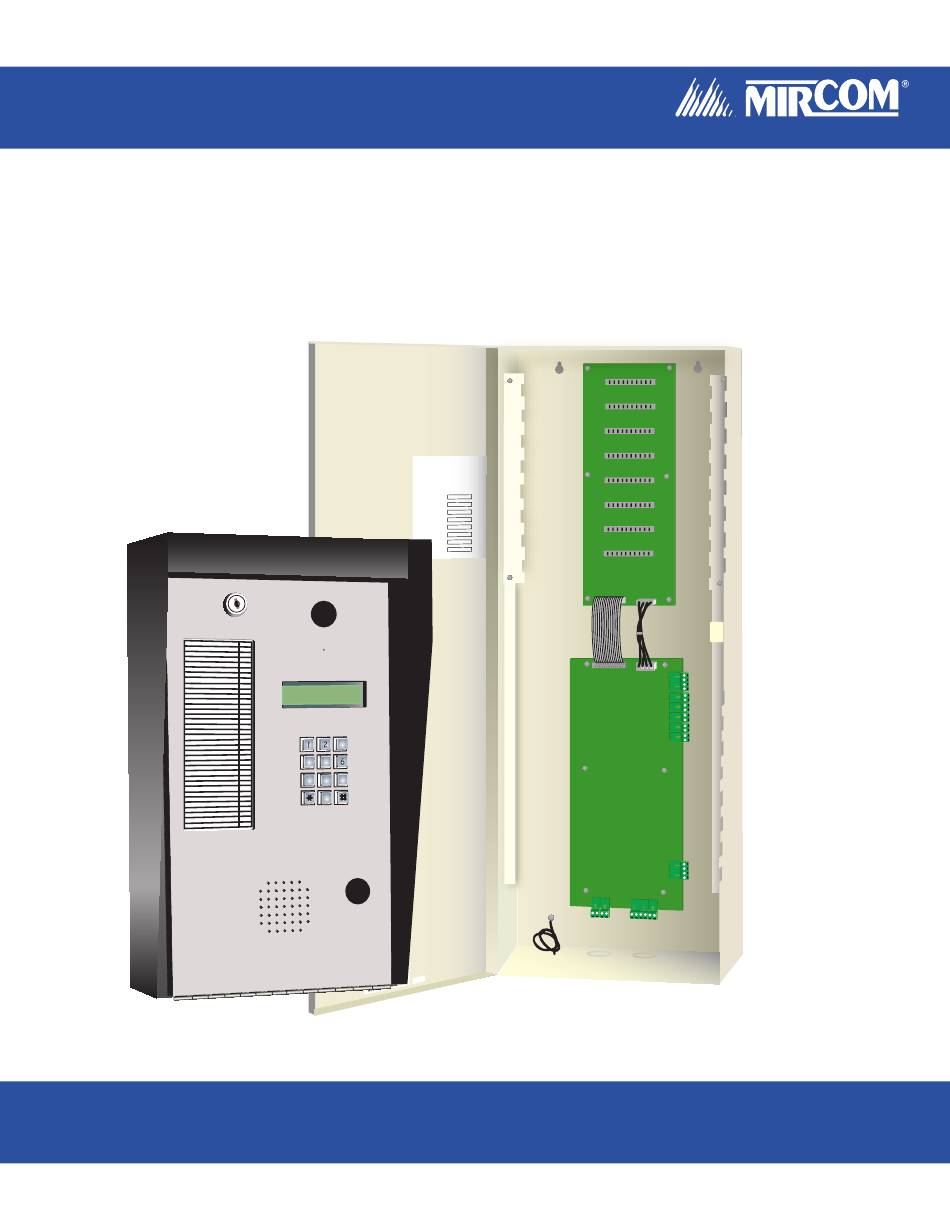

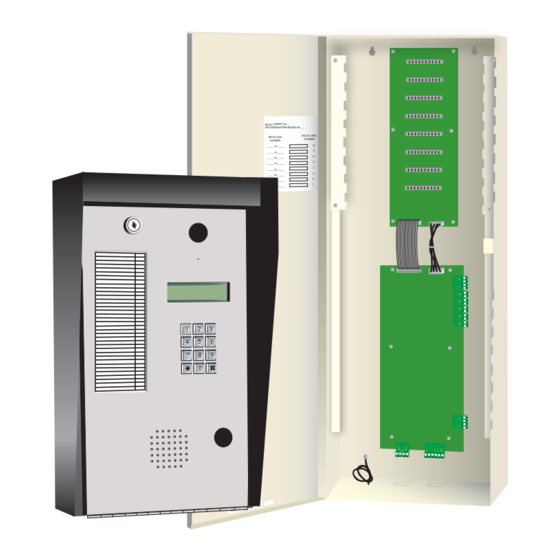

TAS-2000 SERIES
NSL Telephone Access System
User Guide
RELAY CABINET No. __
DECODER/MOTHER BOARD No. __
RELAY CARD
RELAY/LINE
NUMBER
NUMBER
8
_____ to _____
7
_____ to _____
6
_____ to _____
5
_____ to _____
4
_____ to _____
3
_____ to _____
2
_____ to _____
1
_____ to _____
3
5
4
7
8
9
0
Advanced Life Safety Solutions
LT-956 Rev. 0
April 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAS-2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mircom TAS-2000 Series

Summary of Contents for Mircom TAS-2000 Series

  • Page 1 Advanced Life Safety Solutions TAS-2000 SERIES NSL Telephone Access System RELAY CABINET No. __ DECODER/MOTHER BOARD No. __ RELAY CARD RELAY/LINE NUMBER NUMBER _____ to _____ _____ to _____ _____ to _____ _____ to _____ _____ to _____ _____ to _____...

  • Page 3: Table Of Contents

    TAS-2000 NSL System User’s Guide Contents Introduction ..........................1 About this Manual ........................ 1 Determining the Type of TAS-2000 Directory You Have ............. 1 Technical Support ........................ 1 Keypad Navigation ....................... 2 Entering Programming Mode ....................2 Exiting Programming Mode....................3 Part 1: Non-Scrolling Directory Programming Programming ...........................

  • Page 5: Introduction

    Either way, if you see the above message on your display, then you have a scrolling directory. Technical Support For all technical support inquiries, please contact Mircom’s Technical Support Department between 8 A.M. and 5 P.M. (EST) Monday through Friday, excluding holidays. Local Phone: 905-695-3535...

  • Page 6: Keypad Navigation

    Introduction Keypad Navigation The diagram below shows how to use the keypad when in programming mode. It applies to both Scrolling and Non-Scrolling Directory keypads. Press to enter a record when in edit mode or to delete a record when in delete mode Press to exit the...

  • Page 7: Exiting Programming Mode

    TAS-2000 NSL System User’s Guide Exiting Programming Mode To exit programming mode, you must first be in the programming menu. If you are not in the programming menu, use the keypad navigation diagram to exit from the mode you are currently in. Exiting Programming Mode Press to scroll down until the arrow is beside...
  • Page 8 Introduction...

  • Page 9: Part 1: Non-Scrolling Directory Programming

    Part 1: Non-Scrolling Directory Programming...

  • Page 10: Programming

    Programming Programming Adding New Records To add a new record, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Enter Add New Record mode >Add New Record Press to add a new record. The display enters Add Edit Record New Record mode.
  • Page 11 TAS-2000 NSL System User’s Guide Step 7: Enter Keyless Code • If keyless codes are being used, enter the 4-digit Enter Keyless Code code. Press to save and continue. [ _ _ _ _ ] • If keyless codes are not being used, press save and continue.

  • Page 12: Editing Records

    Programming Editing Records To edit a record, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions Step 1: Enter Edit Record mode 1. Press (scroll up) or (scroll down). Add New Record >Edit Record 2.
  • Page 13 TAS-2000 NSL System User’s Guide Step 7: Enter Elevator ID • If elevator ID is not being used, press Enter Elevator ID continue. [ _ _ ] • If elevator ID is being used, please contact your technician for assistance. Step 8: Enter Keyless Code •...

  • Page 14: Deleting Records

    Programming Deleting Records To delete a record, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Enter “Delete Record” mode 1. Press (scroll up) or (scroll down) to find Edit Record “Delete record”.

  • Page 15: Setting Main And Aux Door Dtmf

    TAS-2000 NSL System User’s Guide Setting Main and Aux Door DTMF To set the main and aux door DTMF, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Main Door DTMF setup Step 1: Select Main Door DTMF setup 1.

  • Page 16: Setting The Online And Door Timers

    Programming Setting the Online and Door Timers To set the online and door timers, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Online Timer setup Step 1: Select Online Timer setup 1. Press (scroll up) or (scroll down) to find >Online Timer...

  • Page 17: Changing Your Password

    TAS-2000 NSL System User’s Guide Changing Your Password To change your password, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Select “Change Password” Press (scroll up) or (scroll down) to find “Change Password”.
  • Page 18 Programming...

  • Page 19: Part 2: Scrolling Directory Programming

    Part 2: Scrolling Directory Programming...

  • Page 20: Entering Names

    Entering Names Entering Names To enter a name, use the number keys to select the appropriate character. See the diagram below for the characters that correspond to each number. To select a character, press any number key once, twice, or three times to cycle through the character associated with that key (Note: you will not see the characters on the display as they cycle).

  • Page 21: Programming

    TAS-2000 NSL System User’s Guide Programming Adding New Records To add a new record, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Enter Add New Record mode >Add New Record Press to add a new record.
  • Page 22 Programming Step 8: Enter Keyless Code • If keyless codes are being used, enter the 4-digit Enter Keyless Code code. Press to save and continue. [ _ _ _ _ ] • If keyless codes are not being used, press save and continue.

  • Page 23: Editing Records

    TAS-2000 NSL System User’s Guide Editing Records To edit a record, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Enter Edit Record mode 1. Press (scroll up) or (scroll down). Add New Record >Edit Record 2.
  • Page 24 Programming Step 7: Enter Elevator Code • If elevator control is not being used, press Enter Elevator Code continue. [ _ _ ] • If elevator control is being used, please contact your technician for assistance. Step 8: Enter Elevator ID •...

  • Page 25: Deleting Records

    TAS-2000 NSL System User’s Guide Deleting Records To delete a record, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Enter “Delete Record” mode 1. Press (scroll up) or (scroll down) to find Edit Record “Delete record”.

  • Page 26: Setting Main And Aux Door Dtmf

    Programming Setting Main and Aux Door DTMF To set the main and aux door DTMF, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Main Door DTMF setup Step 1: Select Main Door DTMF setup 1.

  • Page 27: Setting The Online And Door Timers

    TAS-2000 NSL System User’s Guide Setting the Online and Door Timers To set the online and door timers, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Online Timer setup Step 1: Select Online Timer setup 1.

  • Page 28: Changing Your Password

    Programming Changing Your Password To change your password, you must be in Programming Mode. Refer to Entering Programming Mode on page 2 for instructions. Step 1: Select “Change Password” 1. Press (scroll up) or (scroll down) to find “Change Password”. Door Timer >Change Password 2.

  • Page 29: Glossary

    TAS-2000 NSL System User’s Guide Glossary Add Record This function is used to add a new resident to the system. Aux Door When this function is set, the resident can press a number on his or her telephone pad to release the aux door. Delete Record This function is used to delete the an entire resident record from the system.
  • Page 30 Glossary...

  • Page 31: Frequently Asked Questions

    TAS-2000 NSL System User’s Guide Frequently Asked Questions Q. What is the NSL feature? A. The NSL (No Subscriber Line) operation does not use a dedicated public subscribed telephone line; rather the 2008M NSL Units (and 2008/16 NSL Expanders) in your electrical/telephone room intercept all tenant telephone lines coming into the building and communicate directly to them.
  • Page 32 Q. I misplaced the key for the telephone access system. How do I obtain a replacement? A. The Mircom key part number is LK-304. Contact your local distributor or Mircom Head Office for a replacement. Q. What happens when the visitor gets an answering machine when trying to contact a tenant? A.

  • Page 33: Resident Directory Worksheet

    TAS-2000 NSL System User’s Guide Resident Directory Worksheet For your records, photocopy this sheet and fill in the resident information. Phone Unit No. Keyless Type Dial Relay Resident’s Name Entry Code Number (pulse or Code Flr. Apt. tone)

  • Page 34: Tas-2000 Nsl System Resident Operating Instructions

    TAS-2000 NSL System Resident Operating Instructions Mircom's state-of-the-art door entry system has been installed in this building to provide you and your guest with an increased level of confidence and security. The system operates with your existing telephone. Your guest...
  • Page 36 Advanced Life Safety Solutions Canada U.S.A. © Mircom 2005 Printed in Canada 25 Interchange Way 60 Industrial Parkway Subject to change without prior notice Vaughan, ON L4K 5W3 Cheektowaga, NY 14227 Tel: 1-888-660-4655 Fax: 1-888-660-4113 www.mircom.com Tel: 905-660-4655 Fax: 905-660-4113...
