Installation Manual

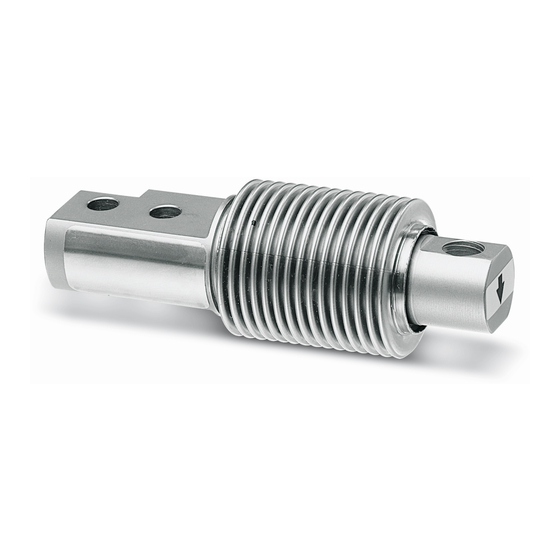

Beam Type Load Cell PR 6207
Translation of the Original Installation Manual
9499 053 17400
Edition 1.6.0
04/21/2020
Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany
Phone: +49.40.67960.303 Fax: +49.40.67960.383

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR 6207 and is the answer not in the manual?

Questions and answers

Related Manuals for Minebea Intec PR 6207

Summary of Contents for Minebea Intec PR 6207

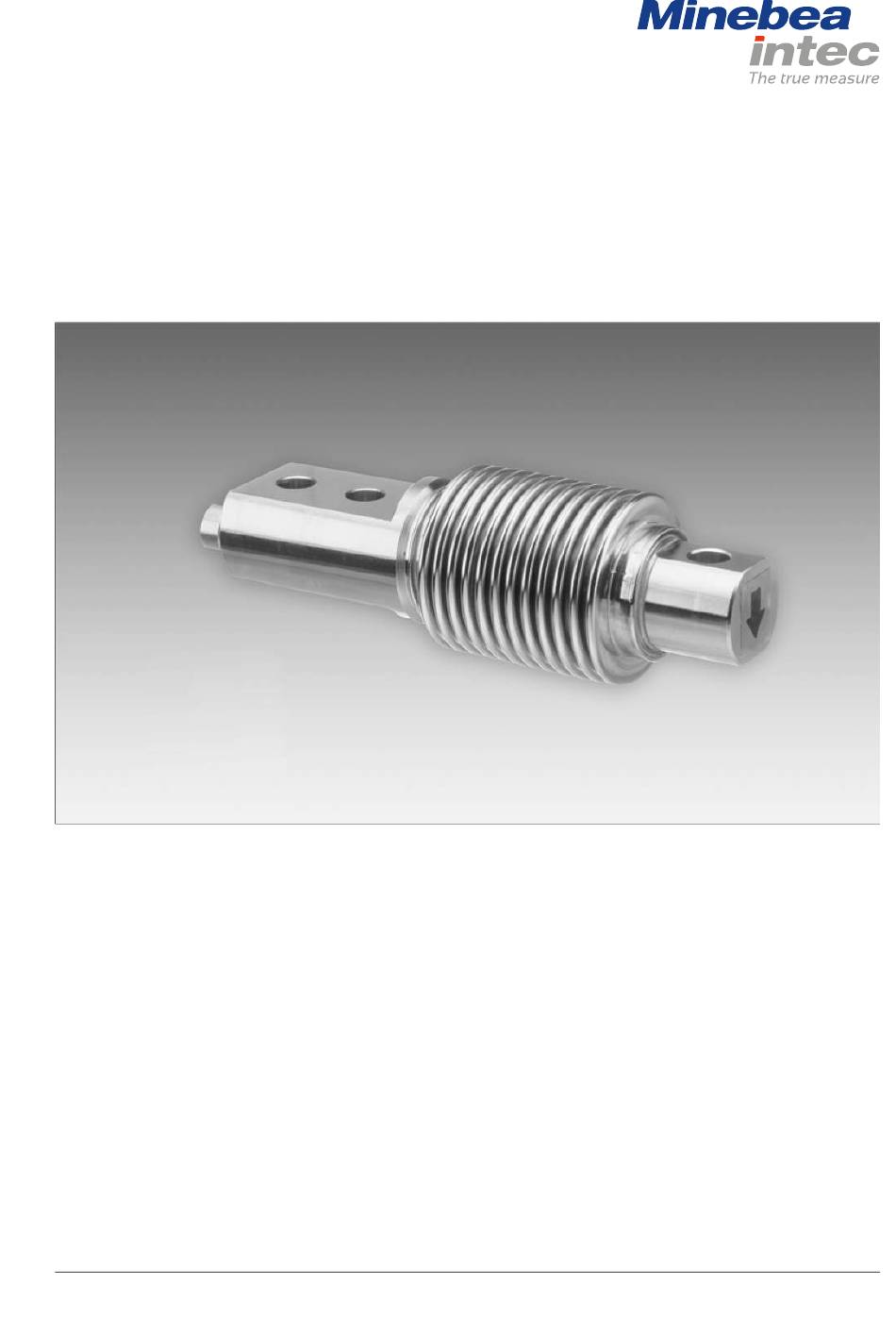

  • Page 1 Installation Manual Beam Type Load Cell PR 6207 Translation of the Original Installation Manual 9499 053 17400 Edition 1.6.0 04/21/2020 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
  • Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualiied personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.

  • Page 3: Table Of Contents

    Beam Type Load Cell PR 6207 Table of contents Table of contents Introduction............................3 Read the manual................................. 3 This is what operating instructions look like ......................3 This is what lists look like............................3 This is what menu items and softkeys look like..................... 3 This is what the safety instructions look like......................
  • Page 4 Beam Type Load Cell PR 6207 Table of contents Preparing for calibration........................20 General notes ................................20 Smart Calibration..............................20 Mechanical height adaptation..........................20 Troubleshooting ..........................21 General Notes................................21 Visual inspection................................21 Metrological controls ..............................21 8.3.1 Checking the zero output signal of the load cell..................21 8.3.2 Checking the strain gauge bridge of the load cell ..................21...

  • Page 5: Introduction

    1 Introduction Beam Type Load Cell PR 6207 Introduction Read the manual Please read this manual carefully and completely before using the product. This manual is part of the product. Keep it in a safe and easily accessible location. This is what operating instructions look like 1.

  • Page 6: Hotline

    Beam Type Load Cell PR 6207 1 Introduction NOTICE Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions.

  • Page 7: Safety Instructions

    Intended use The load cell PR 6207 has been designed especially for weighing process vessels and use in beltweighers and platform weighers. When combined with Mounting Kit PR 6007, it compensates for movements caused by mechanical or thermal contraction or expansion of the vessel and/or the supporting construction.

  • Page 8: Recommendations For Installation

    Beam Type Load Cell PR 6207 3 Recommendations for installation Recommendations for installation Load cell and constrainer arrangement Examples: The supporting construction of the scale (and thus the load cells) and the vessel must be stable enough to withstand the speciied loads, horizontal (check with spirit level!) and lat.

  • Page 9: Selecting Maximum Capacity

    3 Recommendations for installation Beam Type Load Cell PR 6207 incoming lines coupled to the object at the level of the suspension point bear the constraining work. The incoming lines must be horizontally rigid and vertically lexible in this case.

  • Page 10: Speciications

    Beam Type Load Cell PR 6207 4 Speciications 4 Speciications Equipment supplied with the load cell Description Flexible copper strap Load cell Installation Manual General information Load cell material Stainless steel 1.4122 acc. to DIN EN 10088-3 Bellows material Stainless steel 1.4541 acc. to DIN EN 10088-3 Protection against en- Hermetically sealed by welding.

  • Page 11: Dimensions

    4 Speciications Beam Type Load Cell PR 6207 4.4 Dimensions all dimensions in mm Ordering information Model Max. capacity Type PR 6207/11 10 kg ..D1/C3 PR 6207/21 20 kg ..D1/C3 PR 6207/51 50 kg ..D1/C3 PR 6207/12 100 kg ..D1/C3...
  • Page 12 Beam Type Load Cell PR 6207 4 Speciications Designation Description Abbr. Unit Minimum LC veriica- minimum load cell scale interval, v 2778 11111 tion Rated output relative output at maximum capacity mV/V Tolerance on rated permissible deviation from rated out- <(+1.0...

  • Page 13: Pr 6007/00 Mounting Kit

    4 Speciications Beam Type Load Cell PR 6207 PR 6007/00 Mounting kit 4.7.1 Setting up the PR 6007/00 mounting kit Note: The mounting kit is not included in the equipment supplied with your load cell. Order no. of PR 6007/00 mounting kit, see Chapter 11.2.1.

  • Page 14: Dimensions Of Pr 6007/00 Mounting Kit

    Beam Type Load Cell PR 6207 4 Speciications 4.7.2 Dimensions of PR 6007/00 mounting kit all dimensions in mm EN-12 Minebea Intec...

  • Page 15: Installation

    5 Installation Beam Type Load Cell PR 6207 Installation Safety instructions NOTICE Welding or lightning strike current lowing through the cell can damage it. All electrical welding on the weighing system must be inished before mounting the load cells. When installing the load cell, immediately bypass the load cell with the lexible copper strap provided for this purpose (included in the equipment supplied, see Chapter 4.1).

  • Page 16: Mounting Without Mounting Kit

    Beam Type Load Cell PR 6207 5 Installation Mounting without mounting kit If the load cell is mounted without the mounting kit, the cell must be screwed onto a corresponding holder in accordance with the load direction (arrow on the face of the load cell).

  • Page 17: Assembly

    5 Installation Beam Type Load Cell PR 6207 Description Base plate M6 locking screw M6 nut Benchtop Flexible copper strap Steel cable M8 nut Cotter pin 2×16 Conical seat Rounded washer M8 crown nut M8 nut M8×35 screw B8.4 spring washer 8.4 washer...

  • Page 18: Coniguring Overload Protection

    Beam Type Load Cell PR 6207 5 Installation 6. Lift up the weighing object (e.g. vessel) and attach the cable set (7…14, 17). Ensure correct positioning of the conical seat (11) and rounded washer (12). 7. Secure the nut (13) with the self-locking nut (14).

  • Page 19: Connection

    6 Connection Beam Type Load Cell PR 6207 Connection General information NOTICE The load cell cable end is protected against contamination and moisture by a protective sheathing. The protective sheathing should only be removed shortly before connecting! Protect the cable ends against contamination. Moisture must not get into the open end of the cable.

  • Page 20: Cable Connections

    Beam Type Load Cell PR 6207 6 Connection Cable connections Note: All components are only shown schematically. Color code black blue green gray white yellow Note: The jumpers "J1" and "J2" between the terminals "Sense -/Supply -" and "Sense +/Supply +" must be opened.
  • Page 21 6 Connection Beam Type Load Cell PR 6207 Minebea Intec EN-19...

  • Page 22: Preparing For Calibration

    For calibration of the measuring system, please refer to the manual of the corresponding indicator. Smart Calibration When using Minebea Intec devices, we recommend always running "Smart Calibration" irst. This allows all required values to be extracted from the Calibration Certiicate supplied.

  • Page 23: Troubleshooting

    8 Troubleshooting Beam Type Load Cell PR 6207 Troubleshooting General Notes The following hints will enable a technician to do an initial diagnostic or help in case of incorrect or non-reproducible weighing results after commissioning and calibration. Visual inspection Component...

  • Page 24: Checking The Insulation Impedance Of The Load Cell

    Beam Type Load Cell PR 6207 8 Troubleshooting Max. test voltage Standard version U = 18 V Type Input impedance Output impedance 4-conductor: red core, blue 4-conductor: green core, gray core core 6-conductor: white core, red core 6-conductor: blue core, black core 350 Ω...

  • Page 25: Maintenance/Repairs/Cleaning

    Of-shore all-weather protection spray can be applied extensively to the load cell in aggressive environments. Repairs The load cell PR 6207 is designed to be as robust as possible for the required measuring accuracy and is highly reliable. Should an electrical or mechanical defect nevertheless occur, the load cell must be replaced.

  • Page 26: Disposal

    Beam Type Load Cell PR 6207 10 Disposal 10 Disposal If the packaging is no longer required, please take it to your local waste disposal facility and/or a reputable disposal company or collection point. The packaging largely consists of environmentally friendly materials which can be used as secondary raw materials.

  • Page 27: Spare Parts And Accessories

    11 Spare parts and accessories Beam Type Load Cell PR 6207 11 Spare parts and accessories 11.1 Replacement parts Description Max. capacity Order no. Flexible copper thread, 400 mm long 5312 321 28057 Complete steel cable 10…200 kg 5322 693 90573 11.2 Accessories...

  • Page 28: Appendix

    Beam Type Load Cell PR 6207 12 Appendix 12 Appendix 12.1 Certiicates Ser. no. Description Document no. Manufacturer's Certiicate MIN16ATEX001X EU-Declaration of Conformity MEU19019 Declaration of Conformity MDC17003 Certiicate of Conformity TR CU 020 RU Д-DE.A301.B.05345 Test Certiicate (PTB) 1.13-93.327...
  • Page 33 (bg) čeština (Мs) dansk (da) Д Prohlпšenъ o shoНě Overensstemmelseserklæring ή ή 1έ εoНel výrobku ή čъslo výrobku ή platnц pouгe 1έ 1. Produktmodel / produktnummer / gælder kun μ pro čъslo projektuμ for projektnummer: 2έ 2. Jméno a adresa výrobce (2.1) a jeho 2.
  • Page 34 eesti keel (et) français (fr) hrvatski (hr) Vastavusdeklaratsioon Déclaration de conformité Izjava o sukladnosti 1. Tootemudel / tootenumber / kehtib vaid 1. Modèle / numéro de produit / valable 1. Model proizvoda / broj proizvoda / vrijedi järgmise projekti puhul: uniquement pour le numéro de projet: samo za broj projekta: 2έ...
  • Page 35 latviešu valoНa (lv) malti (mt) nederlands (nl) Atbilstības НeklarāМija ϊikjaraггjoni ta’ konformitр Conformiteitsverklaring 1έ ProНukta moНelis ή proНukta numurs ή Нerīgs 1. Mudell tal-prodott / numru tal-prodott / validu 1. Productmodel / productnummer / uitsluitend biss għan-numru tal-proġettμ tikai projektam Nr.: geldig voor projectnummer: 2έ...
  • Page 36 slovenčina (sk) slovenščina (sl) suomi (fi) Vyhlásenie o zhode Izjava o skladnosti Vaatimustenmukaisuusvakuutus 1έ εoНel výrobku ή čъslo výrobku ή platnц len pre 1. Model proizvoНa ή serijska številka proiгvoНa ή 1. Tuotemalli / tuotenumero / koskee vain čъslo projektuμ veljavno samo гa številko projektaμ...
  • Page 46 Published by Minebea Intec GmbH | Meiendorfer Strasse 205 A | 22145 Hamburg, Germany Phone: +49.40.67960.303 | Email: info@minebea-intec.com www.minebea-intec.com...
