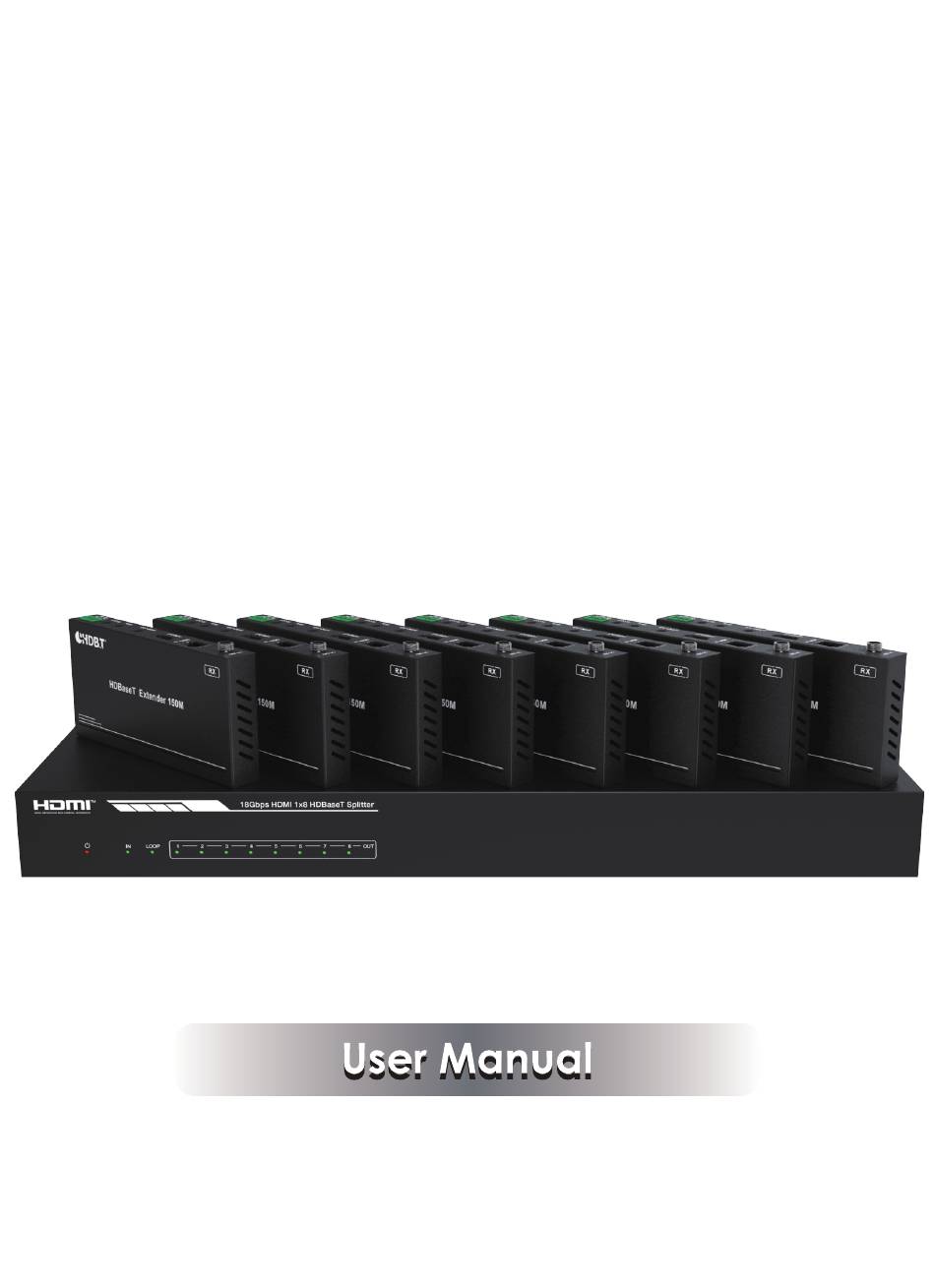

  • Page 1 BG-UDA-E18 18Gbps HDMI 1×8 HDBaseT Splitter VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The BG-UDS-E18 is an 18Gbps HDMI 1x8 HDBaseT Splitter that can distribute 1 source signal to any 8 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP 2.2/1.x HDCP Compliance Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Support HDR, HDR10+, HLG, Dolby vision LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, HDMI Audio Formats Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,...

  • Page 5: Operation Controls And Functions

    Mechanical Housing Metal Enclosure Silkscreen Color Black Transmitter: 440mm (W) × 130mm (D) × 44mm (H) Dimensions Receiver: 140mm (W) × 65mm (D) × 18mm (H) Transmitter: 1.62kg Weight Receiver: 246g Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption Operation...
  • Page 6 Rear Panel AUDIO OUT HDBT OUTPUT LOOP OUT EDID HDMI RS-232 DC 24V Name Function Description EDID DIP Used to set EDID mode. Please refer to Section “6. EDID Mode” for details. switch Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: 1, Firmware update;...

  • Page 7: Hdbaset Receiver

    5.2 HDBaseT Receiver SERVICE HDMI OUT AUDIO OUT IR IN IR OUT Name Function Description When the receiver is powered on, the power indicator will Power Indicator be on. Used for firmware update. SERVICE port Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet.

  • Page 8: Ir Pin Definition

    5.3 IR Pin Definition IR Receiver IR Blaster IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding...

  • Page 9: Edid Mode

    6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001...

  • Page 10: Ascii Commands

    7. ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below.
  • Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable hdmi loop out Set hdmi loop output stream stream on/off s hdmi stream z! s hdmi stream 1 ! enable Disable hdmi loop out z=0~1(0:disable,1:enable) stream Enable hdmi loop out Set hdmi loop output hdcp on/ hdcp enable...
  • Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~32 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
  • Page 13 Command Code Function Description Example Feedback Default Setting s edid user1 00 s edid user1 00 user1 EDID data: 00 Set user1 EDID data FF FF FF FF …! ff ff ff ff …. ! FF FF …. user1 EDID data : 00 r edid user1! Get user1 EDID data r edid user1!

  • Page 14: Application Example

    8. Application Example DVD or Blu-ray Player UHDTV IR Receiver IR Blaster Transmitter HDBT OUTPUT AUDIO OUT LOOP OUT EDID HDMI RS-232 DC 24V Speakers Power Supply Cat 6/6a/7 IR Receiver Amplifier Receiver HDMI OUT AUDIO OUT IR IN IR OUT HDMI Matrix with RS-232 function Speakers...
