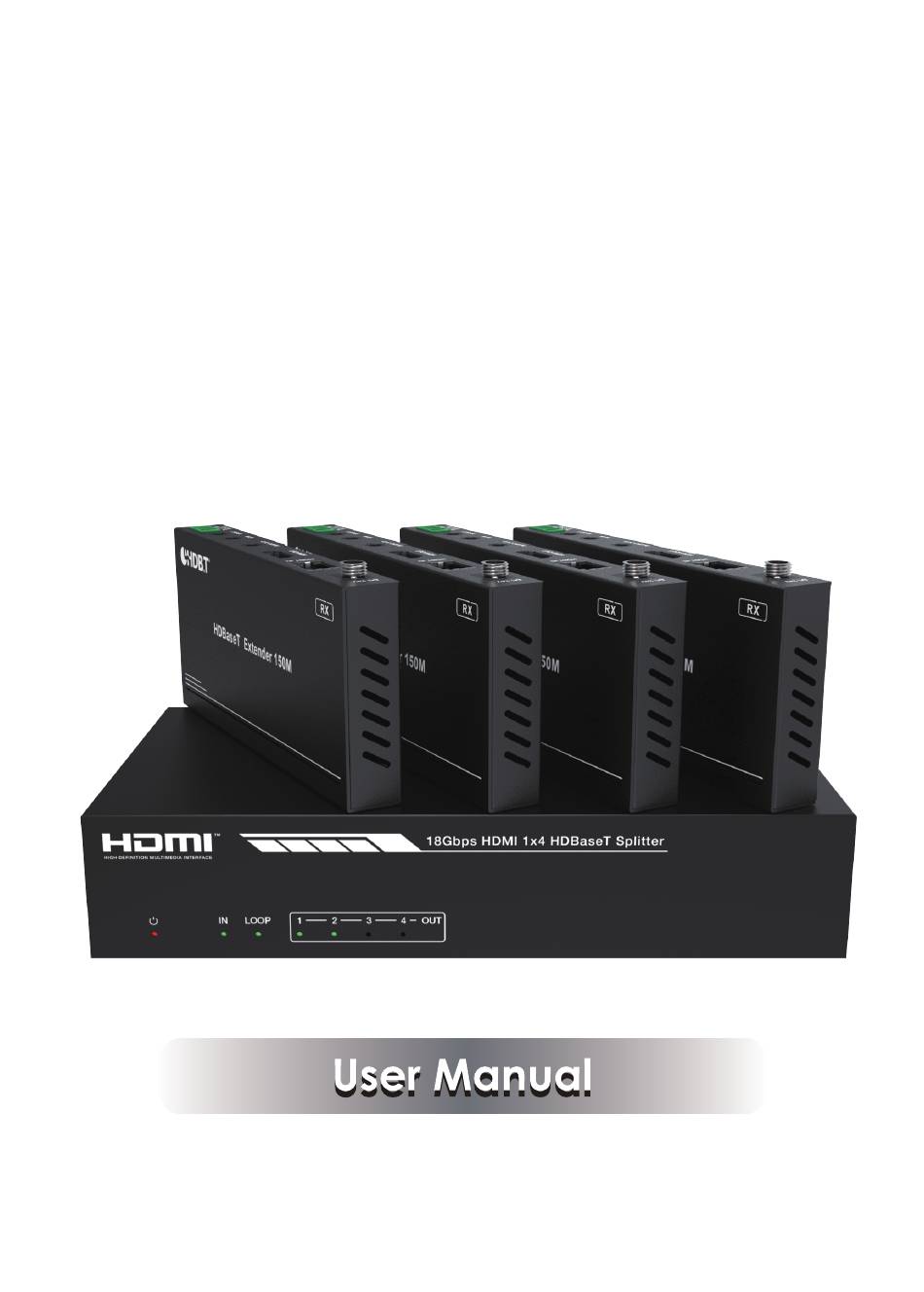

- Page 1 BG-UDA-E14 18Gbps HDMI 1×4 HDBaseT Splitter VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BG-UDA-E14 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP 2.2/1.x HDCP Compliance Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Support HDR, HDR10+, HLG, Dolby vision LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, HDMI Audio Formats Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Silkscreen Color Black Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Dimensions Receiver: 140mm (W) × 65mm (D) × 18mm (H) Transmitter: 853g Weight Receiver: 246g Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption Operation... - Page 6 Rear Panel AUDIO OUT RS-232 HDBT OUTPUT LOOP OUT EDID HDMI DC 24V Name Function Description Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: 1, Firmware update; RS-232 2, Control the Splitter via RS-232 commands; 3, RS-232 signal pass-through (from transmitter to receiver or from receiver to transmitter).
-
Page 7: Hdbaset Receiver
Plug the DC 24V power supply into the unit and connect the adaptor to an AC outlet. (Note: The transmitter can DC 24V power the receiver via a CAT cable.) 5.2 HDBaseT Receiver SERVICE IR IN IR OUT HDMI OUT AUDIO OUT Name Function Description... -
Page 8: Ir Pin Definition
5.3 IR Pin Definition IR Receiver IR Blaster IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding... -
Page 9: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001... -
Page 10: Ascii Commands
7. ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. - Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable hdmi loop out Set hdmi loop output stream stream on/off s hdmi stream z! s hdmi stream 1 ! enable Disable hdmi loop out z=0~1(0:disable,1:enable) stream Enable hdmi loop out Set hdmi loop output hdcp on/ hdcp enable...
- Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~27 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
- Page 13 Command Code Function Description Example Feedback Default Setting RS-232 BYPASS Setting Set RS-232 port connect to RS-232 connect to s rs232 bypass HDBT out1 Receiver RS-232 s rs232 bypass HDBT OUT1 port, y=0~5( 0=all, hdbt 1! hdbt y! RS-232 not connect 1~4= hdbt out 1~4 5=NC) to HDBT OUT RS-232 connect to...
-
Page 14: Application Example
8. Application Example Amplifier IR Receiver IR Blaster 2.0 Speakers Transmitter AUDIO OUT RS-232 HDBT OUTPUT LOOP OUT EDID HDMI DC 24V Cat 6/6a/7 Power Supply UHDTV Receiver DVD or Blu-ray Player HDMI OUT AUDIO OUT IR IN IR OUT 2.0 Speakers IR Receiver HDMI Matrix with...
