BZB Gear BG-DA-1X8C50M User Manual

Hdmi splitter 1x8 over cat5e/cat6 50m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BG-DA-1X8C50M
HDMI Splitter 1x8
Over CAT5E/CAT6 50m
1 / 11

Advertisement

Table of Contents
loading

Related Manuals for BZB Gear BG-DA-1X8C50M

Summary of Contents for BZB Gear BG-DA-1X8C50M

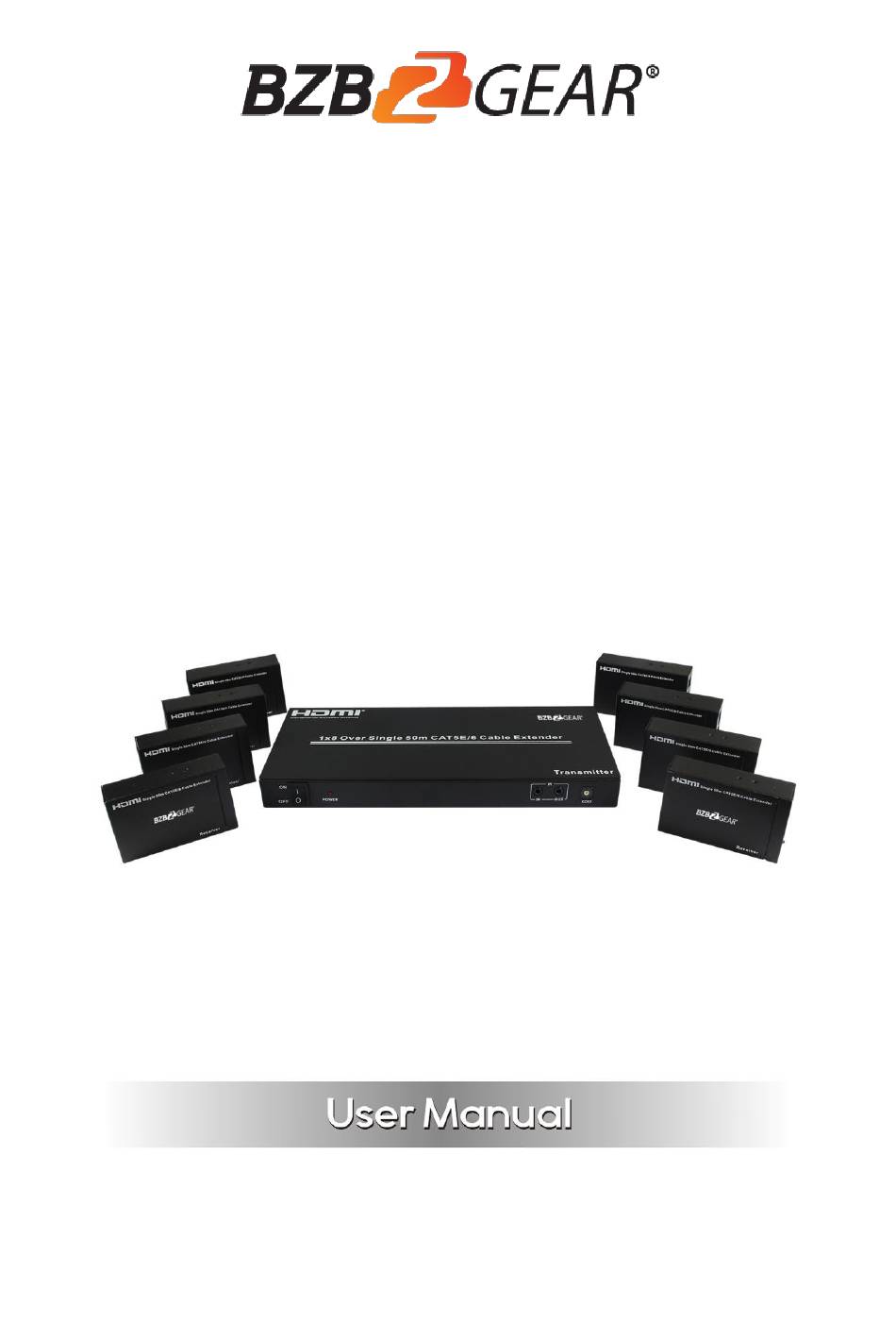

  • Page 1 BG-DA-1X8C50M HDMI Splitter 1x8 Over CAT5E/CAT6 50m 1 / 11...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by Internet cable. The splitter supports resolutions up to 1080p@60Hz, and supports smart EDID management.

  • Page 4: Specifications

    4. Specifications Technical Maximum Pixel Clock 165 MHz Supports video resolutions 1080p@60Hz up to Human body model — ±8kV (air-gap discharge) & ESD Protection ±4kV (contact discharge) Power Supply DC 12V 2.5A HDMI Splitter Input Ports 1x HDMI, 1xMini USB Output Ports 1xHDMI, 8xRJ45, 1xIR out Receiver...

  • Page 5: Receiver

    HDMI OUT: Local HDMI loop output port. HDMI IN: HDMI Input port. Connect source with HDMI cable. IR OUT: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled.
  • Page 6 ※See the description 1 EDID Control Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display.
  • Page 7 EDID TABLE: Position EDID Description 1080p, 2CH AUDIO 1080p, DOLBY/DTS 5.1 1080p, HD AUDIO 1080i, 2CH AUDIO 1080i, DOLBY/DTS 5.1 1080i, HD AUDIO 3D,1080p, 2CH AUDIO 3D, 1080p,DOLBY/DTS 5.1 3D,1080p, HD AUDIO Copy EDID from the Transmitter HDMI loop out 1080p, 2CH AUDIO 1080p, 2CH AUDIO 1080i, 2CH AUDIO...
  • Page 8 MIN to MAX until ideal video quality displayed. Recommended EQ setting Position Cable Length under 15m (49.5ft) 15-30m (49.5 ft - 99ft) 30-40m (99ft - 132ft) 40-50m( 132ft – 164ft) Wideband IR (30KHz---60KHz) introduction IR Cable Pin Assignment Control local device (Blu-ray player or DVD player, etc.) from remote: The IR Receiver is connected to the receiver IR in port.

  • Page 9: Connection Diagram

    6. Connection Diagram 1.Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an` HDTV or HD Projector to the HDMI output on the Receiving unit.

  • Page 10: Warranty

    7. Warranty BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1.

  • Page 11: Mission Statement

    8. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
