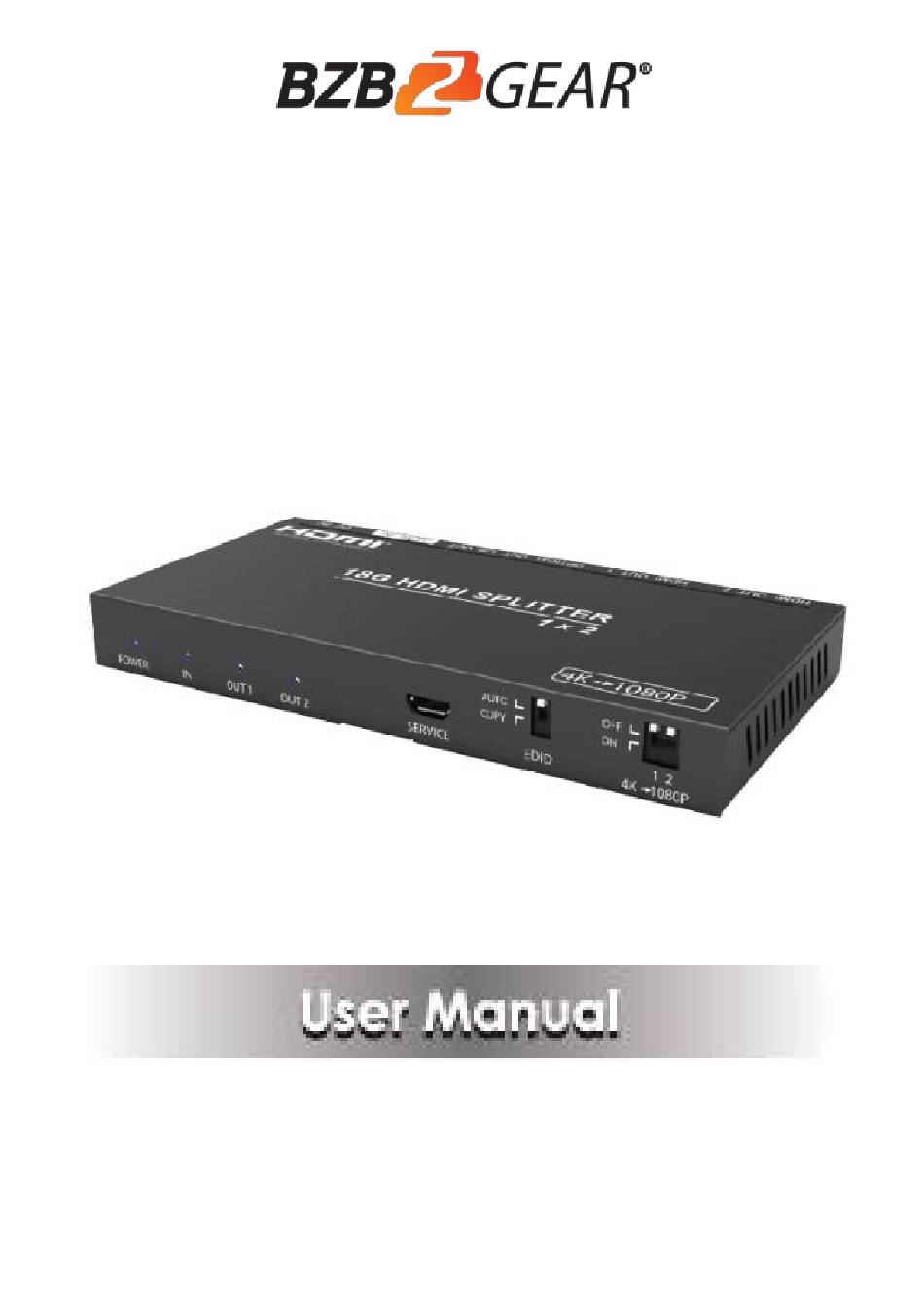

- Page 1 BG-DA-1x2AS 1x2 HDMI 2.0 Splitter with Scaler/Audio Extract...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ................4 2. Features ................4 3. Package Contents ..............5 4. Specifications ..............5 5.Operation Controls and Functions ........6 5.1 Front Panel ..............6 5.2 Rear Panel ..............8 6. Application Example ............9 7. Warranty ................10 8. Mission Statement ............11... -
Page 4: Introduction
1. Introduction The 1x2 HDMI 2.0 Splitter simultaneously routes one HDMI source to two HDMI displays. It supports resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from an HDMI source to optical/analog outputs. Output supports bypass and downscaler (4K->1080P) function. 2. -
Page 5: Package Contents
and outputs the best resolution to all outputs). ☆ Supports HDMI audio formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD 3. Package Contents ① 1× 1×2 HDMI 2.0 Splitter ② 1× 5V/1A Power Adapter ③... -
Page 6: Operation Controls And Functions
(Contact discharge) Connections Input ports 1×HDMI Type A [19-pin female] Output ports 2×HDMI Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] Mechanical Housing Metal Enclosure Color Black Dimensions 120mm(W)×62.5mm(D)×14mm(H) Weight 166g Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption... - Page 7 Number Name Function description This blue LED will illuminate when the unit has POWER LED a connected power supply. This blue LED will illuminate when the HDMI HDMI IN has connected an active HDMI source INPUT LED device with an HDMI cable. HDMI These blue LEDs will illuminate when the OUTPUT...
-
Page 8: Rear Panel
5.2 Rear Panel Number Name Function description HDMI Connect to HDMI display device such as TV or OUTPUT monitor. OPTICAL Optical audio output. L/R OUT Analog audio output. HDMI IN Connect to HDMI source device such as Blu-ray player or PS4. DC 5V Plug the 5V/1A DC power supply into the unit and connect the adapter to an AC outlet. -
Page 9: Application Example
6. Application Example... -
Page 10: Warranty
7. Warranty BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1. -
Page 11: Mission Statement
8. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
