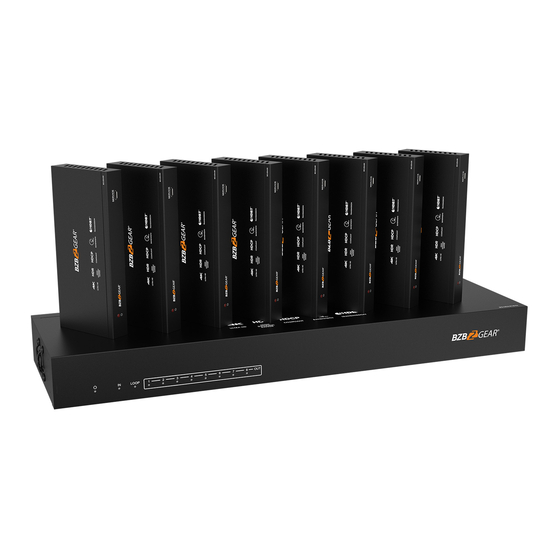

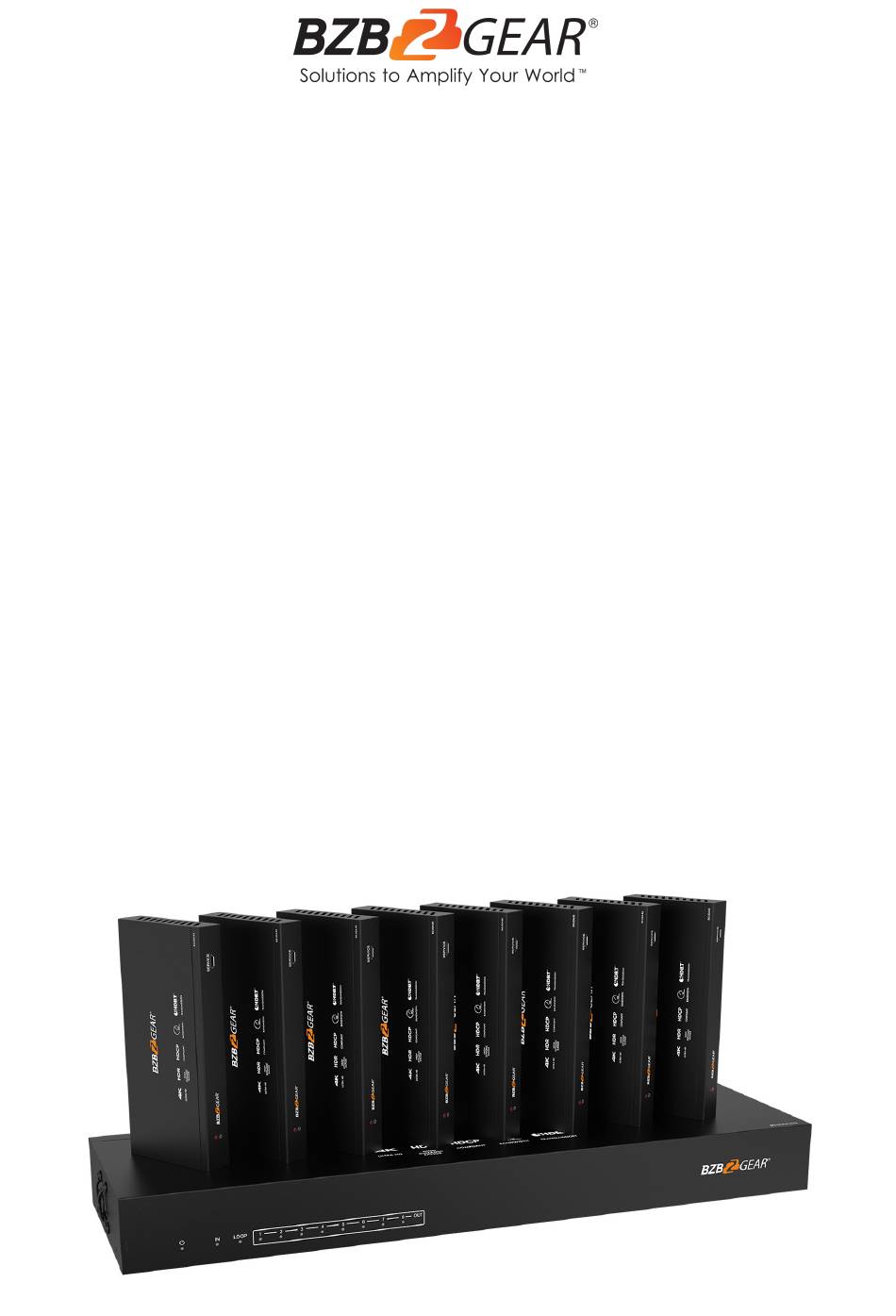

- Page 1 BG-UDA-E18 1X8 4K 18Gbps UHD HDMI HDBaset Splitter/Distribution Amplifier over Single Category 5e/6/7 Cable User Manual...
- Page 2 BZBGEAR BG-UDA-E18 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UDA-E18 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions EDID Management ASCII Commands Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Introduction The BG-UDS-E18 is an 18Gbps HDMI 1x8 HDBaseT Splitter that can distribute 1 source signal to any 8 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. -
Page 6: Specifications
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594 MHz/18Gbps Video Resolution Up to 4K2K@60Hz 4:4:4 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Operation Controls and Functions Transmitter Front Panel Name Function Description POWER LED When the device is powered on, the red power LED will be on. IN LED When the HDMI IN port connects an active source device, the green LED will be on. - Page 8 BZBGEAR BG-UDA-E18 PRODUCT MANUAL Data Signal Connection Signal Indicator Lamp Indicator Lamp ● Illuminating: HDMI signal with HDCP. ● Illuminating: Matrix and HDBaseT Receiver are in good connection ● Flashing: HDMI signal without HDCP. status. ● Flashing: Matrix and HDBaseT ●...
- Page 9 BZBGEAR BG-UDA-E18 PRODUCT MANUAL IR Cable Pin Assignment · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 10: Edid Management
BZBGEAR BG-UDA-E18 PRODUCT MANUAL EDID Management EDID Mode EDID Description EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 01111 4K2K60Hz_444, Dolby/DTS 5.1 11110 1080P, Dolby/DTS 5.1 01110 4K2K60Hz_444, HD Audio 7.1 11101 1080P, HD Audio 7.1 01101 4K2K60Hz_444, Stereo Audio 2.0 HDR 11100 10801, Stereo Audio 2.0... -
Page 11: Ascii Commands
BZBGEAR BG-UDA-E18 PRODUCT MANUAL ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. - Page 12 BZBGEAR BG-UDA-E18 PRODUCT MANUAL Command Code Function Description Example Feedback Default Setting s hdbt y stream z! Set hdbt output y stream on/ off, s hdbt 1 stream 1 ! Enable hdbt output 1 enable y=0~8(0=all) z=0~1 stream (0:disable,1:enable) s hdbt 0 stream 1 !
-
Page 13: Application Example
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Command Code Function Description Example Feedback Default Setting RS-232 connect to all HDBT OUT RS-232 not connect to HDBT OUT s device baud w Set receiver control device COM s device baud receiver device COM port size x stop y port setting. -
Page 14: Tech Support
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 15: Mission Statement
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 16: Copyright
BZBGEAR BG-UDA-E18 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
