Hardware And Layout; Figure 2. Hardware Block Diagram - ST STM32F0DISCOVERY User Manual

UM1525
4

Hardware and layout

The STM32F0DISCOVERY is designed around the STM32F051R8T6 microcontroller in a
64-pin LQFP package.
Figure 2
LINK/V2, push button, LEDs and connectors).
Figure 3
Figure 2.
illustrates the connections between the STM32F051R8T6 and its peripherals (ST-
and Figure 4 help you to locate these features on the STM32F0DISCOVERY.

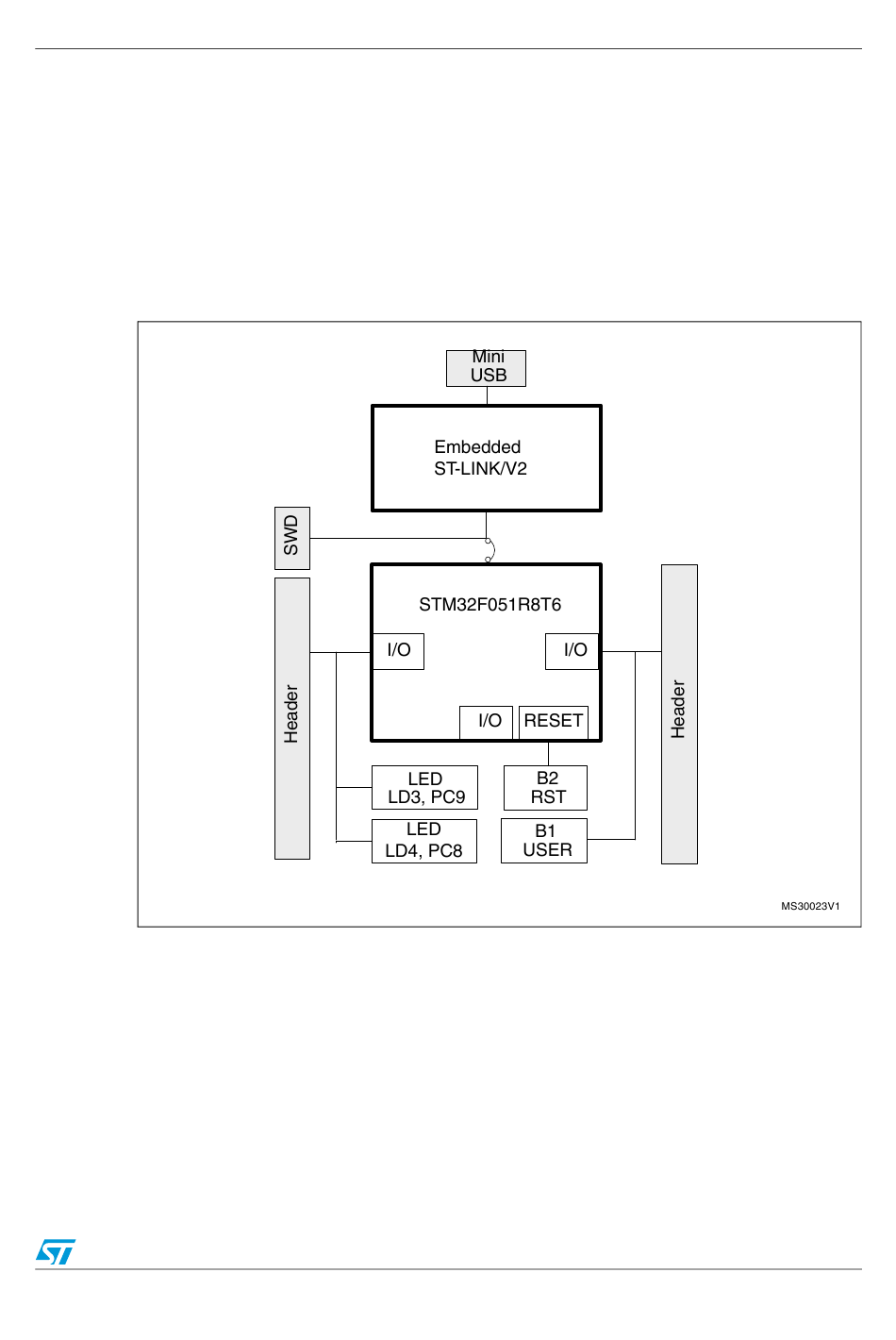

Hardware block diagram
