Web; Video; Cctv - IDEAL Networks SignalTEK NT Manual

Web

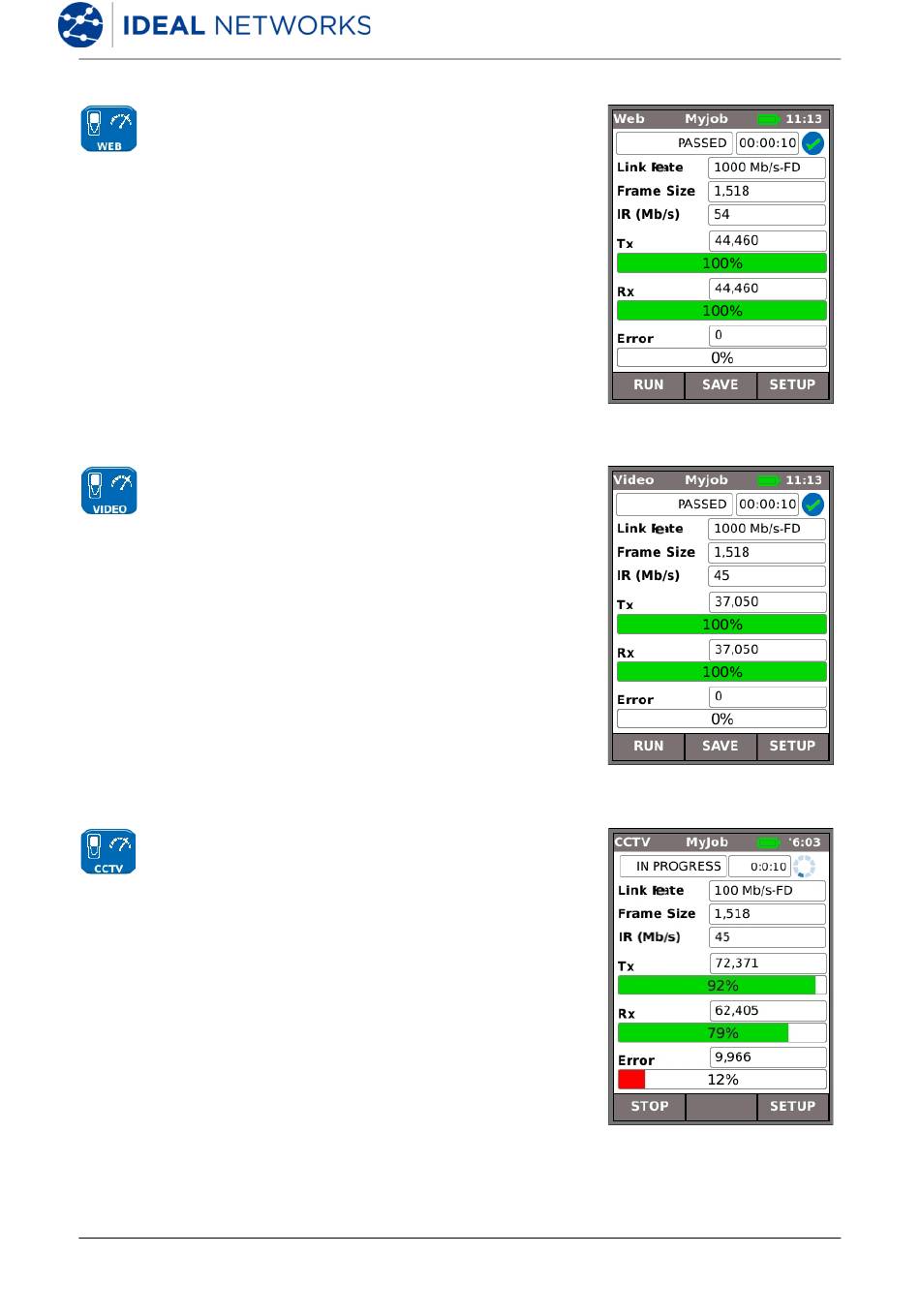

Fig 50 shows the result screen of a successful Web test.
Frame Size and Frame Fill are fixed, and stated for reference
only. The Information rate, IR (Mb/s), is variable and
dependent on the number of sessions you have entered at set
up. Tx states the number of frames transmitted, the green
indicator bar confirms that 100% of the frames were sent. Rx
states the number of frames received, the green indicator bar
confirms that 100% of the transmitted frames were received.
As all transmitted frames were received, Error states 0 and its
associated indicator bar remains uncolored and shows 0%.
Because the number of errors does not exceed the limit set in
SETUP, the test result is PASSED.

Video

Fig 51 shows the result screen of a successful Video test.
Frame Size and Frame Fill are fixed, and stated for reference
The Information rate, IR (Mb/s), is variable and
only.
dependent on the number of streams entered and the
definition (SD- Standard Definition / HD – High definition)
chosen at set up. Tx states the number of frames transmitted,
the green indicator bar confirms that 100% of the frames were
Rx states the number of frames received, the green
sent.
indicator bar confirms that 100% of the transmitted frames
were received. As all transmitted frames were received, Error
states 0 and its associated indicator bar remains uncolored
and shows 0%. Because the number of errors does not exceed
the limit set in SETUP, the test result is PASSED.

CCTV

Fig 52 shows a CCTV performance test in progress. Frame
Size and Frame Fill are fixed, and stated for reference only.
The Information rate, IR (Mb/s), is variable and dependent on
the Resolution (VGA / 720p / 1080p / 3MP / 5Mp), CODEC
(H.264 / MJPEG) and number of cameras chosen at set up. Tx
shows that, so far, 72,371 frames have been transmitted which
is 92% of the total frames required to be sent in this test. Rx
shows that only 62,405 of the transmitted frames have been
received (79% of the total sent so far).
number of errored (unreturned) frames (Approx. 12%).
When the number of errored frames is ≥ the Limit (Frames)
that you entered at set up, the test is failed.
SignalTEK NT
User Guide
Error shows the
Fig 50
Fig 51
Fig 52
