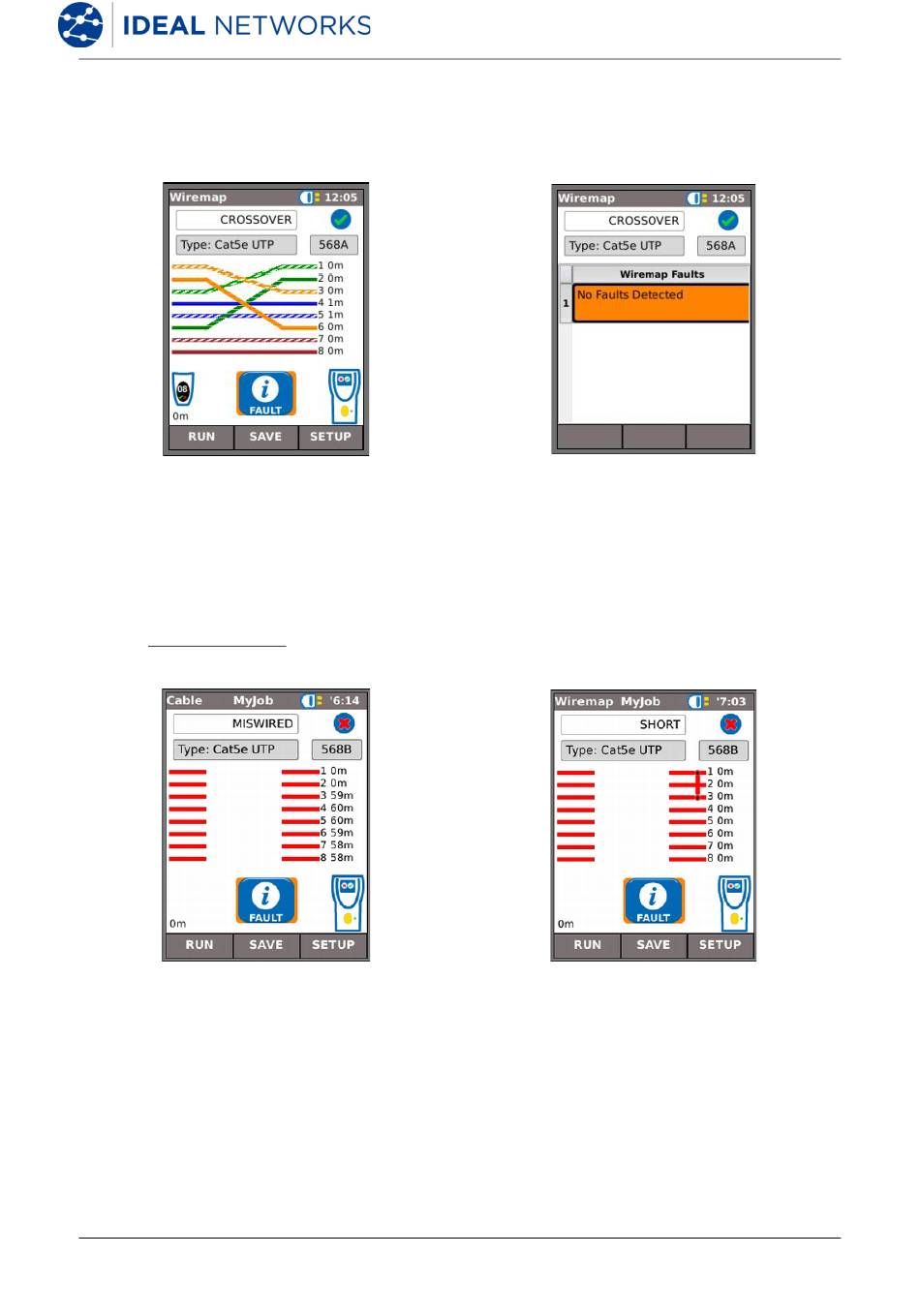

Note that for the example of a Wiremap test shown above; if the option 'XOver Allowed' had
been checked in the Wiremap SETUP options, the results would be displayed as shown in Fig
22 and Fig 23.
Fig 23
Fig 22
The wiremap tests may be run with no termination – open, or with an Active Remote
termination. When connected, an image of an Active Remote will be shown on the display
and its type identified. After a test has been run, the length of the cable is displayed (range
up to 100m (330ft)).
With an open termination the possible faults detected are:
Fig 24 Open circuit by pair Fig 25 Short circuit by pin
