Summary of Contents for IDEAL Networks SecuriTEST IP

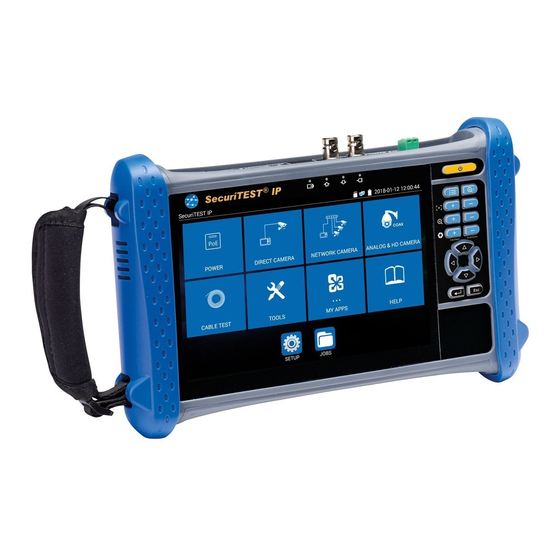

- Page 1 SecuriTEST CCTV Camera Tester for IP Digital / HD Coax / Analogue Systems Proof of Performance...
- Page 2 SecuriTEST SecuriTEST IP is an installation and troubleshooting tester for digital/IP, HD coax and analogue CCTV camera systems. With a single tester that can power, configure and document, SecuriTEST IP increases productivity from start to finish. Supply power to cameras via PoE/PoE+ (Power over...
- Page 3 Whether you are installing or troubleshooting cameras, SecuriTEST IP supports all your power requirements for IP and analogue cameras. No need for separate power injectors – SecuriTEST IP includes the following power outputs: Power the camera using Power over Ethernet (PoE), up to 24 watts from the tester - RJ45 port.
- Page 4 • IP network Scan - check for IP address conflicts IP Camera Setup SecuriTEST IP offers a comprehensive range of ONVIF and non-ONVIF camera setup tools to ensure the camera is installed correctly 1. Configure camera – update camera information 4.
- Page 5 Cable Tracing – Search for Cabling SecuriTEST IP includes the ability to identify and trace cables using the digital tone generator and the “Cable Tracer/Remote Tool”. Choose from four tones and use the “Cable Tracer/Remote Tool” with variable sensitivity...
- Page 6 SecuriTEST IP Fast access to key features Accurate setup of 4k One hand operation – – Pan/ cameras – Digital zoom displays Short cut menu to instantly launch Tilt/Zoom (PTZ) the camera using full detail of high resolution video your most used tools.
-
Page 7: Troubleshooting
PoE+ troubleshooting Setup security – Display the PoE Analogue/AHD/CVI/ monitors consumption of the – Use the TVI video input attached camera in real- analogue Video Out port Flashlight – Bright time using the power Connect to all common on the tester with the LED flashlight with monitor tool. -
Page 8: Ordering Information
Kit Contents SecuriTEST IP – Digital/Analogue/HD Coax CCTV Tester. 1 x SecuriTEST IP Camera Tester, 1 x carry case, 1 x neck strap, 1 x PSU EU/UK/US/AU adapters, 1 x cable tracer/remote, 1 x 3m Cat. 5e UTP patch cable, 1 x 3m coax cable with two R171000 end BNC (m) connectors, 1 x 3m DC12V 3.5(f) to 2.5(f) power...
