IDEAL Networks SignalTEK NT Manual page 11

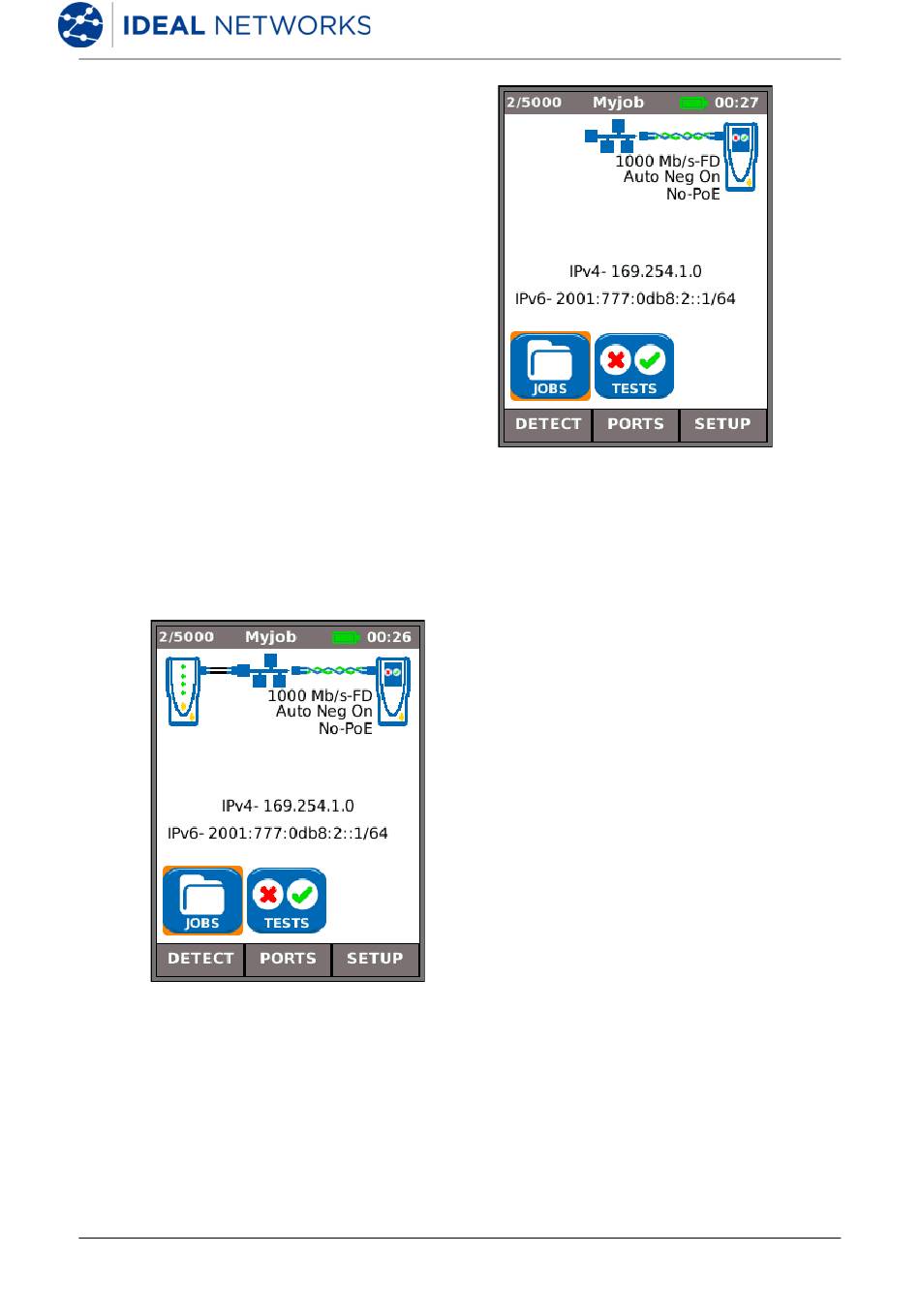

(2) When the Near-End Unit is connected
to an active network, using copper or
fiber cable, press the soft key DETECT
(F1) to display all options available (Fig
9). IP tests can be run.
description of these options see – Tests
menu description – Ethernet mode, page
26.
The detected services
(802.3af/at), ISDN, PBX and Unknown.
The connected Port number and LLDP
Power are displayed (when available.)
The IPv4 and IPv6 addresses assigned to
the tester are displayed (when available).
SignalTEK NT
User Guide
For a full
are PoE
Fig 10
Fig 9
(3) When both the Near-End Unit and
Remote Unit are connected to an active
network, using copper or fiber cables,
press the soft key DETECT (F1) to
display all options available (Fig 10). IP
tests and performance tests can be run.
For a full description of these options
see – Tests menu description – Ethernet
mode, page 29.
The detected services
(802.3af/at), ISDN, PBX and Unknown.
The IPv4 and IPv6 addresses assigned
to the tester are
available).
are PoE
displayed (when
156875 Iss 3
Page 11
