Tests menu description – Cable mode

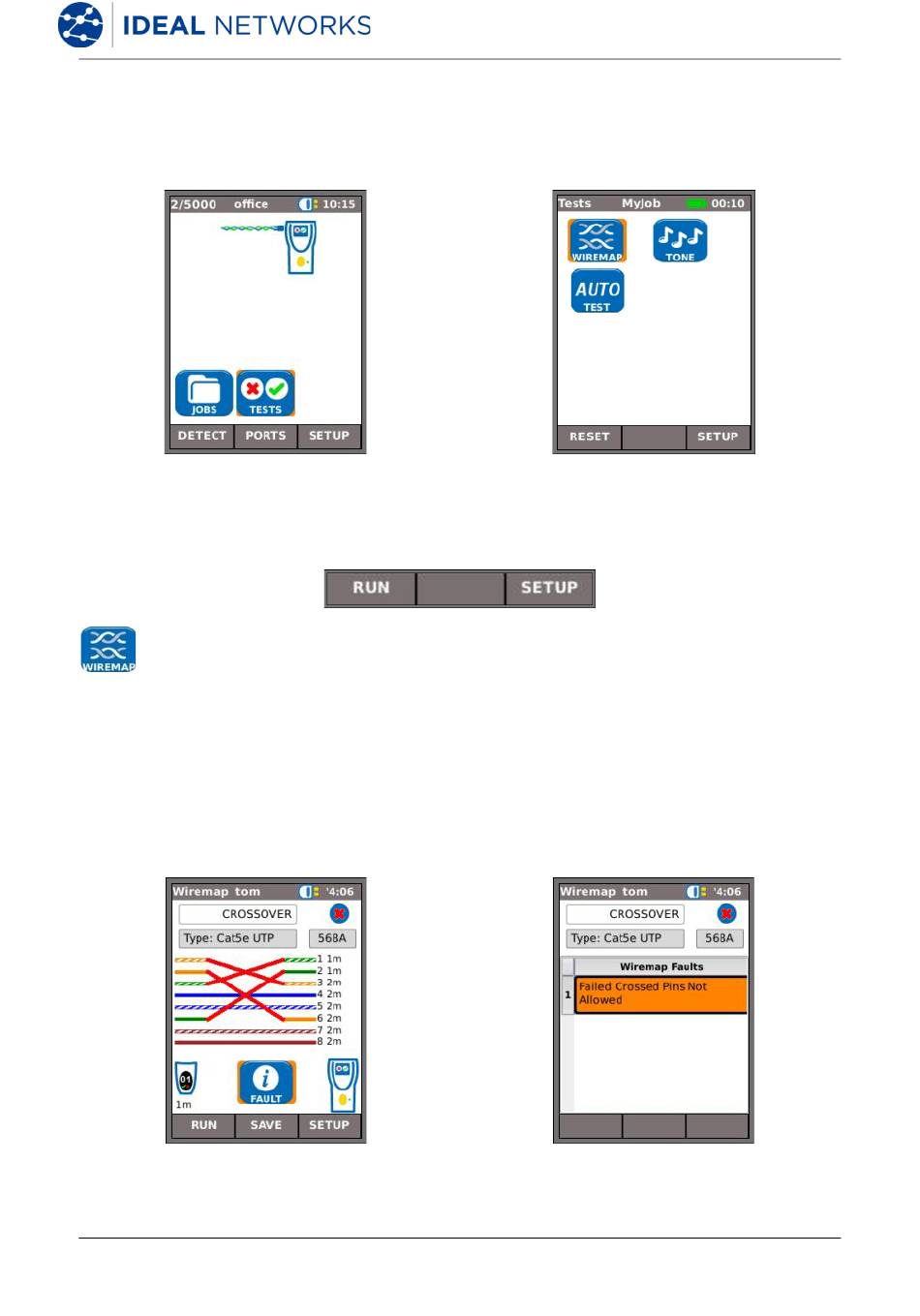

When the TESTS icon from the cable mode home screen is selected, Fig 18, the available tests
will be displayed, Fig 19.
Fig 18
After any one of the three available tests from the menu is selected, the soft keys RUN and
SETUP will appear:

Wiremap

When the soft key RUN (F1) is pressed a wiremap test will be run on the cable currently
connected to the tester's RJ45 port. The settings used for the test will be those that have
been preset via the setup menu: SETUP>TESTS>WIRETEST>WIREMAP.
After the test has been run, the display will show a graphical interpretation of the result (Fig
20) and an indication of the distance to the fault or, the length of the cable. In addition, a
FAULT icon and a SAVE soft key will appear. Select the FAULT icon and the display will show
a textual list of the faults detected, Fig 21.
Fig 20
SignalTEK NT
User Guide
Fig 19
Fig 21
156875 Iss 3
Page 21
