Ports

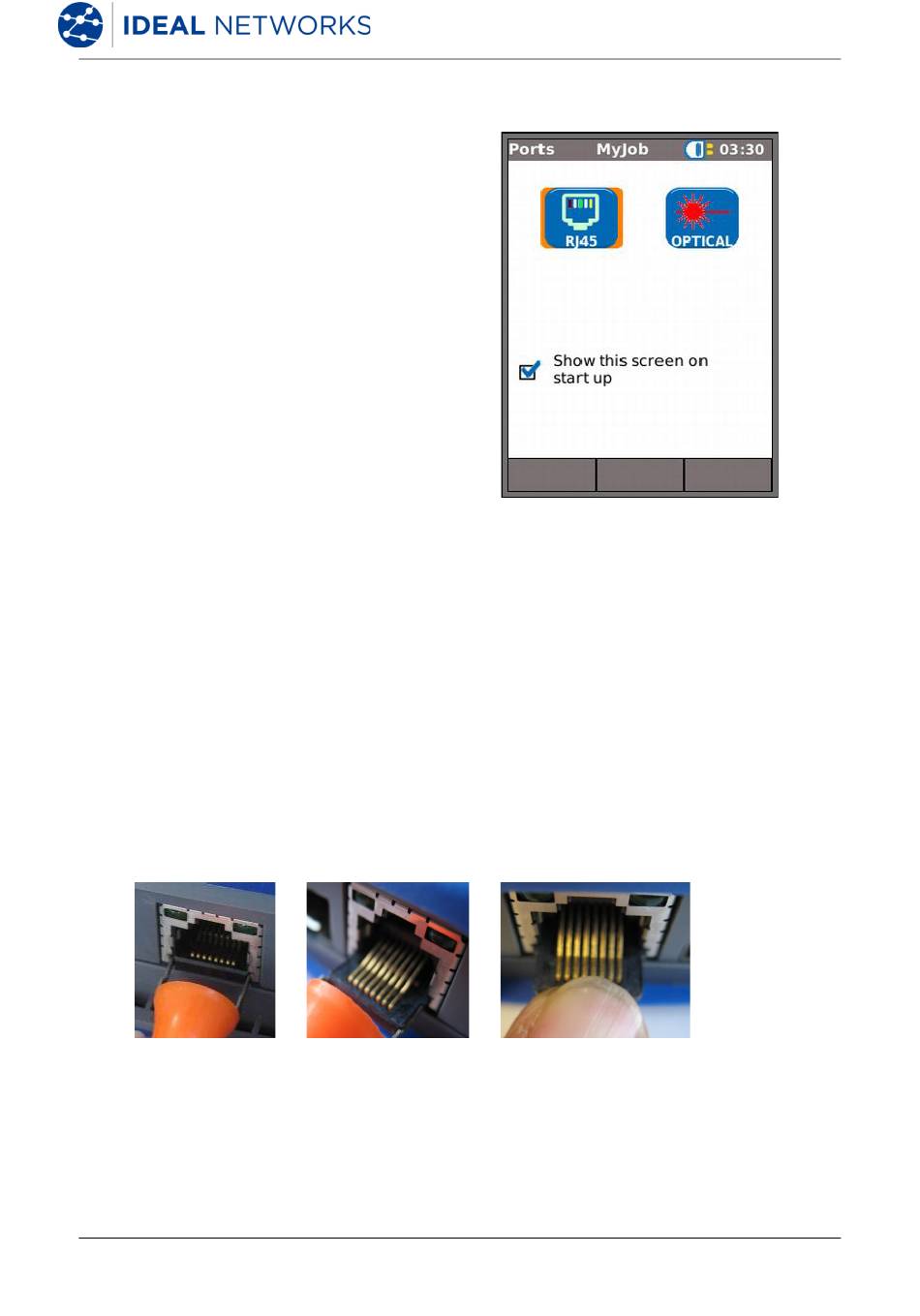

From the home screen press the soft key
PORTS (F2), highlight the required port
and press ENTER (Fig 11).
Tick the check box to always see this
screen at startup.
Replaceable insert – RJ-45 socket
To replace a damaged or worn RJ-45 socket insert proceed as follows:
Equipment required: Kit, IDEAL part number 150058 – includes Tool x1 and Replacement
Insert x10.
1. Switch the SignalTEK NT off.
2. Remove cables.
3. Carefully push the tool STRAIGHT into the socket. BE CAREFUL - DO NOT MOVE
THE TOOL VERTICALLY!
4. Keeping the tool STRAIGHT firmly pull the insert out from the socket.
5. Using fingers replace a new insert STRAIGHT into the socket and secure in place
by firmly pushing
3.
SignalTEK NT
User Guide
4.
Fig 12
Fig 11
5.
