Voip - IDEAL Networks SignalTEK NT Manual

When a SignalTEK NT Remote Unit
is detected through an active
network, select the TESTS icon
from the home screen (Fig 46) to
display the Tests screen (Fig 47).
From the Tests screen select the
DATA icon to show the
Performance Tests screen (Fig 48).
Before a Performance test is run,
the warning and dialogue that
follow are displayed:

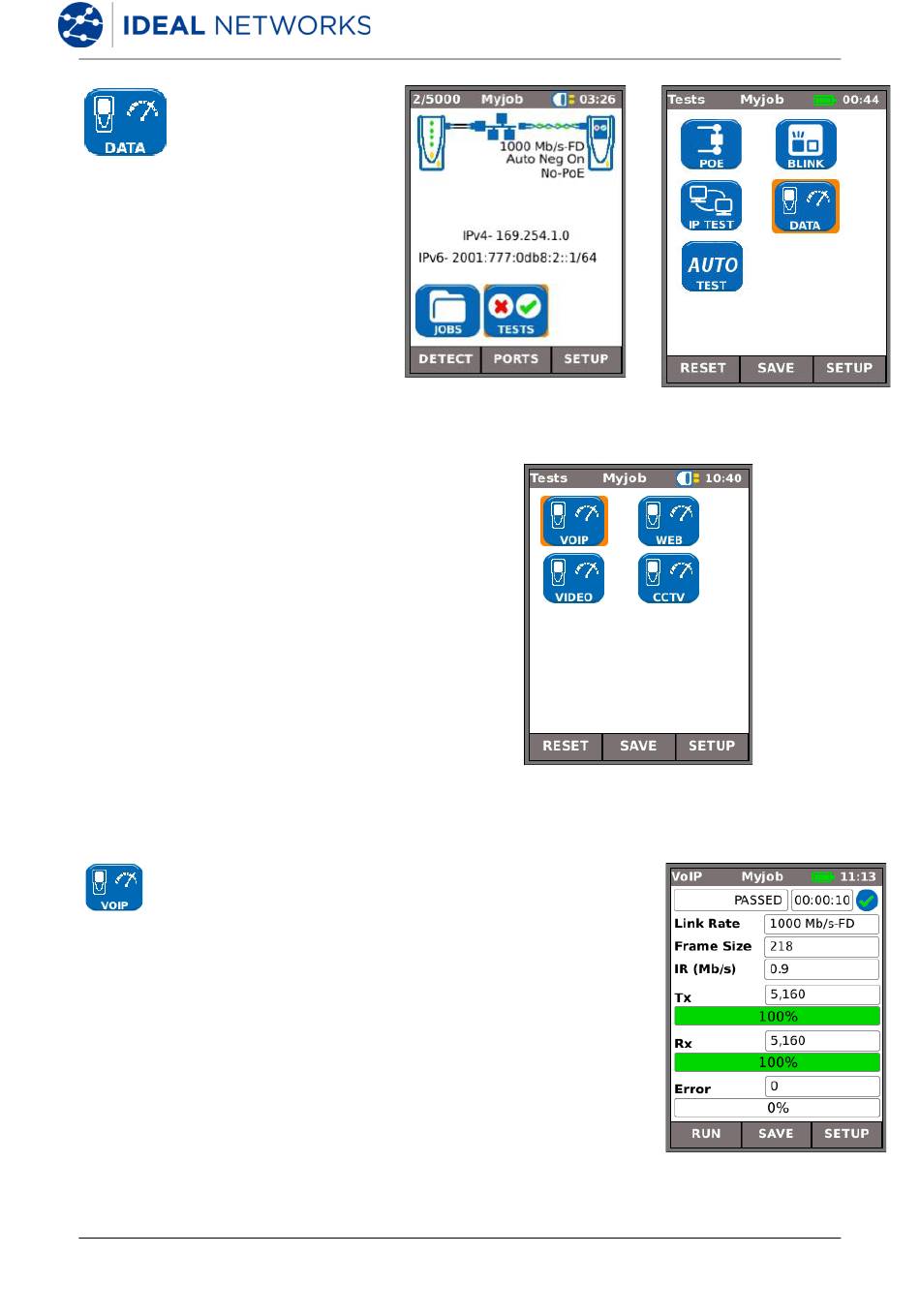

Fig 46
Fig 47
This test will generate traffic
loading which may interfere with
other network users
CONTINUE? YES/NO
Select YES to continue with the
test and not display the warning
again until the next power cycle.
Select NO to not continue with test
and display the warning again
before another test is run.
Performance tests are as follows:
Fig 48 Performance Tests

VoIP

Fig 49 shows the result screen of a successful VoIP test. Frame Size
and Frame Fill are fixed, and stated for reference only. The
Information rate, IR (Mb/s), is variable and dependent on the number
of calls you have entered at set up. Tx states the number of frames
transmitted, the green indicator bar confirms that 100% of the frames
were sent. Rx states the number of frames received, the green
indicator bar confirms that 100% of the transmitted frames were
received. As all transmitted frames were received, Error states 0 and
its associated indicator bar remains uncolored and shows 0%.
Because the number of errors does not exceed the limit set in SETUP,
the test result is PASSED.
Fig 49
SignalTEK NT 156875 Iss 3
User Guide Page 29
