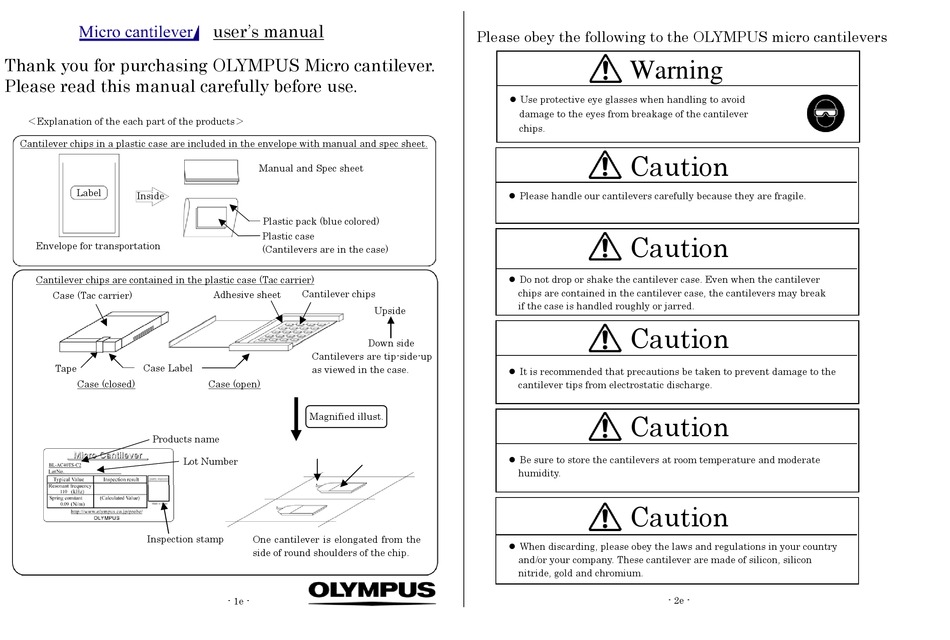

Thank you for purchasing OLYMPUS Micro cantilever.
Please read this manual carefully before use.
＜Explanation of the each part of the products＞
Cantilever chips in a plastic case are included in the envelope with manual and spec sheet.
Label
Inside
Envelope for transportation
Cantilever chips are contained in the plastic case (Tac carrier)
Case (Tac carrier)
Tape
Case Label
Case (closed)
Case label
Products name
BL-AC40TS-C2
110
0.09
Inspection stamp
user's manual
user's manual 書
Manual and Spec sheet
Plastic pack (blue colored)
Plastic case
(Cantilevers are in the case)
Cantilever chips
Adhesive sheet
Cantilevers are tip-side-up
as viewed in the case.
Case (open)
Magnified illust.
Cantilever
Lot Number
One cantilever is elongated from the
side of round shoulders of the chip.
- 1e -
Please obey the following to the OLYMPUS micro cantilevers
Use protective eye glasses when handling to avoid
damage to the eyes from breakage of the cantilever
chips.
Please handle our cantilevers carefully because they are fragile.
Do not drop or shake the cantilever case. Even when the cantilever
chips are contained in the cantilever case, the cantilevers may break
if the case is handled roughly or jarred.
Upside
Down side
It is recommended that precautions be taken to prevent damage to the
cantilever tips from electrostatic discharge.
Cantilever chip
(substrate)
Be sure to store the cantilevers at room temperature and moderate
humidity.
When discarding, please obey the laws and regulations in your country
and/or your company. These cantilever are made of silicon, silicon
nitride, gold and chromium.
Warning
Caution
Caution
Caution
Caution
Caution
- 2e -
Advertisement
Table of Contents
Related Manuals for Olympus BioLever mini
Summary of Contents for Olympus BioLever mini
- Page 1 書 Please obey the following to the OLYMPUS micro cantilevers Thank you for purchasing OLYMPUS Micro cantilever. Warning Please read this manual carefully before use. Use protective eye glasses when handling to avoid damage to the eyes from breakage of the cantilever ＜Explanation of the each part of the products＞...
- Page 2 Use of an anti-electrostatic mat and wrist band is preferable. See the specification sheet of OLYMPUS Micro cantilevers at the last page of this manual. 3) In opening the case, put the plastic case label-side down on a desk.
- Page 3 Tetrahedral tip in two stage structure The apex of the tetrahedral tip becomes sharper due to an oxide sharpening process. The tip angle in the final few hundred nano meter of the apex, is about 15 to 25 degrees (see below). A two stage structure is employed in this probe.
- Page 4 Case 2: When adjusting light spot position on the photo detector of AFM sensor head, SUM Case 3: The SUM value changes gradually with time. value indicating total incident light to the sensor, was small and rose to only 3 volts. Eight volts can usually be expected with cantilever with a reflex metal coating.
- Page 5 If a small and robust scanner with Please access to the web page of OLYMPUS micro cantilevers. high resonant frequency is used, one can expect 5 Hz line scan frequency in AC mode AFM measurements in water, while 0.5 Hz with conventional silicon nitride cantilevers.
