Finelite E2-ID Disassembly Instructions Manual

E2 Indirect/Direct Linear

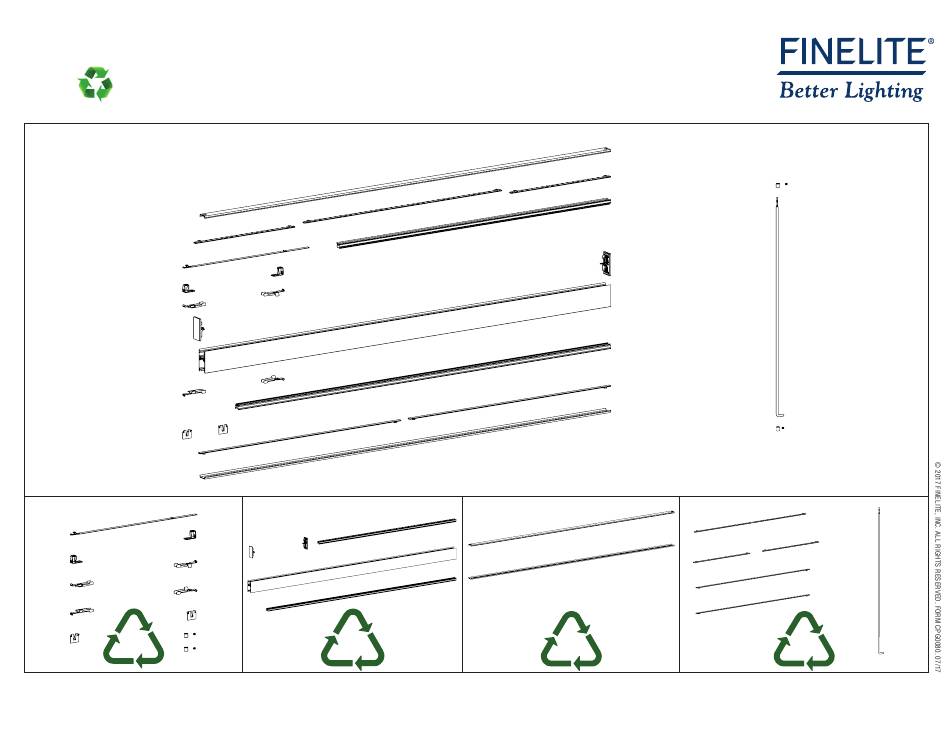

E2-ID Recycling Luminaire Disassembly Instructions
Luminaire breaks down easily for recycling at the end of usable life*.
Underlap Backplate
End Suspension Brackets
Capture Brackets
Capture Brackets
Retention Clips
STEEL
*Recycling information typical for all luminaire sizes. Contact factory for more information.
Finelite, Inc. · 30500 Whipple Road · Union City, CA 94587-1530 · (510) 441-1100 · Fax: (510) 441-1510 · www.finelite.com
Aluminum
Top Diffuser
Top LED Boards
Backplate
Endcaps
Luminaire Body
Backplate
Bottom LED Boards
Bottom Diffuser
7
Retention Collar
and Set Screw
4-Conductor Cable
Retention Collar
and Set Screw
e
