True View 410 Hardware User Guide

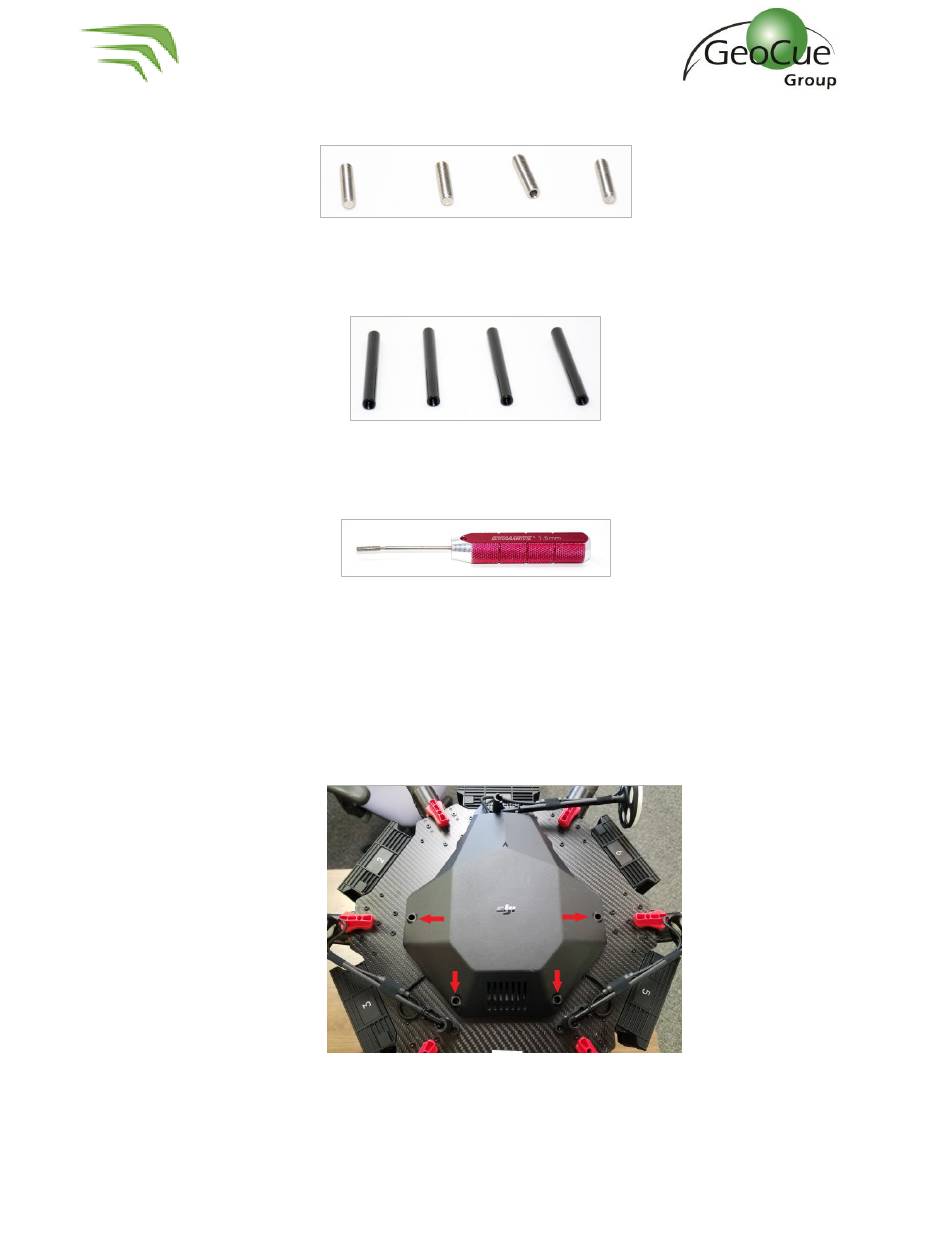

c. Set Screw (4) (Figure 3)
d. 50mm Spacer (4) (Figure 4)
e. Hex Driver – 1.5mm & 2mm (Figure 5)
2. On the drone, remove the 4 screws indicated below (Figure 6). These screws will be used to
attach the mounting plate later, so save them for step 5.
7
Figure 3
Figure 4
Figure 5
Figure 6
