True View 410 Hardware User Guide

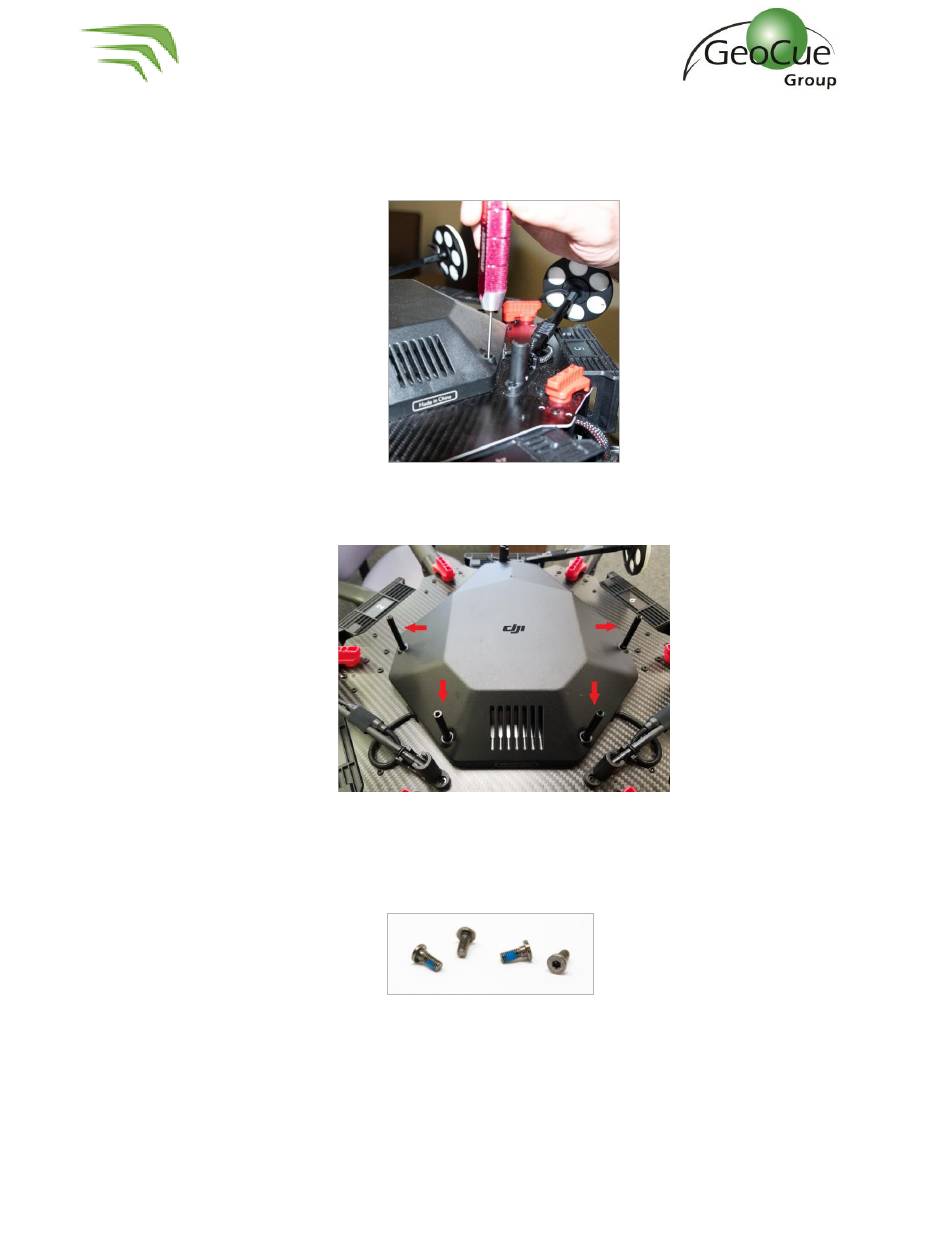

3. Apply Loctite to the 4 Set Screws and install in the empty screw spaces from Step 2 using a
1.5mm hex driver (Figure 7).
press into the plastic plate below and could cause the plate to crack.
4. Install the four 50mm spacers on top of the set screws (Figure 8).
5. Line the plate up on top of the spacers. Apply Loctite to the 4 screws removed in Step 2 (Figure
9) and secure the plate to the top of the spacers (Figure 10).
8
WARNING
- Do not overtighten. If screws are too tight, they will
Figure 7
Figure 8
Figure 9
True View 410 Hardware User Guide
8/3/2020
