True View 410 Hardware User Guide
system is ready to take off. It will automatically start recording data when the sensor travels more than
the "ProximityDistance" (in meters X, Y and Z) from the home point.
If "ProximityMode" is false, proximity mode is disabled. The SYS light will turn solid yellow when the
system is ready to start recording. The user must press and hold the green button on the controller box
until the SYS light turns solid green, indicating the system is recording data and ready for takeoff.
"ProximityAutoStop" determines if the system will automatically begin wind-down when the sensors
enters the "ProximityDistance" (X, Y and Z) from the home point.
If "ProximityAutoStop" is true, the system will automatically begin wind-down and start transferring
files to the UMS drive when the sensor is within the "ProximityDistance" (X, Y, and Z).
The SYS light will be flashing yellow when the aircraft lands. Wait until the SYS light is solid
yellow (file transfer complete) to power off the system.
If the system has not landed within the "ProximityDistance" or the SYS light is still solid green
after landing, the user must press and hold the green button on the controller box until the SYS
light starts flashing yellow. Wait until the SYS light is solid yellow before powering off the
system.
If "ProximityAutoStop" is false, the system will not start wind-down until the user presses and holds the
green button on the controller box and the SYS lights starts flashing yellow. Wait until the SYS light is
solid yellow before powering off the system.
CCFSECTION17 – STORAGE AUTO DELETE
This section is applicable for CCU firmware v2.0.x and later.
If "AutoDelete" is true (default), True View automatically deletes data from the UMS or camera SD
cards when the storage percentage reaches the "FreeSpaceHighThresholdPercent". Folders will be
deleted until the "FreeSpaceLowThresholdPercent" is reached.
20

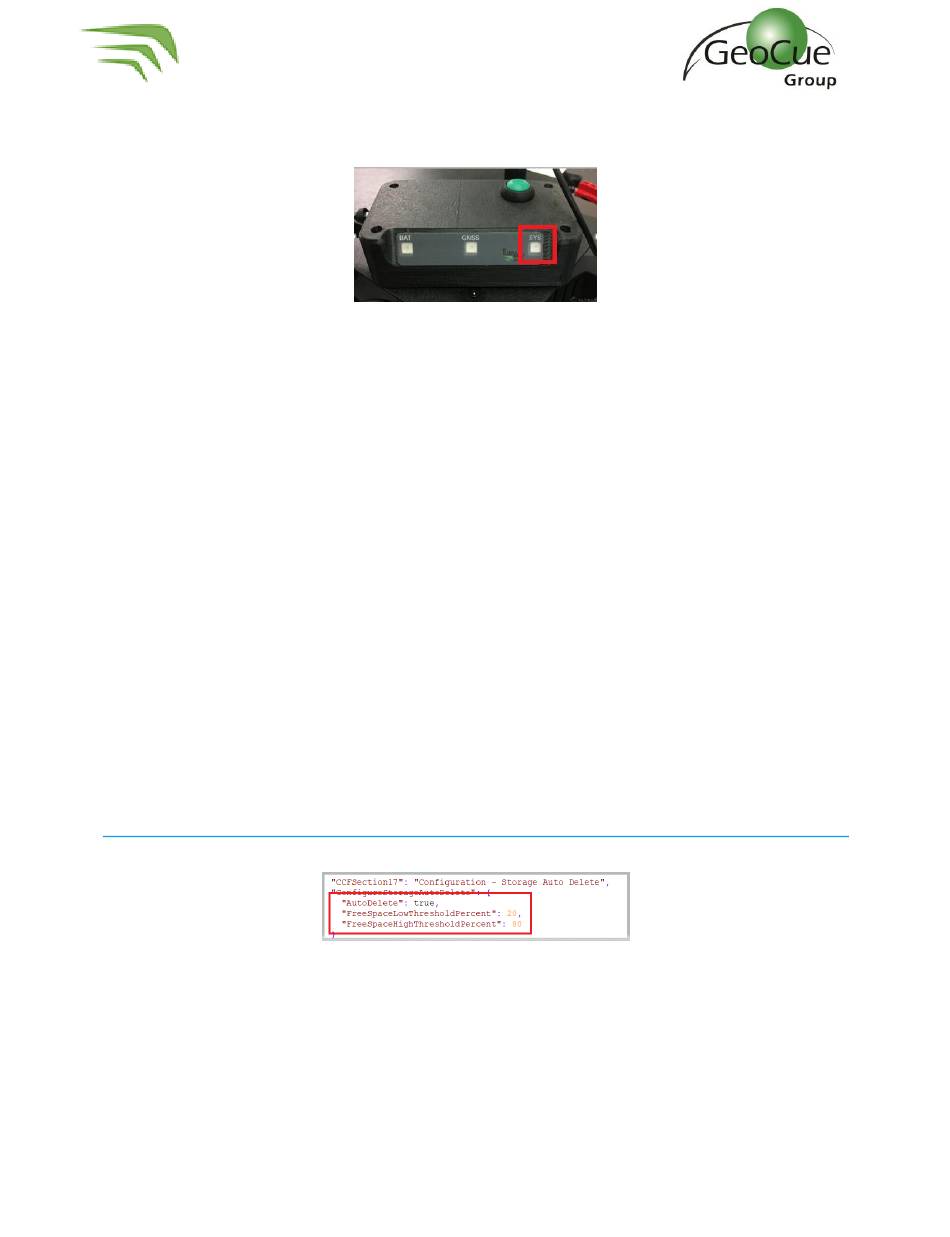

Figure 29 - Controller Box SYS LED
Figure 30 - Configuration - Storage Auto Delete
True View 410 Hardware User Guide 8/3/2020
