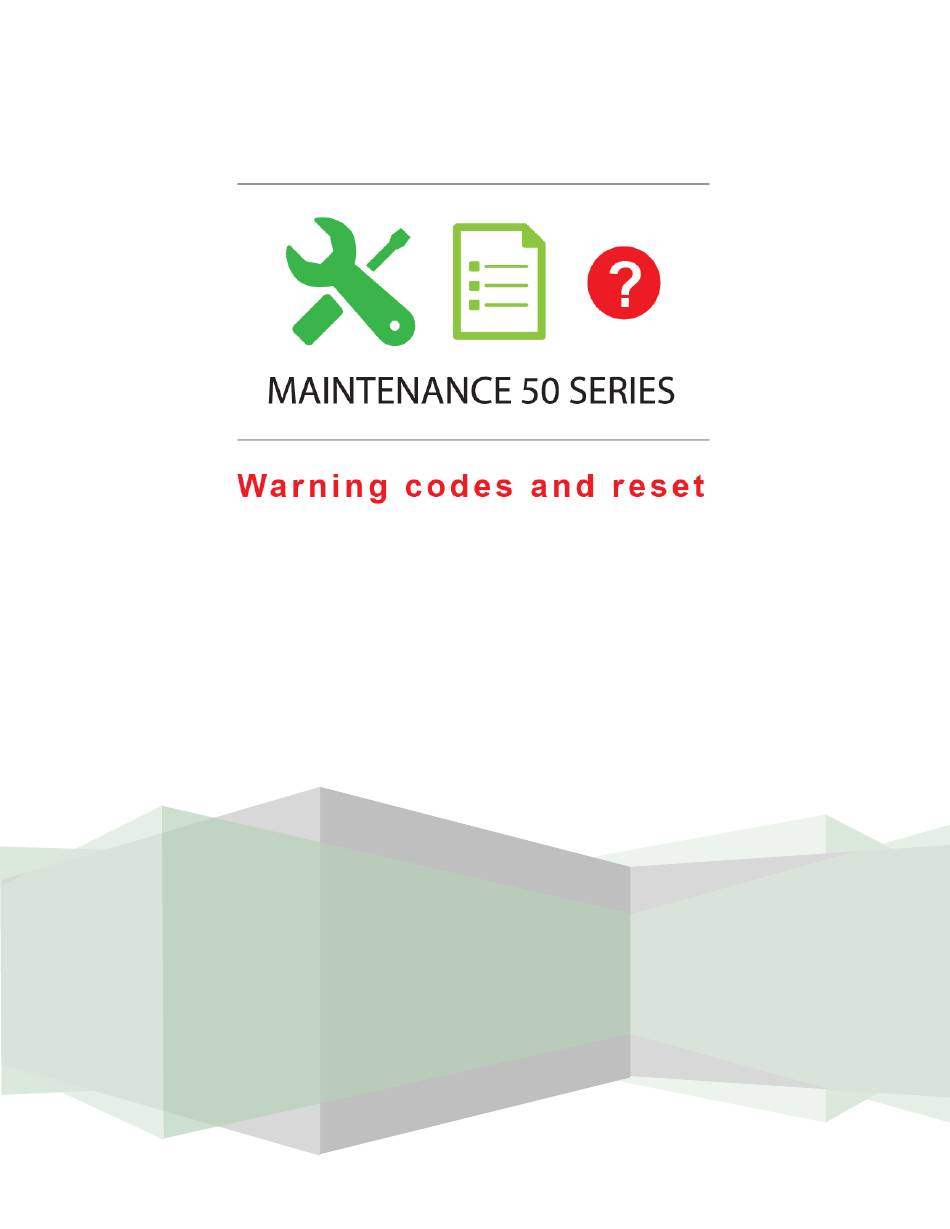

- Page 1 29-10-2013...
- Page 2 Maintenance 5 0 S erie CAUTION Before resetting your electronic card that displays an error code. OVERHEAT MESSAGE Service the stove COMPLETELY as described in this • manual. Check the chimney pipe. • BLOCKED FLUE MESSAGE Service the stove COMPLETELY as described in this •...
- Page 3 Maintenance 5 0 S erie MINIMUM RECOMMENDED MAINTENANCE SCHEDULE Weekly Twice a year Annually Components Or after Or after +/- 250 pounds +/- 1 tons Per 2 tons of pellets Baffle Vacuum Bottom air-wash inlet Vacuum Burn Pot Brush and Vacuum Glass Clean...
- Page 4 Maintenance 5 0 S erie REMOVE THE BAFFLES. Using the 4 tabs, remove and clean the three compartments of the baffles which located inside combustion chamber. Use an ash vacuum to clean between the heat exchangers. Remove the panels in the order indicated in the pictures.
-
Page 5: Cleaning The Burn Pot
Maintenance 5 0 S erie CLEANING THE BURN POT. Using a scraper and a wire brush, thoroughly clean the surface of the burn pot. It is very important to leave no residue on the surface of the burn pot. Note: The sand and dirt contained in the wood pellets does not burn and solidifies to form a stone on the surface of the burn pot. -
Page 6: Cleaning The Ash Drawer
Maintenance 5 0 S erie CLEANING THE GLASS RETAINERS. To keep the glass as clean as possible. It is important to vacuum the glass retainers to keep the airwash free accumulation. CLEANING THE ASH DRAWER To empty the ash drawer of ... - Page 7 Maintenance 5 0 S erie MAINTENANCE OF THE INNER The inner ducting and the exhaust fan are DUCTING. located on the left side of the stove. Here's how to perform the inspection and cleaning. REMOVE THE DUCTING ACCESS To access inner ducting, open the decorative COVER.
- Page 8 Maintenance 5 0 S erie VACUUM THE INNER DUCTING AND Clean and vacuum any ash buildup in the BLOWER. inner ducting using the scraper provided with the stove. Also clean and vacuum the exhaust fan housing outlet being careful not to damage the fan blades.
- Page 9 Maintenance 5 0 S erie CLEANING THE PRESSURE SWITCH To access the pressure switch. TUBE. Open the right side decorative panel of the stove. The pressure switch is fixed to the back grill. ...
-
Page 10: Recommended Maintenance
Maintenance 5 0 S erie CLEANING THE PRESSURE SWITCH TUBE. 1. Remove the tube from the pressure switch. 2. Blow into the tube and ensure that the air passes freely. 3. Reinstall the tube on the pressure switch taking care to connect the tube to the WHITE side of the sensor. - Page 11 Maintenance 5 0 S erie THIS PELLET STOVE IS EQUIPED WITH MULTIPLE DEVICES TO ENSURE YOUR SAFETY. HOWEVER IF A WARNING ERROR CODE STOPS YOUR STOVE ON SEVERAL OCCASIONS, IT IS VERY LIKELY TO BE THAT THE STOVE DOES NOT EXHAUST PROPERLY. YOU HAVE THE RESPONSIBILITY TO MAKE SURE THAT THE MAINTENANCE OF THE STOVE IS DONE AS DESCRIBED IN THIS DOCUMENT.
