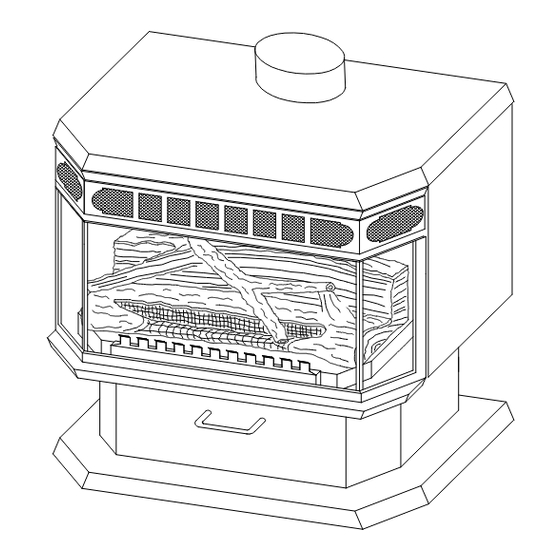

Osburn LA 30 Owner's Manual

Freestanding stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY: Do not store or use
gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
THE INSTALLATION MUST BE IN ACCORDANCE WITH LOCAL CODES OR, IN THE
ABSENCE OF LOCAL CODES, WITH THE CURRENT NATIONAL FUEL GAS CODE
ANSI Z233.1 (USA) OR THE CURRENT CAN/CGA B149.1-M86 INSTALLATION
LA 30
FREESTANDING STOVE
OWNER`S MANUAL
WHAT TO DO IF YOU SMELL GAS:
•
•
•
•
CODES (CANADA)
Stove Builder International INC.
1700, Léon-Harmel, Québec (Québec) G1N 4R9
Tél : ( 418 ) 527-3060
Fax : ( 418 ) 527-4311
www.osburn-mfg.com
Do not try to light any appliance.
o not touch any electric switch; do not use
any phone in your building.
Immediately call your gas supplier
from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
45118A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osburn LA 30

Summary of Contents for Osburn LA 30

  • Page 1 LA 30 FREESTANDING STOVE OWNER`S MANUAL WHAT TO DO IF YOU SMELL GAS: WARNING: If the information in these instructions is not followed exactly, a fire or • explosion may result causing property Do not try to light any appliance.

  • Page 2: Table Of Contents

    ONVERSIONS MAINTENANCE.............................. 20 ..........................20 AINTENANCE AFETY ..........................20 ECOMMENDED ERVICE ............................20 LASS LEANING & P ........................20 URNER ILOT LEANING & ...................... 21 IREBOX ISASSEMBLY REASSEMBLY ................................22 TROUBLE SHOOTING ........................... 23 OSBURN LIMITED LIFETIME WARRANTY ......................24...

  • Page 3: Introduction

    1.0 INTRODUCTION Specifications SPECIFICATIONS TABLE 1 ITEM NATURAL GAS (NG) PROPANE (LPG) INPUT: North America North America High 30,000 Btu/hr 30,000 Btu/hr 21,000 Btu/hr 22,500 Btu/hr NORTH AMERICAN Flue Loss: EFFICIENCY:Fan off 73 % 73.5 % Fan on 77.5 % 78 % OUTPUT: Fan off...
  • Page 4 Figure 1 INSTALLATION CODES Installation must conform to local codes. In the absence of local codes, installation must conform to the current National Fuel Gas Code, ANSI Z233.1 (in the U.S.), or with the current installation code CAN/CGA B149.1-M86 (in Canada). Certified for use in Canada, and USA. The conversion shall be carried out in accordance with the requirements of the provincial authorities having jurisdiction and in accordance with the requirements of the CAN/CGA B149.1-M86 Installation Code.

  • Page 5: Features

    Features IGNITION SYSTEM: Standing pilot ignition system with thermocouple flame detection and piezo igniter. GAS CONTROL: Gas control valve type: Automatic millivolt powered combination gas control valve with variable flame control for convenience and on/off switch. Optional wall thermostat, and/or optional remote control are available.

  • Page 6: Operation

    2.0 OPERATION Operation Safety Always keep the appliance area clear and free from combustible materials, gasoline and other flammable vapours and liquids. Never obstruct the flow of ventilation air. Keep the front of the appliance clear of all obstacles and foreign materials. Never obstruct or modify the air inlet/outlet grilles of the stove in any manner.

  • Page 7: Lighting Instructions

    Lighting Instructions WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. FOR YOUR SAFETY, READ BEFORE LIGHTING This appliance is provided with a standing pilot flame. When lighting the pilot, follow these instructions exactly: BEFORE LIGHTING smell all around the appliance area for gas.

  • Page 8: Heat Output Adjustment

    Figure 3 7. Press in the gas control knob and turn counter clockwise to the "PILOT" position. 8. Push in the control knob all the way and hold it in. Immediately push the piezo ignition button (the button to the right) repeatedly so that it clicks; continue until the pilot ignites. Maintain pressure on the control knob for about one minute after ignition.

  • Page 9: Installation

    Failure to follow these instructions will void your warranty and may present a fire hazard. See the Osburn warranty at the back of this manual for improper installation disclaimers. This stove and its components are certified and safe when installed in accordance with this manual.

  • Page 10: Chimney Vent Installation

    MINIMUM ENCLOSURES ARE AS FOLLOWS: CAUTION: Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies. Provide a minimum 48" (1219 mm) front clearance to the unit. Note: The appliance may be installed directly on combustible flooring providing the unit stability is maintained.
  • Page 11 THE MINIMUM VENT SYSTEM FOR HORIZONTAL TERMINATION MUST CONSIST OF 24'' (610 mm) vertical length directly on top of stove 90 elbow 12" (305 mm) length horizontally (or 9" (230 mm) telescoping) round support box/wall thimble horizontal termination cap 0984 termination cap heat shield 0984HS (North America only)
  • Page 12 TYPICAL CHIMNEY INSTALLATION: Figure 5 MINIMUM VENT REQUIREMENT: Figure 6...
  • Page 13 Use Mil-Pac Black sealant (or equivalent), available from local suppliers or Osburn dealers, on the inner pipe joint, applying the sealant around the outside of the male part of the vent. A bead of silicone should be...
  • Page 14 VENT TERMINAL LOCATIONS Figure 7 Vent Termination Air Supply Inlet = clearances above grade, veranda, porch, deck, or balcony [* 12" (305 mm) minimum] = clearance to window or door that may be opened [* 12" (305 mm) minimum] = clearance to permanently closed window [minimum 12" (305 mm) recommended to prevent condensation on window] = vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 24"...

  • Page 15: Optional B-Vent Installation

    3.3.3.2 Optional B-Vent Installation This unit may be modified for use as a vented room heater, by using the optional LA30 B-Vent adapter. Follow instructions included with the adaptor when using this option. 3.3.4 Gas Line Installation A qualified gas fitter should install the gas line in accordance with all local building codes using a piping system meeting CAN/CGA 6.10, AGA 3, ANSI Z21.24 or Z21.45.

  • Page 16: Thermostat, Wall Switch, Or Remote Control Installation

    Figure 2). For your convenience, the stove can also be operated by a thermostat, a wall switch or a remote control. Millivolt thermostats and remote control kits are available from any authorized Osburn dealer. NOTE: The thermostat or wall switch MUST be rated for millivolt use. Minimize splicing in all millivolt wiring &...
  • Page 17 Figure 11a Figure 11b...

  • Page 18: Firebox Component Installation

    Figure 13 3.3.6 Firebox Component Installation All components necessary for operation are in the firebox. The log set is in place on the burner and is protected with styrofoam. Remove the door and the foam. Otherwise, no pre-firing assembly is required.

  • Page 19: Initial Firing

    3.3.7 Initial Firing NOTE: Make sure the pressure relief plate is in place before firing the appliance. When lit for the first few times, the appliance may emit an odour resulting from evaporation of paint and lubricants used in the manufacturing process. Open a door or window for ventilation. Anyone with a respiratory condition may need to leave the room during the initial firings.
  • Page 20 When installing this stove at higher elevations, it is necessary to decrease the input rating by changing the existing burner orifice to a smaller size. Input should be reduced 4% for each additional 1000 feet above sea level. Use Tables 3A & 3B or check with the local gas authorities for proper orifice size identification. For the USA, derate the heater from sea level according to the gas installation code.

  • Page 21: Manifactured (Mobile) Home Installation

    Manifactured (mobile) Home Installation This heater may be installed in manufactured (mobile) homes after the first sale. See and comply with the Installation Codes noted on page 2. This Direct Vent System Appliance must be installed in accordance with these instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada.

  • Page 22: Field Conversions

    Field Conversions Service and repair should be done by a qualified service person. Local building codes and installation codes listed in this instruction manual must be adhered to. Follow the instructions included in the conversion kit. 4.0 MAINTENANCE Maintenance Safety Turn off the gas to the main burner and allow the heater to cool for up to 30 minutes before servicing.

  • Page 23: Firebox Disassembly & Reassembly

    Firebox Disassembly & reassembly The following procedure is to be performed by qualified service personnel ONLY. Turn off the gas supply and allow the heater to cool before proceeding. REMOVE THE VALVE AS FOLLOWS: 1. Open the side doors, and remove the top louvre by sliding it forward out of the clips under the top as in Figure 17.

  • Page 24: Fan

    7. To remove the control panel, open the door and remove the four side screws. 8. Remove the blue wires connected to the valve, the wire connected to the sparker, and the two valve extension knobs. 9. Lift the firebox bottom plate and valve assembly up and out of the firebox. 10.

  • Page 25: Trouble Shooting

    5.0 TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION I. Pilot will not light after A. No spark at electrode (weak or no heat source for pilot ignition) repeated triggering of the piezo ignition button 1. Poor connections at starter 1. Reconnect if loose and ignition electrode 2.

  • Page 26: Osburn Limited Lifetime Warranty

    Paint (peeling) and gaskets 1 year *Pictures required Shall your unit or a components be defective, contact immediately your OSBURN dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: • •...
