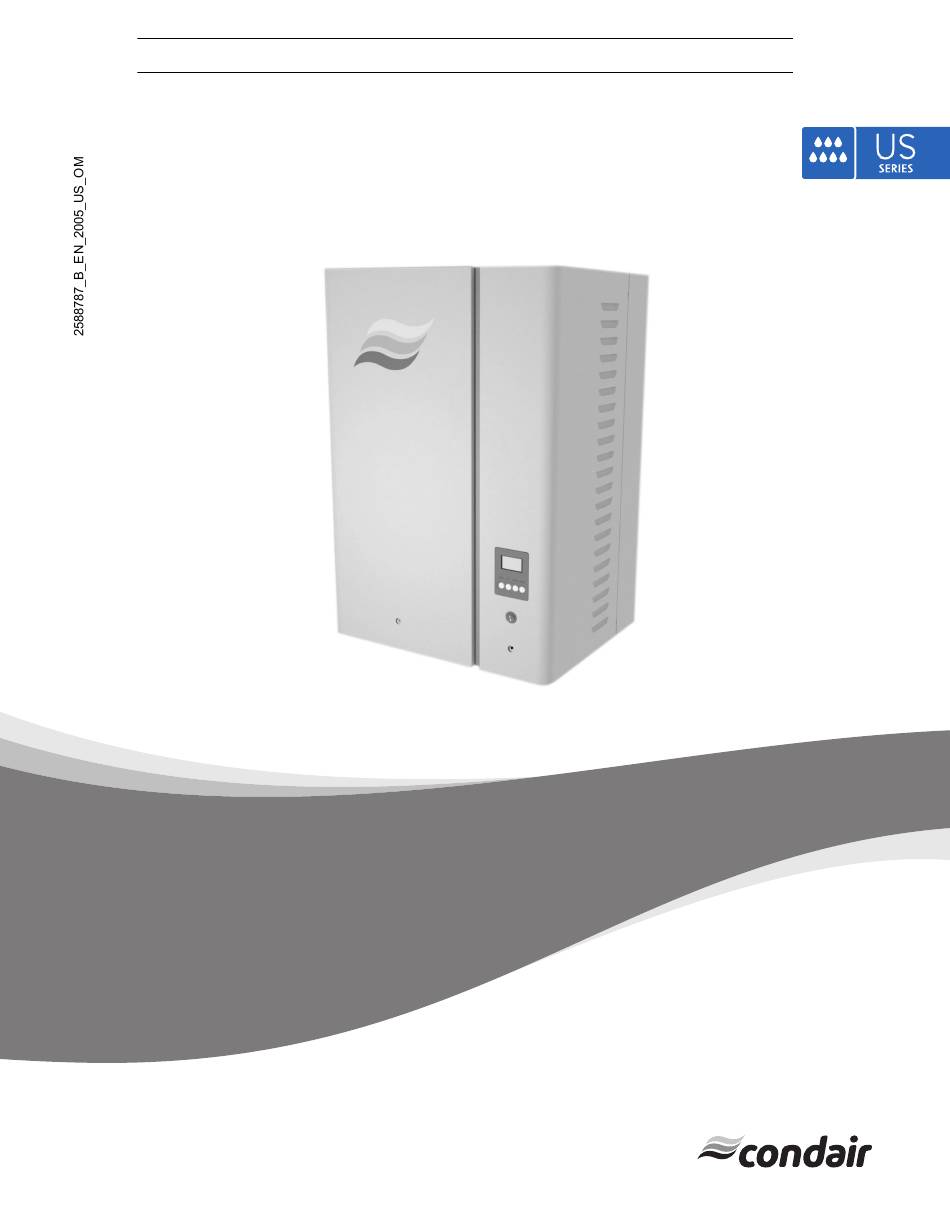

- Page 1 IMPORTANT! Read and save these instructions. This manual to be left with the equipment. OPERATION AND MAINTENANCE MANUAL Ultrasonic Humidifier US-Series Humidification and Evaporative Cooling...
- Page 2 Liability Notice Condair Group AG does not accept any liability due to incorrect installation, maintenance or operation of the equipment, or due to the use of parts/components/equipment that are not authorized by Condair Group AG Copyright Notice Copyright 2020, Condair Group AG, All rights reserved.
-
Page 3: Table Of Contents
Safety Precautions Compliance For Your Safety Hygiene Hygiene Risk Management 3.1.1 Guidelines to Keep a Clean System and Prevent Micro-organism Growth 3.1.2 Condair Service Offering Risk Monitoring and Assessment Product Description General Description Functional Description Product Specifications Technical Data 5.1.1 Capacity 5.1.2... - Page 4 6.2.7 Service 6.2.8 Changing Your Settings 6.2.8.1 Change the period between flushing cycles. 6.2.8.2 Activate the Ultrasonic Blower Pack. 6.2.8.3 Change how the large humidifier reacts to demand. 6.2.8.4 Use the humidifier at X% capacity. To set up and configure the manual capacity control type.
- Page 5 Decommissioning 10.1 General 10.2 Removing Unit from Service 10.3 Disposing or Recycling the Unit Appendix: Maintenance Checklist Appendix: Wiring Diagram Ultrasonic Humidifier - Reservoir Appendix: Wiring Diagram Ultrasonic Humidifier - Medium Appendix: Wiring Diagram Ultrasonic Humidifier - Large (A-unit) Appendix: Wiring Diagram Ultrasonic Humidifier - Large (B-unit) Contents | 5 2588787_B_EN_2005_US_OM...
- Page 6 This page intentionally left blank.
-
Page 7: Introduction
If you have additional questions, please contact your Condair representative. They will be glad to assist you. General 1.2.1 Limitations of the Manual The subject of this manual is the Ultrasonic Humidifier in its different versions. -
Page 8: Available Manuals And Languages
Follow all local guidelines and regulations regarding the installation and operation of the unit; this includes (and not limited to) mounting, plumbing, water, gas, ventilation, and electrical connections. Please consult your local Condair representative to learn more. 8 | Introduction... -
Page 9: For Your Safety
"Technical Data" on page 19 in for details. Any other type of application, without the express written consent of Condair, is considered to be NOT conforming to its intended purpose, and may lead to dangerous operation and will void the warranty. - Page 10 Modifications to the Unit Prohibited Modifications are NOT permitted on the Ultrasonic Humidifier without the express written consent of Condair. 10 | For Your Safety 2588787_B_EN_2005_US_OM...
- Page 11 Safety Labels The safety label (hygiene) is found on the right wall inside the plumbing cabinet (on the panel separating the electrical cabinet). For Your Safety | 11 2588787_B_EN_2005_US_OM...
-
Page 12: Hygiene
There are multiple points in the humidification system where a contamination can occur. It is the responsibility of the customer and of Condair to ensure that health hazards due to contamination are reduced to acceptable levels. The use of a hygiene risk assessor is recommended. -
Page 13: Guidelines To Keep A Clean System And Prevent Micro-Organism Growth
Training and guidance. Note: * Condair uses a quick method for measuring bacterial activity in the water with the use of BactiQuant (BQ). Once the water sample has been taken, the bacteriological quality of the water is read within 30 minutes, and the Condair service team will disinfect the system if necessary. - Page 14 Ensure that the results of every assessment is recorded. IMPORTANT! Failure to make adequate provision against the outbreak of disease, such as Legionnaires' disease, may cause fatalities, illness, and liabilities 14 | Hygiene 2588787_B_EN_2005_US_OM...
-
Page 15: Product Description
Product Description General Description The Ultrasonic Humidifier is a steam-less humidifier. To humidify the space, the Ultrasonic Humidifier creates mist using piezoelectric transducers. Mist is expelled from the unit with internal fans, and an Ultrasonic Blower Pack (if installed), into the space. Mist is then absorbed into the air. The Ultrasonic Blower Pack comes in 4 different output capacities;... -
Page 16: Functional Description
Figure 1 - Typical Installations* Installation with the Ultrasonic Blower Pack Flexible tubes Electrical disconnect, high voltage supply Drain line to air gap funnel Trap Expansion tank R.O. system Note: * Water, electrical, and drain connections not shown for the large model. Functional Description The Ultrasonic Humidifier is an adiabatic unit that uses transducers in the humidifier's water reservoir to create a 16 | Product Description... - Page 17 fine mist using high-frequency vibrations (1.7 MHz). Treated water enters the humidifier's reservoir from an inlet located at the bottom of the unit. The water that enters the humidifier's reservoir must be treated to remove minerals, bacteria and fungi, and should otherwise be pure to prolong the service cycle of the unit and, above all, safeguard the public.
- Page 18 Control Mist production can be controlled using the continuous proportional (P) or the proportional-integral (PI) controller internal to the humidifier, or an external modulation controller, or with an On/Off control signal from an external humidistat. 18 | Product Description 2588787_B_EN_2005_US_OM...
-
Page 19: Product Specifications
Product Specifications Technical Data 5.1.1 Capacity Table 2: Ultrasonic Humidifier Capacity Capacity Model Housing Size at 120V/208/240V/1 Mist Production Power Rating US 7 Medium 3 kg/h (6.6 lb/h) 250 W US 13 6 kg/h (13.2 lb/h) 250 W US 20 9 kg/h (19.8 lb/h) 650 W US 40*... - Page 20 * If the water entering the RO-U system is greater than the values indicated in this table, install a water softener between the water supply and the Reverse Osmosis System. ** Contact your Condair representative if the conductivity of the supply water is greater than 350 µS/cm. 20 | Product Specifications...
-
Page 21: Fill Rate
< 200 CFU/ml for industrial applications** follow applicable regulations * if the conductivity of the water entering the RO-U system is greater than 350 µS/cm, contact your Condair representative . ** CFU leaving the unit via mist should be <1000 CFU/ml for industrial applications. Keep the CFU entering the humidifier as low as possible, such that the CFU leaving the unit is within acceptable guidelines. -
Page 22: Weights
5.1.5 Weights Table 3: Ultrasonic Humidifier Weights (excludes flexible tubes) Model Housing Weight US 7 Net weight 40 kg (88 lb) US 13 Medium Operating weight 42 kg (93 lb) US 20 US 40 Net weight 73 kg (161 lb) Large Operating weight 77 kg (170 lb) Table 4: Ultrasonic Blower Pack Packaged Weight Model Weight... -
Page 23: Operating Data
Operating Data 5.2.1 Control Signal Control Signal Type: Active 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-20 VDC, 0-16 VDC, 0-20 mADC, 4-20 mADC Passive 135-10kΩ ohmic humidity sensor On/Off Control < 9.5 VDC Off 15-24 VDC On 5.2.2 Ambient Conditions Ambient Conditions: Ambient Temperature... -
Page 24: User Interface
User Interface User Interface Controls The user interface of the Ultrasonic Humidifier is located at the front of the unit. It consists of a display screen with four buttons and an On/Off switch. Refer to "Navigation Elements" on the next page. -
Page 25: Navigation Elements
Figure 4 - Ultrasonic Humidifier Home Screen - Single Reservoir Humidity control information - shows the control signal type and requested demand Operating/Service/Warning/Fault status message Visual indication of the current mist output level Figure 5 - Ultrasonic Humidifier Home Screen - Dual Reservoir Humidity control information - shows the control signal type and requested demand Humidifier A visual indication of the current mist output level Humidifier A Operating/Service/Warning/Fault status message... -
Page 26: Operating And Fault Status
Figure 6 - Navigation Elements Menu button - press this button to display and hide the menu Up button Down button Enter button - press this button to make a selection in a menu or save a setting 6.2.3 Operating and Fault Status The operating and fault status is shown at the bottom of the home screen (refer to "Home Screen"... -
Page 27: Maintenance And Service Status
Table 9: Operating and Fault Status Descriptions Message Description Starting The humidifier is starting up. Idle The humidifier is idle and waiting for demand. Idle Drain The humidifier is idle and the reservoir is empty. Filling The reservoir is filling with water. Misting The humidifier is producing mist. -
Page 28: Configuration Menu
Figure 7 - Main Menu Screen The following menus may be accessed from the Main Menu: Configuration Features Menu - Set the flush cycle for each reservoir and activate the Ultrasonic Blower Pack. Refer to "Features Menu" below. Control Settings - Change settings such as, fan speed, manual capacity, setpoint, control mode, signal type, bandwidth, and integral time. -
Page 29: Control Settings
Figure 9 - Features Menu Flush Cycle A/B Blower Pack A/B Set the desired interval time (hours) to flush the Activates the Ultrasonic Blower Pack attached to reservoir. For humidifiers with dual-reservoirs, the humidifier. Each Ultrasonic Blower Pack should this setting will allow each reservoir to cycle Installed connected to its own reservoir. - Page 30 Dual Humidifier Mode Control Configuration Change this setting to adjust how the dual Select a control signal channel for the humidifier. nebulizing modules (water reservoir assembly Changing the Control Configuration to Single or Dual with transducers, drivers, and fans) react to Channel will change the Control Settings menu to humidifier demand.
-
Page 31: General
Table 11: Control Channel Options Setting Description Options/Range Factory Setting Setpoint Set the humidifier to operate at a fixed humidity 0-100 % 50 % setpoint value. Control Select the general control mode for the incoming Demand - Control signal is from an Demand Mode control signal. -
Page 32: Service
LCD Backlight Factory Defaults Set the length of time the LCD screen remains Restore the humidifier settings to the factory brightened after inactivity from the user. settings. 0-60 Range: seconds Factory Setting: seconds Software Version View the software version of the controller and installed driver boards. 6.2.7 Service View and reset the status reminders. -
Page 33: Changing Your Settings
6.2.8 Changing Your Settings This section shows a brief overview of available settings and where to go to change them. Do not forget to press enter to save your change. I want to... 6.2.8.1 Change the period between flushing cycles. (refer to "Flush Cycle A/B"... -
Page 34: Change The Fan Speed Of The Nebulizing Module
6.2.8.7 Change the fan speed of the nebulizing module. "Fan Speed" on page 30 (refer to Main Menu > Configuration > Control Settings > Fan Speed 6.2.8.8 Change the LCD display settings. "LCD Contrast" on page 31 "LCD Backlight" on page 32 (refer to Main Menu >... -
Page 35: Operation
Operation General Personnel Qualifications The Ultrasonic Humidifier must only be operated by personnel who are adequately qualified, competent, and are authorized by the customer. Safety Observe the following safety precautions. DANGER! Risk of electric shock! The unit is mains powered. Using the On/Off switch on the humidifier to shut down the unit will NOT shut off power to the control cabinet. -
Page 36: Inspecting The Unit
Refer to "Shutting Down the Unit" on the facing page. If assistance is required, please contact your Condair representative. Starting Up IMPORTANT! Clean and disinfect the unit if the unit has been unpowered for an extended period of time (over 48 hours). -
Page 37: Shutting Down The Unit
To restart the unit: Examine the humidifier and other system components for damage. Check for loose or damaged electrical connections, and ensure that the humidifier and its components have not shifted from their mountings, and are securely fastened. Turn on the water supply to the humidifier and check for leaks. Reinstall and secure any removed door panels. -
Page 38: Maintenance
(for more than 48 hours) unless it is deemed necessary, as unpowered units will not flush. Cleaning and Disinfecting Cleaning and disinfecting should be performed by authorized persons. Contact your Condair representative for more details. Refer to "Maintenance List"... -
Page 39: Diluting Your Disinfecting Solution (H2O2) To 0.1
To disinfect a component: Review the maintenance instructions for the component that will be cleaned and disinfected. Specific considerations must be taken into account for some components. Ensure UV assembly is shut down before disinfection. Clean the component with hot water and soap, and rinse with water. Remove biofilms and any surface impurities. -
Page 40: Maintenance List
If the total volume of the required final mixture is NOT known, but volume of fresh water is known: 1. Calculate the required volume of concentrated disinfectant Required Volume of [Volume of [Desired Concentration of Mixture]% Concentrated Fresh [Concentration of Disinfectant]% - [Desired Concentration of Mixture]% Disinfectant Water] Table 12:... - Page 41 Table 13: Maintenance and Cleaning List Component Frequency Description "Removing Drain valve Annually Inspect and clean the drain valve of any scale and debris. Refer to and Installing the Drain Valve" on page 50 Drain cup Annually Inspect and clean the drain valve of any scale and debris. Wash with soap and warm water.
- Page 42 Pack. If the air quality is bad, replace the air filters weekly, and if the air quality is good, replace the air filter monthly. Depending on performance and air quality, this may be extended — contact your Condair representative. Figure 13 -...
-
Page 43: Maintenance Procedures
Figure 14 - Cleaning the Water Reservoir Maintenance Procedures Ensure that the humidifier is shut down properly and observe all safety precautions described in this manual. Refer to "Shutting Down the Unit" on page 37 "For Your Safety" on page 9. Maintenance | 43 2588787_B_EN_2005_US_OM... -
Page 44: Removing And Installing The Door Panels
8.4.1 Removing and Installing the Door Panels Removing the Door Panels Remove the two door panels in the humidifier as follows. Refer to Figure 15 below Turn the captive screw in each door panel counter-clockwise with a screwdriver. Lift up the door panel slightly so that the tabs clear the notches in the cabinet, then carefully remove the panel. -
Page 45: Cleaning, Removing, And Installing The Water Reservoir
"Removal" below. Citric acid can be ordered from Condair (PN: 2589797). The following instructions can only be performed while the water reservoir is removed from the unit. It is suggested to also inspect and perform maintenance on the UV assembly and transducers before the water reservoir is reinstalled into the humidifier. - Page 46 Figure 17 below Connect the earth connection on the earth tab. Refer to Connect the two electrical connectors on the water reservoir. Refer to Figure 17 below Install the flexible tubes on top of the water reservoir. Restart the humidifier as described in "Restarting the Unit"...
-
Page 47: Removing And Installing The Uv Assembly
8.4.3 Removing and Installing the UV Assembly Removal Remove the UV assembly as follows. Refer to Figure 18 below Remove the water reservoir from the humidifier . Refer to "Cleaning, Removing, and Installing the Water Reservoir" on page 45. Disconnect both water hoses. Remove the two screws that secure the UV assembly to the cabinet. -
Page 48: Replacing The Transducers (Piezoelectric)
8.4.4 Replacing the Transducers (Piezoelectric) Removal Remove the water reservoir from the humidifier as described in "Replacing the Transducers (Piezoelectric)" above. Position the reservoir upside down on a flat surface to access the piezo transducers. Remove the two screws that secure the fan assembly to the water reservoir. Refer to Figure 19 on the facing page Remove the two nuts that secure the transducer holder to the water reservoir. - Page 49 Figure 19 - Removal of Fan Assembly Screw (x2) Fan assembly Water reservoir Maintenance | 49 2588787_B_EN_2005_US_OM...
-
Page 50: Removing And Installing The Drain Valve
Figure 20 - Replacing Piezoelectric Transducers Rubber seal Notch position Empty holder Piezoelectric transducer Water reservoir Threaded studs Transducer spacer Transducer with holder Nut (x2) 8.4.5 Removing and Installing the Drain Valve Removal Remove the drain valve as follows. Refer to Figure 21 on the facing page Remove the water reservoir. - Page 51 Installation Figure 21 below Install the drain valve as follows. Refer to Install a new O-ring in the drain valve. Assemble the solenoid assembly. Orient the tapered end of the spring towards the nut and solenoid. Assemble the solenoid assembly to the valve body, and hand-tighten. Then turn an additional quarter turn.
-
Page 52: Replacing The Air Intake Filter
8.4.6 Replacing the Air Intake Filter Figure 22 - Air Intake Filter Replacement Air intake port Filter The air intake filter should be replaced regularly to minimize the intake of airborne contaminants. To replace the air intake filter: (Recommended) Shut down the humidifier as described in "Shutting Down the Unit"... - Page 53 Figure 23 - Internal Fuse Replacement Fuse, slow-acting (10 A) DANGER! Risk of electric shock! The unit is mains powered. Using the On/Off switch on the humidifier to shut down the unit will NOT shut off power to the control cabinet. Live parts may be exposed when the access panels or doors are removed.
- Page 54 Fuses on the Backup Battery Board and Driver Board Figure 24 on the facing page Replace the backup battery fuse and the driver board fuse as follows. Refer to Remove the door panel on the control cabinet. Remove the locking screw and swing the front panel open. Replace the fuse “F1”, located on the driver board, with a new slow-acting 315 mA fuse.
- Page 55 Figure 24 - Driver Board and Backup Battery Fuse Replacement Fuse, 4 A slow-acting Fuse, 315 mA slow-acting Driver board Battery backup board Battery Maintenance | 55 2588787_B_EN_2005_US_OM...
-
Page 56: Replacing The Transducer Driver Board
Figure 25 - Fuse Replacement on Transducer Driver Board Fuse, 3.15 A slow-acting 8.4.8 Replacing the Transducer Driver Board Removal Figure 26 on the facing page Remove the transducer driver board as follows. Refer to Unplug the power connector Unplug the transducer connections Remove the 3 screws, that secure the driver board to the water reservoir Remove the driver board Installation... -
Page 57: Replacing The Battery
Connect the transducer wires (2 orange and 2 yellow) to the driver board. Connect the power wire to the board. Figure 26 - Replacing the Transducer Driver Board Transducer driver board Screw Power connector Transducer wires Screw (x2) Figure 27 - Applying Thermal Paste to the Driver Board Dot of thermal paste Transistor... - Page 58 to flow out of the unit when power is shut off. DANGER! Risk of electric shock! The unit is mains powered. Using the On/Off switch on the humidifier to shut down the unit will NOT shut off power to the control cabinet. Live parts may be exposed when the access panels or doors are removed.
-
Page 59: Troubleshooting
Troubleshooting Troubleshooting of the Ultrasonic Humidifier must only be performed by qualified and competent personnel. Electrical repairs must only be performed by a licensed electrician authorized by the customer, or by Condair service technicians. Troubleshooting the Ultrasonic Humidifier may require the user to access the inside of the unit, to the control and plumbing cabinets, which may expose the user and equipment to hazards described in "For Your Safety"... - Page 60 Drain fault Probable Cause Corrective Action "Drain fault" appears when the permissible draining time has been exceeded and the sensors still detect a water in the reservoir. Drain line clogged Clean the drain line. Clogged or defective drain valve Clean the drain valve. Replace the drain valve if necessary. Water level sensor stuck Clean the water level sensor inside the reservoir.
-
Page 61: Resetting Fault Status
B. Power cycle the humidifier. Unexpected driver board fault Contact your Condair representative. Resetting Fault Status If the cause of the fault is not resolved, the fault message will return on the Home screen. Reset a condition in the humidifier with a fault status as follows: Press the On/Off button at the front of the humidifier to Off and wait for 5 seconds. - Page 62 The Ultrasonic Humidifier and its components must NOT be disposed in domestic waste, and should be brought to an authorized collection point. If required, dispose in accordance with local regulations at authorized collection facilities. If you have any questions, please contact the appropriate local authorities, or your local Condair representative. Decommissioning | 62 2588787_B_EN_2005_US_OM...
- Page 63 APPENDIX Appendix 2588787_B_EN_2005_US_OM...
- Page 64 A Appendix: Maintenance Checklist Maintenance Checklist | 64 2588787_B_EN_2005_US_OM...
- Page 65 B Appendix: Wiring Diagram Ultrasonic Humidifier - Reservoir MU-6 MU-5 MU-4 MU-3 MU-2 MU-1 LEVEL SWITCH MAIN TACH Figure 28 - Wiring Diagram of the Ultrasonic Humidifier Reservoir Legend CN1: Misting unit power input T1-T12: Transducers Internal fuse 48V (3.15mA, slow acting)
- Page 66 C Appendix: Wiring Diagram Ultrasonic Humidifier - Medium GNYE PSU1 PSU3 PSU2 SMPS SMPS ON/OFF SWITCH 24VDC/75VA 24VDC/100VA SMPS 48VDC/600VA -V +V +V -V To PSU1A -V (LARGE UNIT ONLY) 230VAC/50Hz To CN4 110...240V 50/60Hz (BLOWER CONTROL) UHUV-10...
- Page 67 Legend Internal fuse 24 V supply (315 mA, slow acting) Jumper, do not remove Jumper, do not remove PSU1: Power supply 24 VDC 50 VA PSU2: Power supply 48 VDC 600 VA On/Off switch Rotary switch module identification: 0 Level, temperature and fan connection Missing units power connection XE1: Supply voltage terminal block...
- Page 68 D Appendix: Wiring Diagram Ultrasonic Humidifier - Large (A-unit) MODULE A GNYE - B(N) to X0 - B(L) to X0 to X0 - B(PE) GNYE GNYE PSU1 PSU3 PSU2 SMPS SMPS ON/OFF SWITCH 24VDC/75VA 24VDC/100VA SMPS...
- Page 69 Figure 30 - Wiring Diagram of the Large Ultrasonic Humidifier Legend Internal fuse 24 V supply (315 mA, slow acting) Jumper, do not remove Jumper, removed on driver board A, installed on driver board B PSU1: Power supply 24 VDC 50 VA PSU2-PSU3: Power supply 48 VDC 600 VA On/Off switch...
- Page 70 E Appendix: Wiring Diagram Ultrasonic Humidifier - Large (B-unit) - A(N,L,PE) to X0 to X0 - A(N'L'PE') MODULE B to X0 - B(N) - B(L) to X0 - B(PE) GNYE to X0 PSU1 PSU3 PSU2...
- Page 71 Legend Internal fuse 24 V supply (315 mA, slow acting) Jumper, do not remove Jumper, removed on driver board A, installed on driver board B PSU1: Power supply 24 VDC 50 VA PSU2-PSU3: Power supply 48 VDC 600 VA On/Off switch Rotary switch module identification: 0 Level, temperature and fan connection Missing units power connection...
- Page 72 Notes:...
- Page 73 Warranty Condair Inc. and/or Condair Ltd. (hereinafter collectively referred to as THE COMPANY), warrant for a period of two years after installation or 30 months from manufacturer’s ship date, whichever date is earlier, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and workmanship.
