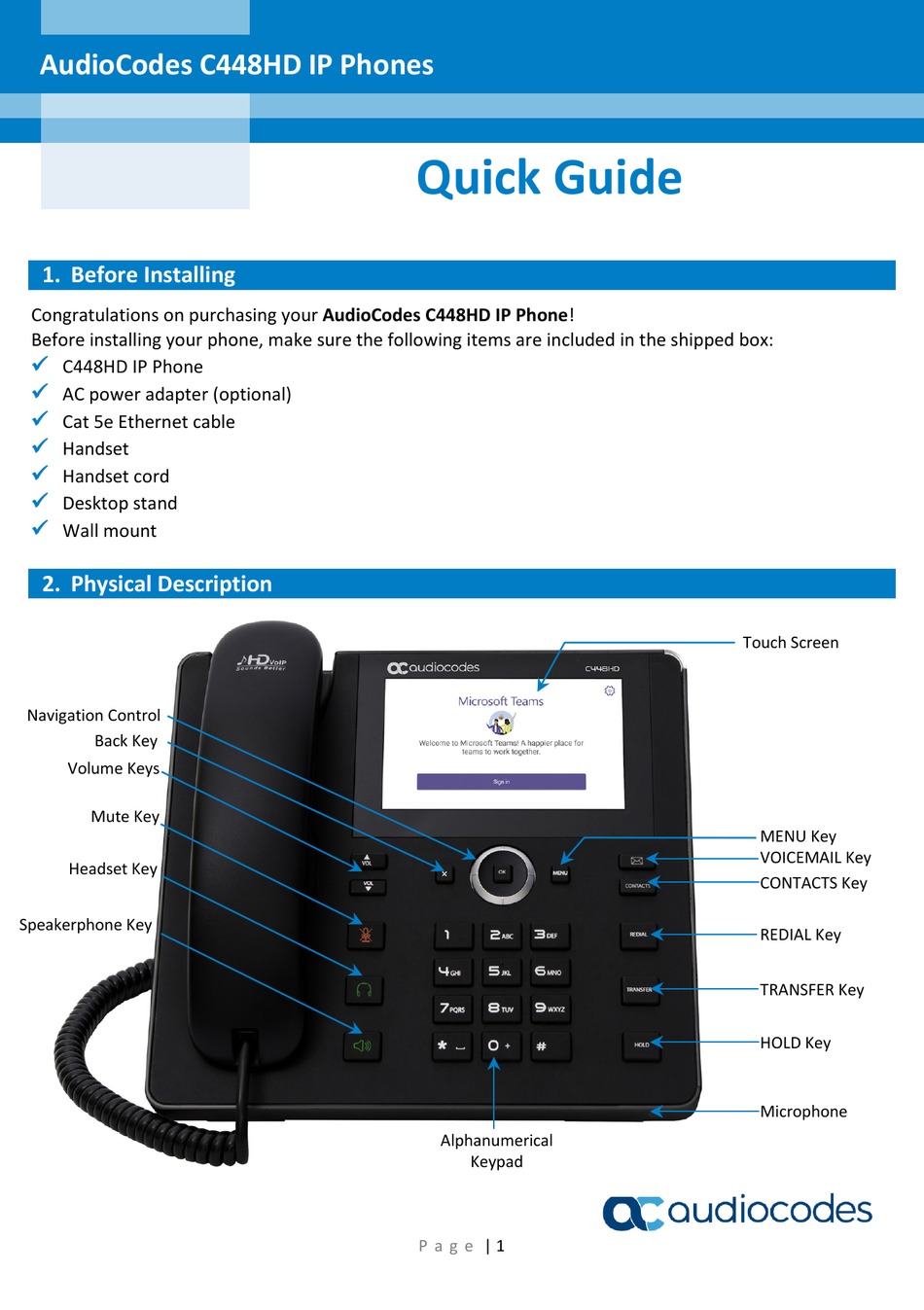

AudioCodes C448HD IP Phones
1. Before Installing
Congratulations on purchasing your AudioCodes C448HD IP Phone!
Before installing your phone, make sure the following items are included in the shipped box:
C448HD IP Phone
AC power adapter (optional)
Cat 5e Ethernet cable
Handset
Handset cord
Desktop stand
Wall mount
2. Physical Description
Navigation Control
Back Key
Volume Keys
Mute Key
Headset Key
Speakerphone Key
Quick Guide
Alphanumerical
Keypad
P a g e
| 1
Touch Screen
MENU Key
VOICEMAIL Key
CONTACTS Key
REDIAL Key
TRANSFER Key
HOLD Key
Microphone

Advertisement

loading
Need help?

Need help?

Do you have a question about the C448HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioCodes C448HD

Summary of Contents for AudioCodes C448HD

  • Page 1 AudioCodes C448HD IP Phones Quick Guide 1. Before Installing Congratulations on purchasing your AudioCodes C448HD IP Phone! Before installing your phone, make sure the following items are included in the shipped box: C448HD IP Phone   AC power adapter (optional) Cat 5e Ethernet cable ...

  • Page 2: Cabling The Phone

    3. Cabling the Phone Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information document at https://www.audiocodes.com/library/technical-documents.  To cable the phone: [Refer to the illustration below] Connect the short, straight end of the phone cord to the handset and the longer straight end of the cord to the handset jack on the phone.
  • Page 3 4. Mounting the Phone on a Desktop or Wall Desktop: Slide the L-shaped stand's short or long edge slots onto these rails.   Wall: Slide the wall mount fitting onto these rails. Wall Mount Desk Mount To mount the phone on a wall: ...
  • Page 4 Hang the plate on the screws. Attach the phone to the plate. P a g e...
  • Page 5 5. Signing In  To sign in with your username and password: After connecting to the network, touch the Sign In button. Enter your username (e.g., johnb@company.com). Enter your password (the same as your Microsoft Exchange password). P a g e...
  • Page 6 Touch the Sign In button, and then select the Sign in from another device option. In the Web browser, navigate to https://microsoft.com/devicelogin. In the Microsoft Web page, enter the code shown on the C448HD screen, and then complete the process by entering your username and password.

  • Page 7: Basic Phone Operations

    6. Basic Phone Operations To make a call: Enter a phone number, and then touch the DIAL menu. To call a phone contact,  touch the DIRECTORY menu, select the directory contact, and then touch the DIAL menu.  To redial a number: Press the REDIAL key, select a dialed number, and then touch the DIAL menu.
  • Page 8 Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-documents.
