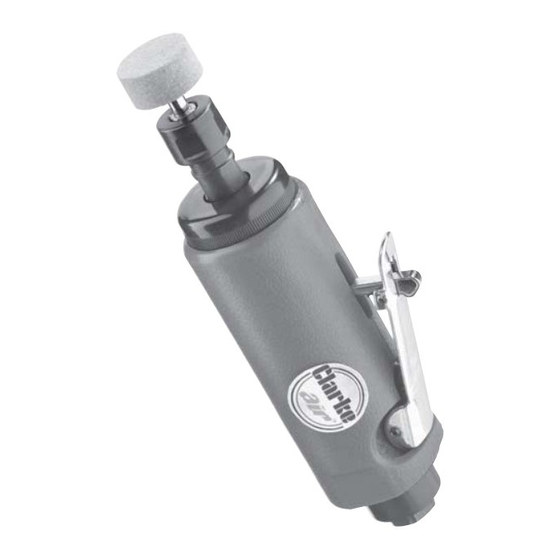

- Page 1 14 PIECE DIE GRINDER KIT MODEL No: CAT112 Part No: 3120132 OPERATING & MAINTENANCE INSTRUCTIONS GC0409...
-
Page 2: Introduction
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Table Of Contents
Declaration of Conformity ..............15 TECHNICAL SPECIFICATION " 4 Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. -
Page 4: Overview
The lightweight composite housing also helps to reduce vibration & a lever lock throttle is provided for extra safety. Unpack and lay out the components, checking against the following list. Any damage or deficiency should be reported to your CLARKE dealer immediately. Die Grinder... -
Page 5: General Safety Precautions
• Do not carry out any alterations or modifications to the die grinder. • The die grinder should be serviced as required by your CLARKE dealer. • Never use the grinder if it is defective or operating abnormally. - Page 6 • Always disconnect from the air supply when: Performing any maintenance. The grinder is not in use. The grinder will be left unattended. Moving to another work area. • Avoid damaging the die grinder for example by applying excessive force. •...
-
Page 7: Air Supply Requirements
AIR SUPPLY REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Air compressors used with the grinder must comply with the appropriate European Community safety directives. -
Page 8: Assembly & Operation
4. Connect the other end of the hose to FIG 1 the compressor. (A whip hose with a quick fit coupling is available from your CLARKE dealer). 5. Turn on the air supply and check for air leaks. Rectify any found before proceding. - Page 9 FITTING THE GRINDING STONE IMPORTANT: Never use chipped or cracked grind stones. 1. Slip the shank of the chosen stone into the collet and tighten the screw cap finger tight. 2. Place the smaller of the two wrenches over the collet seat to stop the grinder from rotating.
-
Page 10: Troubleshooting
2. If the grinder is not to be used for longer than 24 hours, run a few drops of CLARKE airline oil into the air inlet and run the tool for a few seconds to ensure that the oil has been well distributed throughout the die grinder. -
Page 11: Maintenance
SAE No10 oil and paraffin. Allow to dry before use. SERVICE AND REPAIR • Major servicing and repair must be carried out by your local CLARKE dealer. AIRLINE PERFORMANCE Please note that factors other than the tool may effect its operation and... -
Page 12: Parts Lists And Diagrams
PARTS LIST AND DIAGRAM n i l ) l l ) l l... -
Page 13: Vibration Emissions
VIBRATION EMISSIONS HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz. - Page 14 You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY...
