Quick Setup

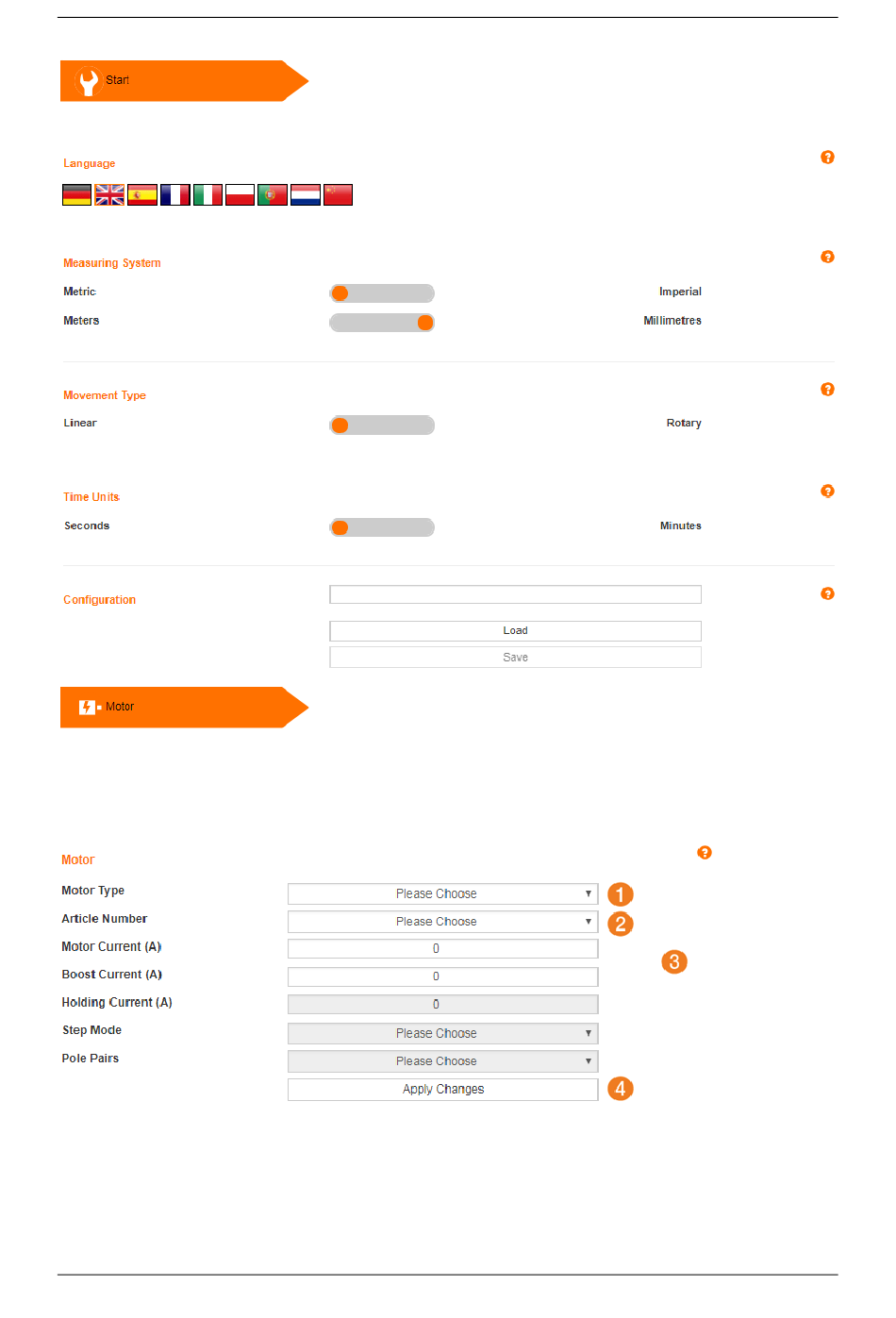

After a connection has been established, the user is automatically transferred to the Start page of the dryve. All the necessary
settings for "quick initial operation" of the system have already been made ex works.
1. Specify the motor type
®
2. Select the igus article number that is shown on the motor label
3. The parameters are set automatically
4. Leave the field by clicking in a free area
5. Click on "Apply"
If an customer motor is to be used, select "User Defined Article" at the "Article Number" dropdown menu and set the parameters
manually.
