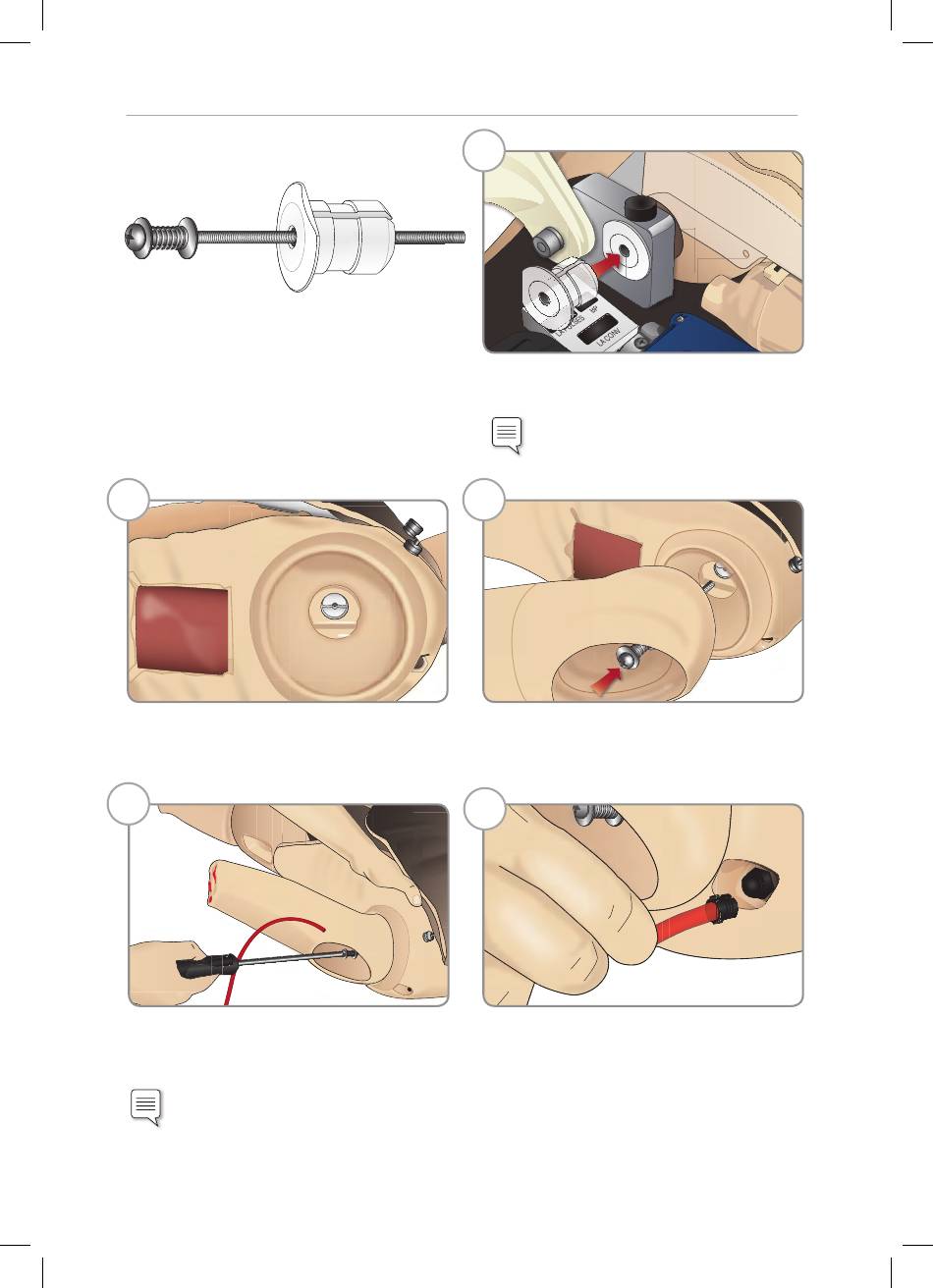

Attaching SimMan 3G Amputation or Shotgun Arm
1
The Arm Adapter and Adapter Screw
are designed to attach an Amputation or
Gunshot Arm to the SimMan 3G manikin.
2
2. The Adapter is now in place and the
Trauma Arm can now be connected
with the Adapter Screw.
4
4. Secure the Adapter with one hand from
inside the torso. Screw the Adapter Screw
using the Phillips screwdriver.
Note: Tighten screw as desired to simulate
more or less Arm Range of Motion.
1
1. Fit the Arm Adapter into the hole in the
arm bracket from inside of the torso.
Ensure that the flat edge of the adapter
is facing the chest hinge.
3
3. Thread the Adapter Screw through the
Amputation Arm and align the screw with
the hole in the Arm Adapter.
5
5. Connect the red tube from the
Amputation Arm to the nearest blood
port on the torso.
Caution: Do not over rotate arm. Over rotating
the Arm may cause the red vinyl tubing to
disconnect.
5
