Finelite HP-2 Recessed Installation Instructions page 3

HP-2 Recessed T-Bar Mitered Corner Installation Instructions

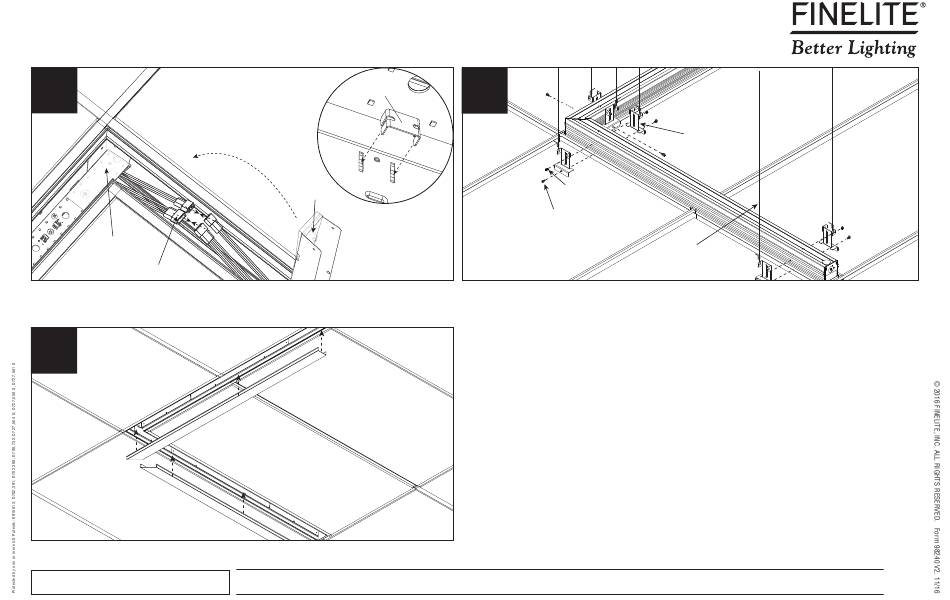

Step 11
Joiner/Ender
Starter
Double Diffuser
(pre-installed)
Plug-Together Wiring
Connect plug-together wiring. Close all back plates by pushing them back in their original position and pushing the clips
back in.
Step 13
Diffuser
Reinstall diffusers and turn power on to luminaires.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
Back Plate Clip
Back Plate
Diffuser
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 12
#8-18 x 1/4" Screws
(4) (provided)
#6-20 x 1/2" Self
Drilling Screws (4)
(provided)
Attach T-Bar bracket (provided) onto joiner/ender with #8-18 x 1/4" screws (provided). Secure joiner/ender to structure using tie-wire
(by others), as per code. Secure all luminaires to the T-Bar by driving #6-20 x 1/2" self drilling screws (provided) through the T-Bar
brackets (provided) into the T-Bar.
Starter
T-Bar Bracket
Joiner/Ender
Secure To Structure
(by others)
3
