Installation
5.6

Mounting the Device

The device is designed for installation on a grounded 35 mm DIN rail.

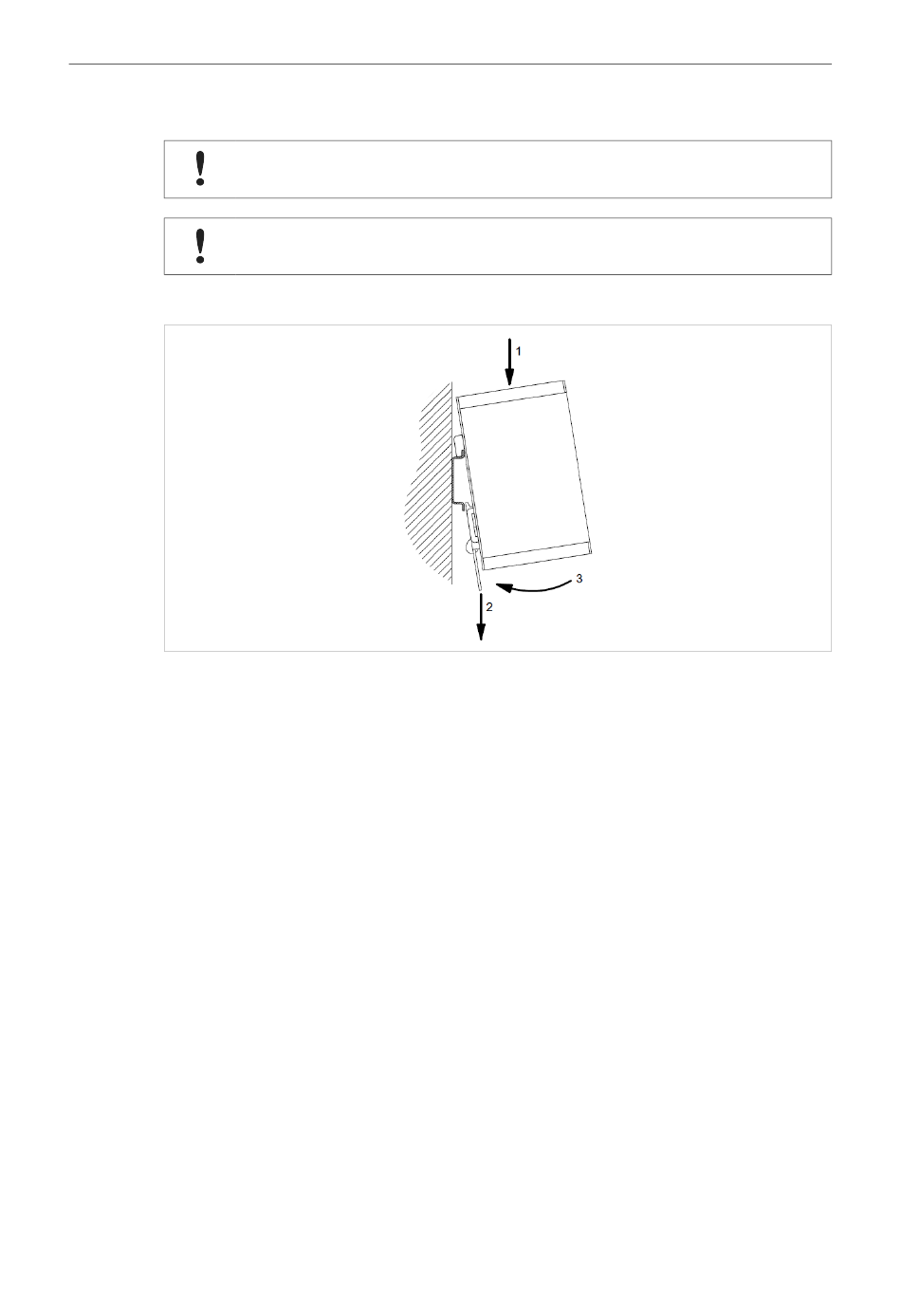

Fig. 4 Mounting the device
Recommended mounting distance:
• If venting slots are covered: 2 cm distance on top and bottom
• If venting slots are covered about 50 %: 1 cm distance on top and bottom.
► Ensure adequate air circulation.
► Make sure, that the device is connected to power supply (see
Connector, p.
► Make sure, that the device is connected to the computer (see
Computer, p.
► Mount the device on the rail (1).
Pull the tab downwards (2) and push the device towards the rail (3).
►
Release the tab.
►
→ After the installation the housing of the device is connected to functional earth.
► To remove the device, pull the tab downwards (2) to release the device from the rail.
SG-gateway User Manual
Damage caused by overheating!
Ensure adequate air circulation. Observe the recommended mounting distance.
Use in dry rooms exclusively.
9).
8).
