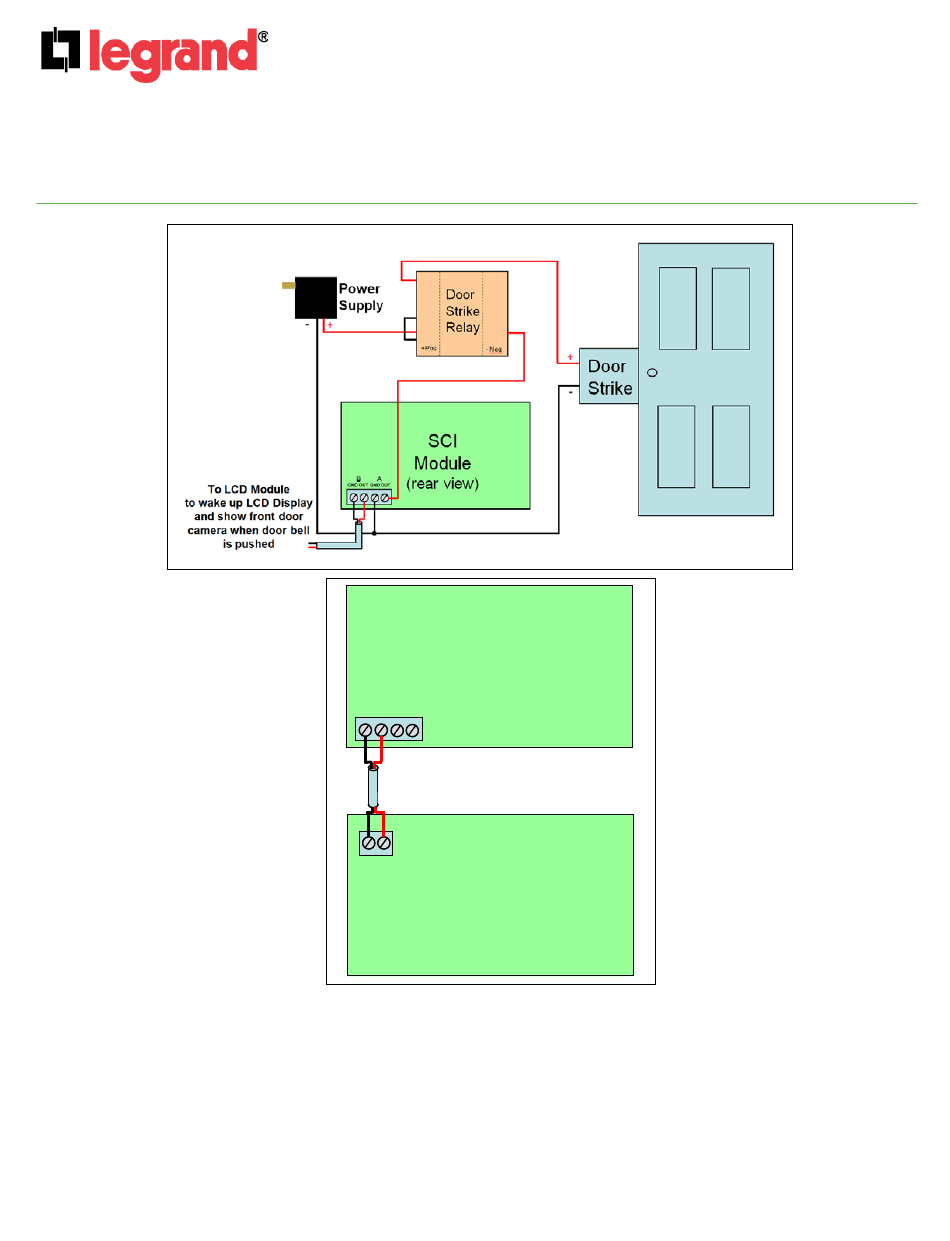

Figure 4
Door
Strike
Wiring
3. Terminate the other end of the labeled Cat 5e cables, at the Selective Call Intercom Distribution
Module, with RJ45 plugs using the T568A wiring standard and plug them into the appropriate RJ45
jack.
4. After all Units and Modules are connected, apply power to the Intercom Distribution Module and verify
system functionality.
©Copyright 2014 by Legrand All Rights Reserved.
INSTRUCTION / INSTALLATION SHEET
Selective Call Intercom Distribution
Module (P/N IC5010)
A A
B B
GND GND OUT OUT GND GND OUT OUT
Wake ups LCD Display and Wake ups LCD Display and
Figure 5
shows front door camera shows front door camera
Video
when door bell is pushed when door bell is pushed
Door
GND GND
TRG TRG
Wiring
VID_1 VID_1
SCI SCI
Module Module
(rear view) (rear view)
LCD LCD
Module Module
(rear view) (rear view)
