1. Introduction

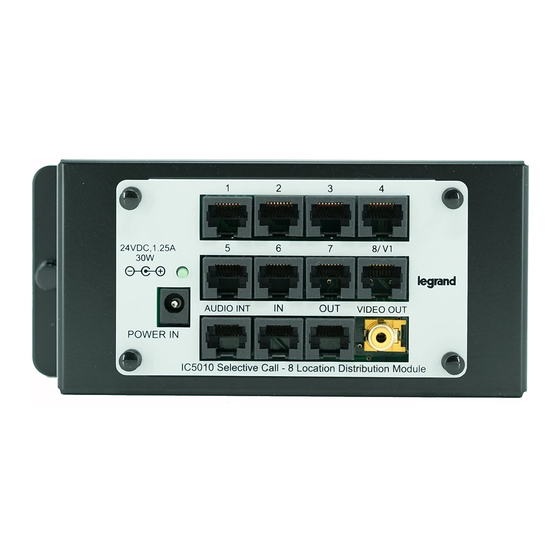

The Legrand Selective Call Intercom Distribution Module (P/N IC5010) is a single bay module that supports
the audio, power and control requirements of up to 8 units in any combination of Room, Door and Patio (see
Figure 1).

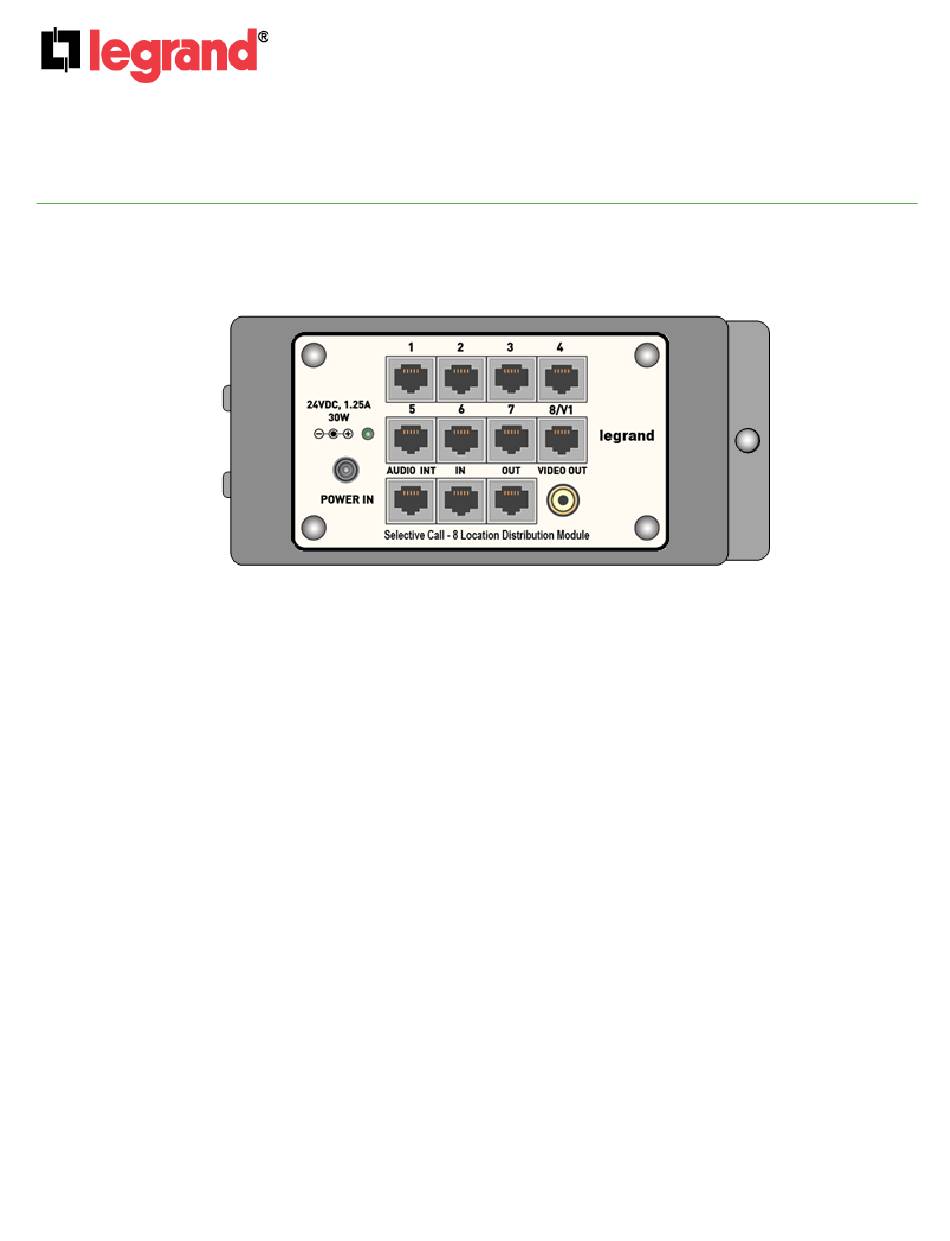

Figure 1

2. Description

The Selective Call Intercom Distribution Module is located in the enclosure and connected to each Room,
Door and Patio Unit via a single Cat 5 cable. Up to eight units of any combination are supported by each
module and modules may be cascaded three times, for a total system support of up to 32 Units. The RJ45
jacks labeled "1-8" are used for the various Units, with jack 8/V1 supporting Video Door Units. The jacks
labeled "IN" and "OUT" are used for cascading modules. The jack labeled "AUDIO INT" is used to connect to
the lyriQ™ Audio Distribution System to automatically mute the whole house audio when the Intercom system
is utilized. The "VIDEO OUT" RCA jack is used to output images from a Video Door Unit. The Module comes
with a single bay bracket for mounting in an On-Q style enclosure.
NOTE: The maximum Cat 5 cable run distance between the SCI Module and another unit (Module,
Door, Patio or Room Unit) is 330' with the following exception. One Door or Patio Unit may be placed
up to 1000' (up to 650' for a Video Door Unit) from the SCI Module, but it needs to be locally powered
and Legrand needs to be informed of and pre-approve this type of installation. If the Cat 5 run is
buried in an underground conduit, it should maintain a 16" separation from any 110VAC wiring.
Additional SCI Modules are recommended to be placed in the same enclosure, powered from the
same power strip, and interconnected with the shortest Cat 5 connections possible.

3. Installation

Installation of the Selective Call Intercom Distribution Module is best accomplished at multiple times during
new construction, at "Rough-in" before the drywall is installed, and at "Trim-out" after the drywall is installed
and painted.
A. "Rough-in" steps:
1. Run a single Cat 5e cable from the Enclosure where the Selective Call Intercom Distribution Module will
be installed to each of the 2 gang boxes at the eventual Room, Door and Patio Unit locations.
