Element Name
Macrobends
Out of range
Group
Element or fault ID
number
Optical Xplorer
Element Icon
Macrobends can be displayed in the
link view when more than one
wavelength is present in the
measurement.
This element is displayed when the
application cannot detect the end of
fiber because of insufficient
dynamic range.
Several link elements or faults are
combined when they cannot be
independently identified.
Testing Fibers
Working With Link View
Meaning

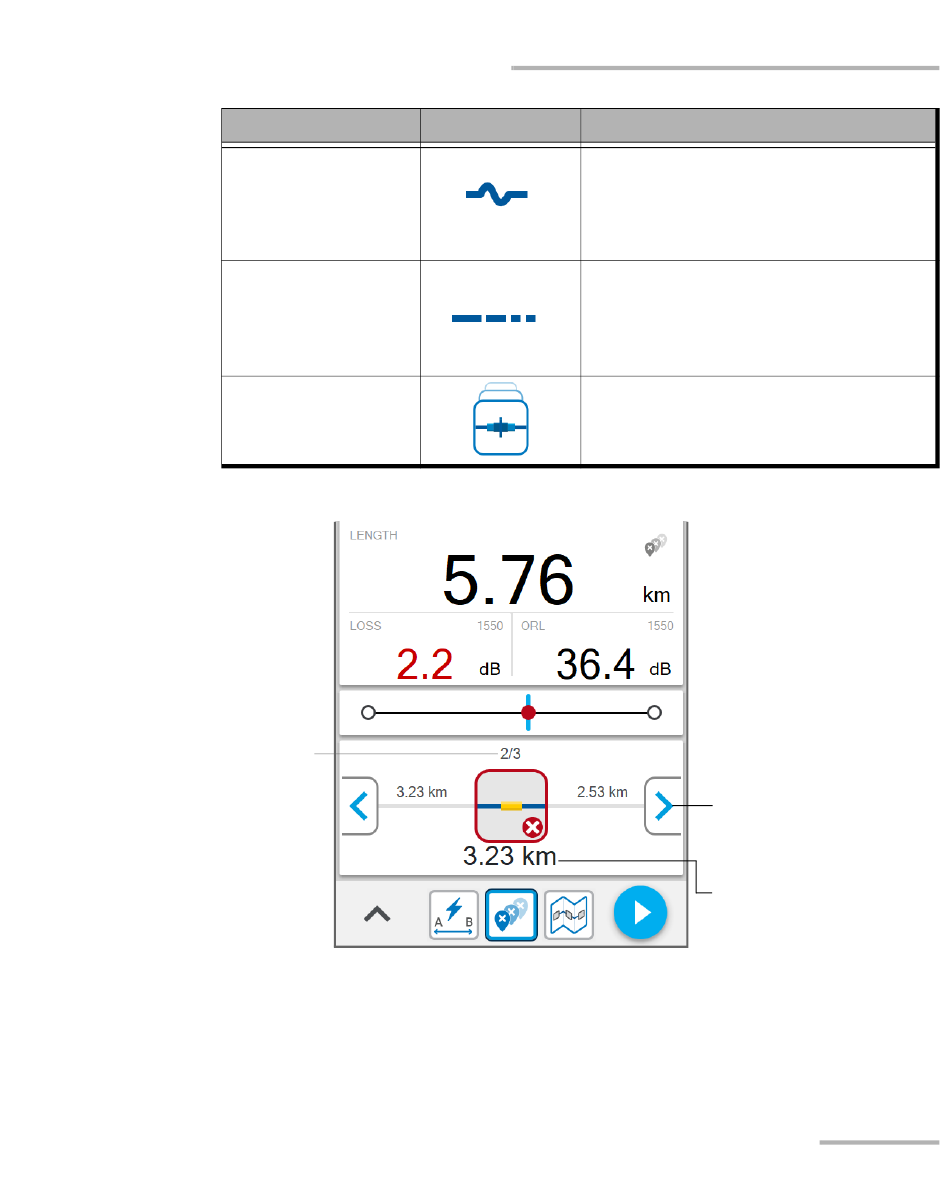

Navigation arrow
Position of the element
currently selected
