AXIOMTEK OPS885 Quick Installation Manual

4
Step 5.5 Affix the screws per
illustrated .
Find the Antenna cable and
connect 3G card. Screw the
antenna connector at expansion
I/O side and Install the antenna on
3G card
Note: You may also install
wireless LAN card at this socket
Remark: please be noted that
mSATA slot is near JAE-
TX25;For Standard Mini Card
slot is near rear I/O port
Caution: When plugging
OPS885 into an OPS display,
make sure the module's heat
sink is facing outside of the
display. Axiomtek is not
responsible for any damage
caused by wrong installation
9412M885010E
©Copyright 2013 Axiomtek Co., Ltd.
Version A1 October 2013
Printed in Taiwan
OPS885 Quick Installation Guide
Checklist
 OPS module x 1  Driver Disc x 1
 M3 x 4 screw x 2  M2 x 3 screw x 2
 Quick Installation Guide x1  M4 x 10 screw x 2
 Thermal Grease x 1  Thermal pad x 2
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information CD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.
Hardware Installation
Remark: Please be noted CPU is on board.

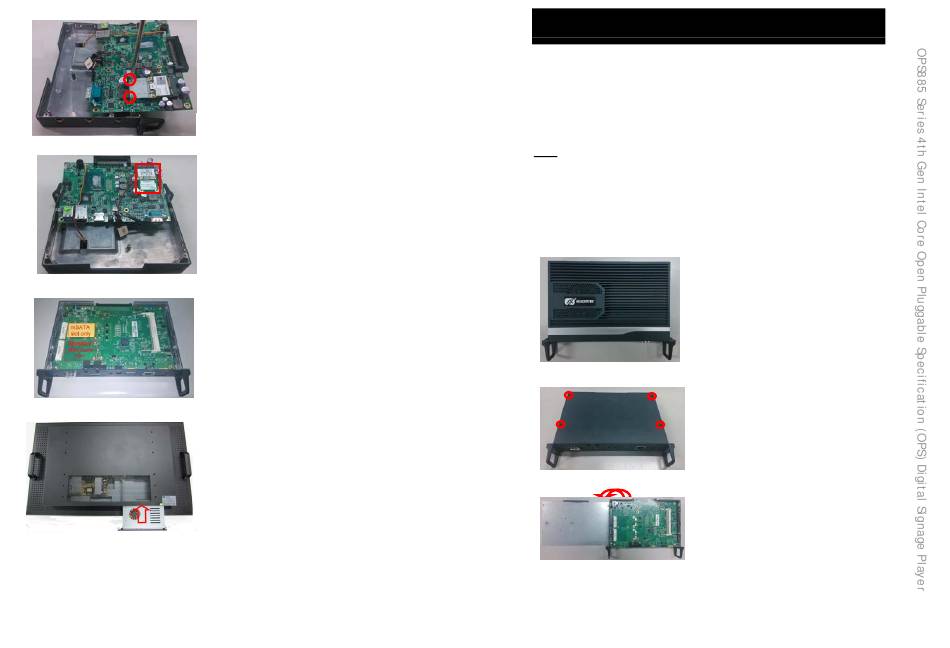

Step 1 Remove screws
Step1.1 Remove screws shown in the
pictures. Before fully opening the top
cover, disconnect its fan power cable
beneath it.
Step1.2 Remove screws at base side
Step1.3 Turn upper cover over as the
image illustrated
9412M885010E
©Copyright 2013 Axiomtek Co., Ltd.
Version A1 October 2013
Printed in Taiwan
1
