AXIOMTEK DSP300-318 Quick Installation Manual

Digital signage player

Hide thumbs Also See for DSP300-318:

Download this manual

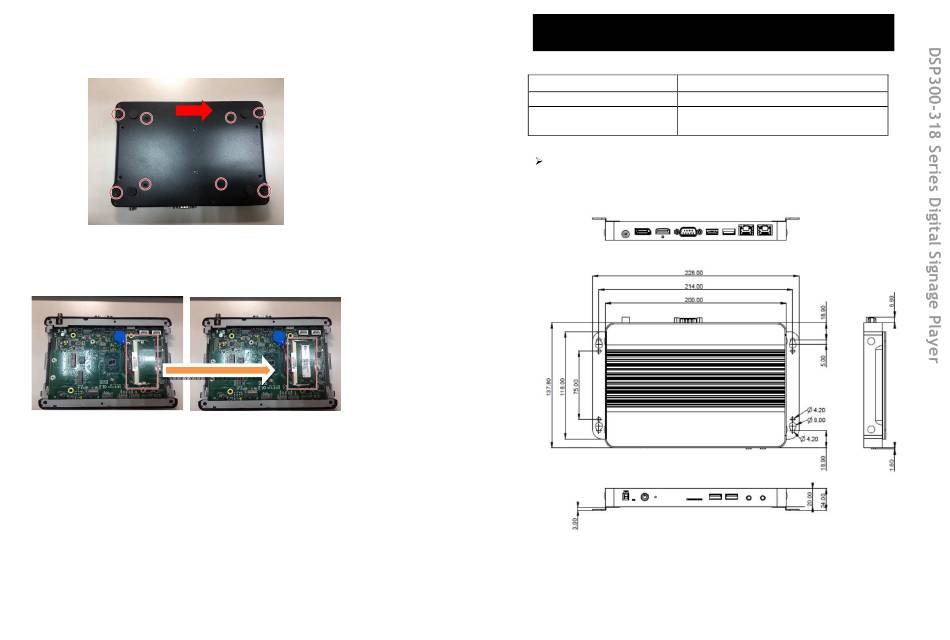

Installation of DIMM1 Memory

Step 1 Turn off the system and unplug the power cord.

Step 2

Turn the system upside down to locate screws at the bottom

and then loosen all screws.

Step 3 Open the TOP and SIDE cover.

Step 4 Located the DIMM socket on main board.

Step 5 Locate the memory module, insert a gold colored contact into

the socket and push the module two end latches till locked.

Step 6 Put the TOP & SIDE cover and fasten eight screws back onto

the system.

Note: Please refer to the user's manual to get more detail information.

Version A1 December 2018

Printed in Taiwan

9412K300000E

DSP300-318 Quick Installation Guide

Packing List

System Unit x 1

DVD/CD x 1 (for Driver & Manual)

Quick Installation Guide x 1

36W power adapter x 1

US power cord x 1 or

Foot Pad x 4

EU power cord x 1

Do not try to apply power to the system if any damaged components.

Dimensions

Version A1 December 2018

Printed in Taiwan

9412K300000E

Need help?

Do you have a question about the DSP300-318 and is the answer not in the manual?
