AXIOMTEK DSP600-211 Series Quick Installation Manual

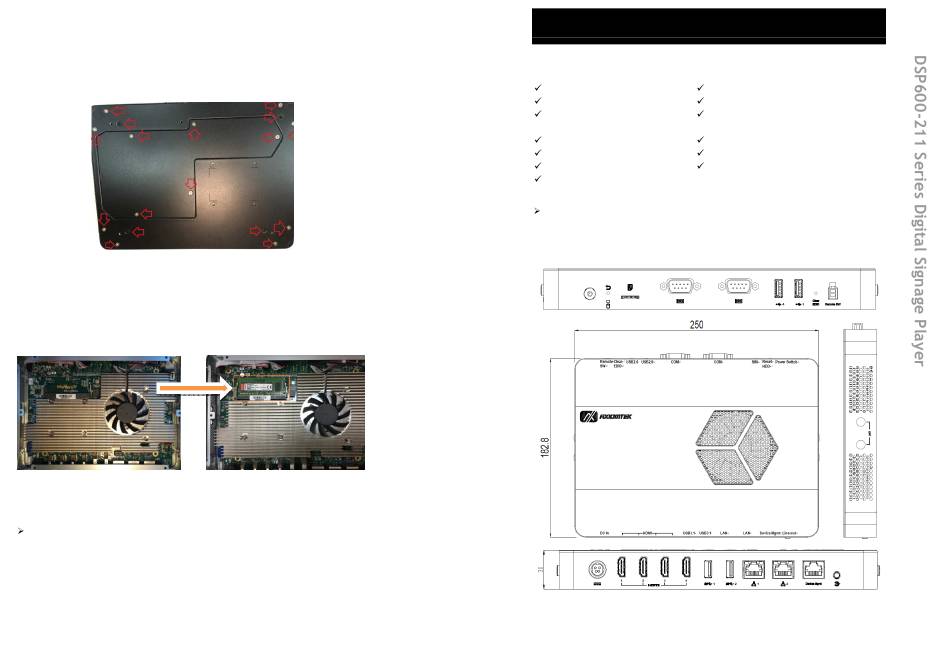

Installing SO-DIMM1 memory module
Step 1 Turn off the system and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom
and then loosen all screws.
Step 3 Open the door at bottom and top cover.
Step 4 The DIMM1 socket is located on the top side of the
mainboard.
Step 5 Insert the memory module by pushing its gold colored
contact into the socket until the socket's two end latches
locked.
Step 6 Put the bottom & top cover and fasten all screws back onto
the system.
Please refer to the user's manual to get more detail information.
4 9412K600000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 March 2020
Printed in Taiwan
DSP600-211 Series Quick Installation Guide
Packing List
System Unit x1 DDR4 SO-DIMM Memory (Optional)
Quick Installation Guide x1 Antenna (Optional)
US Power Cord x1 or M.2 2230 WiFi/BT module
EU Power Cord x1 (Optional)
84W Adapter x1 M.2 3042 LTE module (Optional)
Foot Pad x4 M.2 2280 SSD (Optional)
Wall Mount Kits x1 (Optional) Remote Switch Cable (Optional)
VESA Mount Kits x1
(Optional)
Do not try to apply power to the system if there is any damaged
components.
Dimensions
