AXIOMTEK OPS300 Series Quick Installation Manual

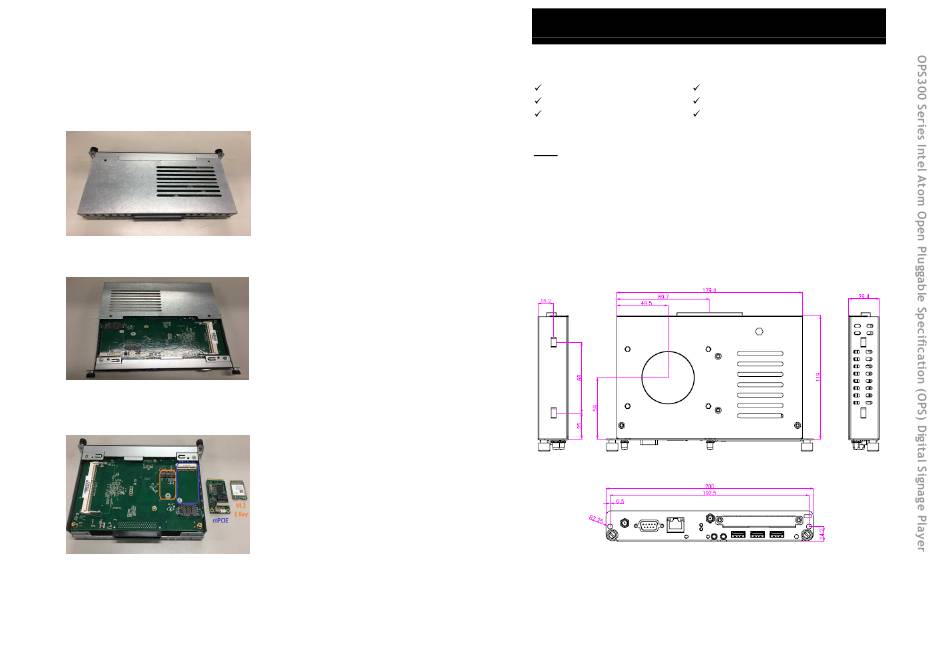

Installing the Mini PCIe & M.2 cards
The OPS300 series provides one Mini card slot & one M.2 E Key to
support mSATA/ wireless LAN cards, please refer to the following
instructions and illustration.
Step 1 Loosen the screws per illustrated.
Step 2 Then open the cover carefully.
Step 3 You can find the position of Mini PCIe & M.2 slot,
please insert it then fasten screw by yourself.
Step 4 Fasten all of screws with bracket to finish installation.
4 9412M300010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 May 2017
Printed in Taiwan
OPS300-310 Quick Installation Guide
Checklist
OPS module x 1 Driver Disc x 1
M4 x 6 screw x 2 M2 x 3 screw x 1
Quick Installation Guide x1 M3 x 4screw x 1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information CD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.
Dimensions
9412M300010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A1 May 2017
Printed in Taiwan
1
