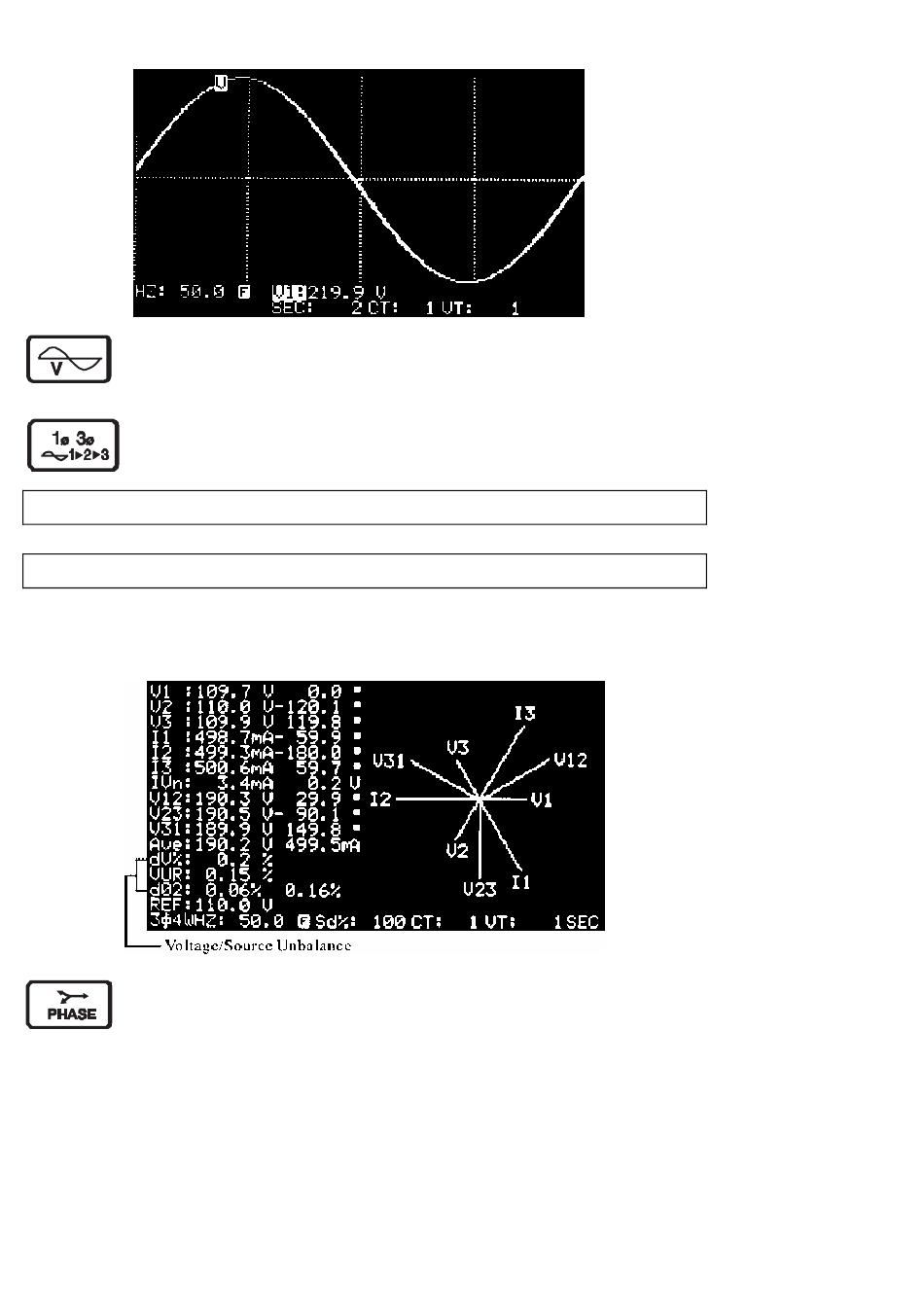

Waveform for Voltage Only
Press this button to display the voltage waveform only. The true RMS value of voltage will
be displayed at the bottom of the LCD.
Press this button to select V1, V2, or V3.
NOTE: The triggering point is the zero crossing point of V1 for V2 and V3.
NOTE: In the waveform mode, one period/cycle of 1024 data points is displayed.
Graphic Phase Diagram
Press this button to display the phase diagram.
The voltage and current signals are displayed in phase format (magnitude, angle).
V1 is the reference. The V1 angle is always 0 degrees.
