Press the SETUP button several times until the VT symbol is highlighted.
Press the ▲ or ▼ button to increment or decrement the RATIO specified by the VT.
h.
i.
All 35 system parameters will be shown in the LCD
For a description of each parameter, refer to XIV. NOMENCLATURE.

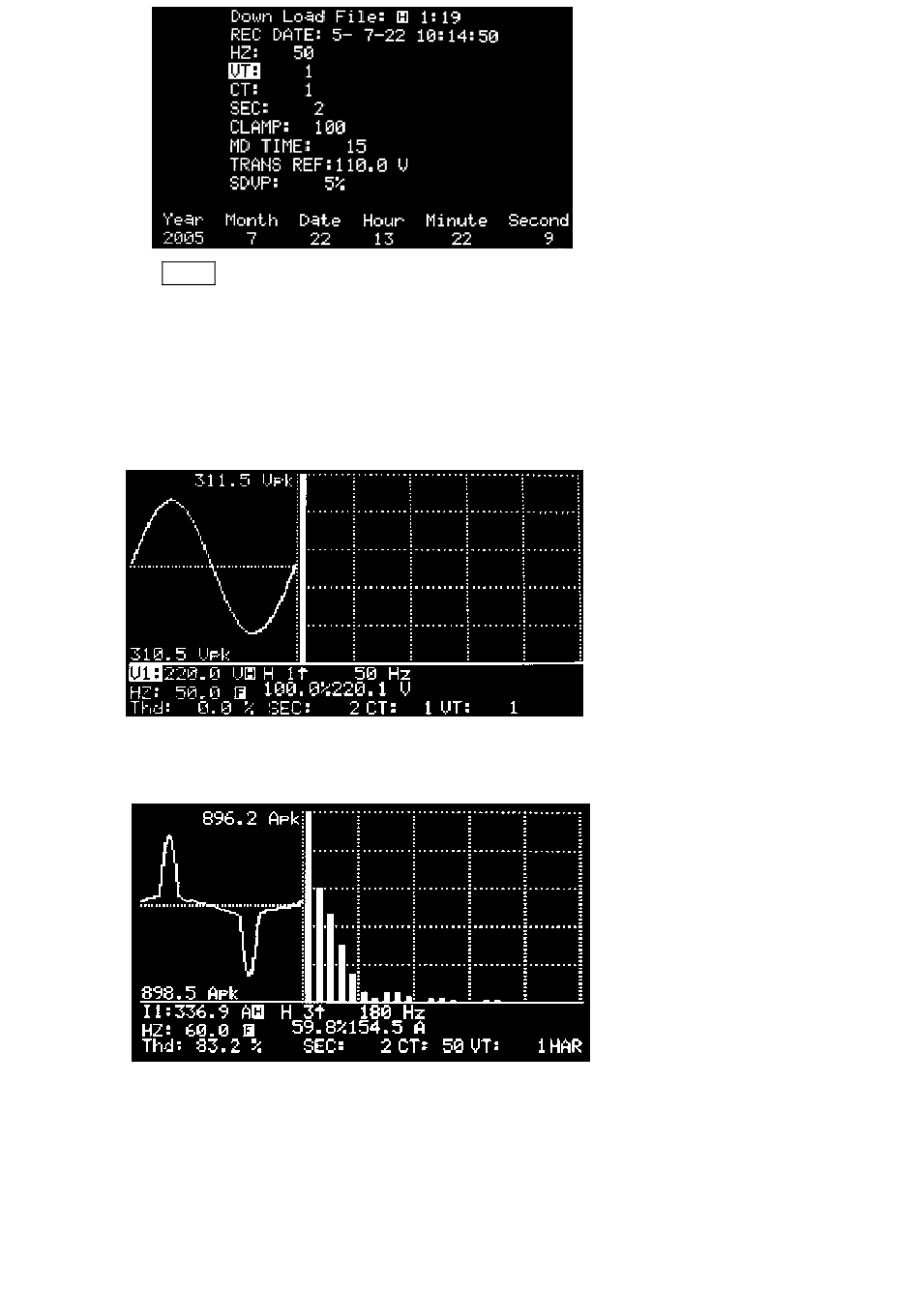

Harmonic Analysis of Voltage or Current
(Normal Voltage without Distortion and Harmonics)
a. Setup the analyzer for measurement of any power system (3P4W, 3P3W, 1P2W, or 1P3W). To view
(Distorted Current with Harmonics)
16
382095 V4.1 7/06
