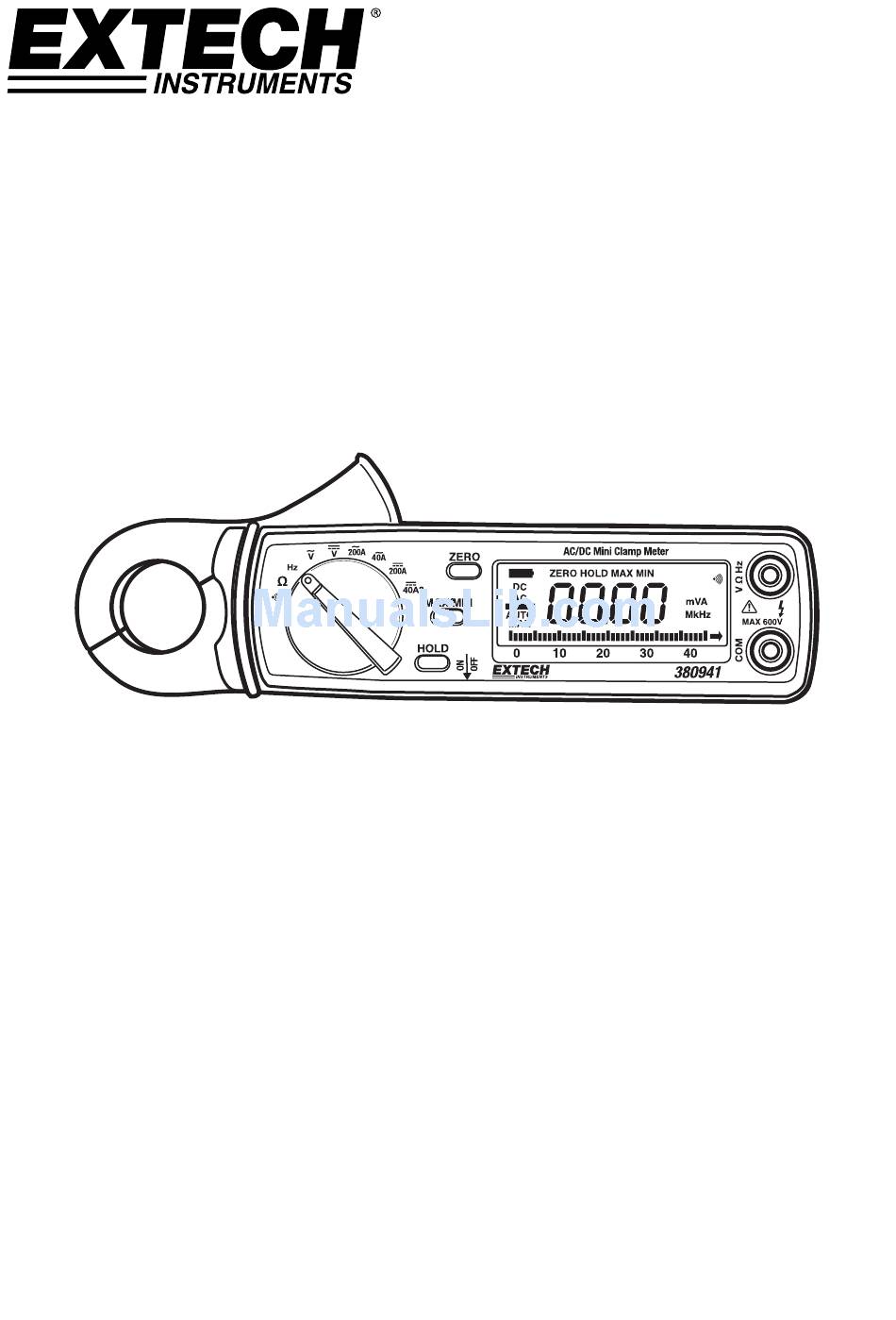

- Page 1 User Guide AC/DC Mini Clamp Meter Model 380941...
-
Page 2: Front Panel Description

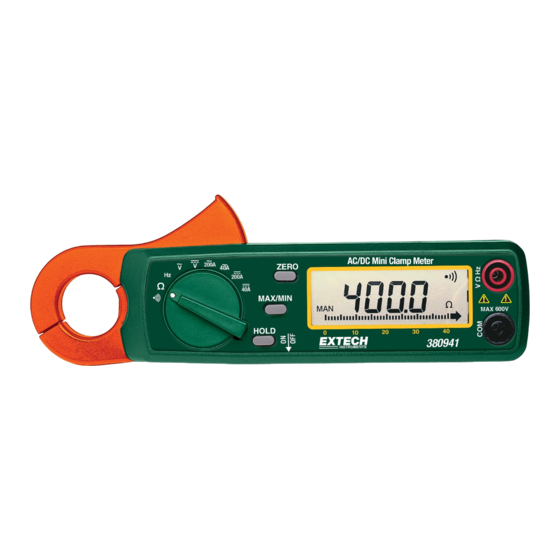

Introduction Congratulations on your purchase of Extech’s DC/AC Clamp Meter. This professional meter, with proper care, will provide years of safe reliable service. Front Panel Description 1. Current sense jaw 6. One-touch DCA zero key 2. Measurement Trigger 7. LCD Display 3. -
Page 3: Operation
Operation AC Current Measurements WARNING: To avoid electric shock, disconnect the test leads from the meter before making current measurements. Set the Function switch to the 40 or 200A AC range. Press the jaw trigger and clamp around, fully enclosing a single conductor. Do not allow a gap between the two halves of the jaw. -
Page 4: Additional Features
Resistance and Continuity Measurements WARNING: To avoid electric shock or damage to the meter, remove power to the circuit under test and discharge all capacitors. Set the Function switch to the position. Insert the test leads to the meter as follows: Red lead to “V,Hz,” terminal; Black lead to the COM input. -
Page 5: Specifications
Specifications General Specifications Display 3-3/4 (4032 count) Digit LCD with 40 segment bargraph Functions ACA, DCA, ACV, DCV, Resistance, Frequency, Continuity Polarity “-“ indicates negative polarity Current sensor Hall effect sensor type Overload indication DCA zero adjust One touch zero key Display rate 3 readings/second (30 readings/second for bargraph) Battery... -
Page 6: Maintenance
Maintenance Battery Replacement When the low battery symbol appears on the LCD the batteries must be replaced. Turn the meter off and remove the rear battery compartment screw. Remove the battery compartment cover and replace the two 1.5V AA cells. Replace the compartment cover and secure the screw.
